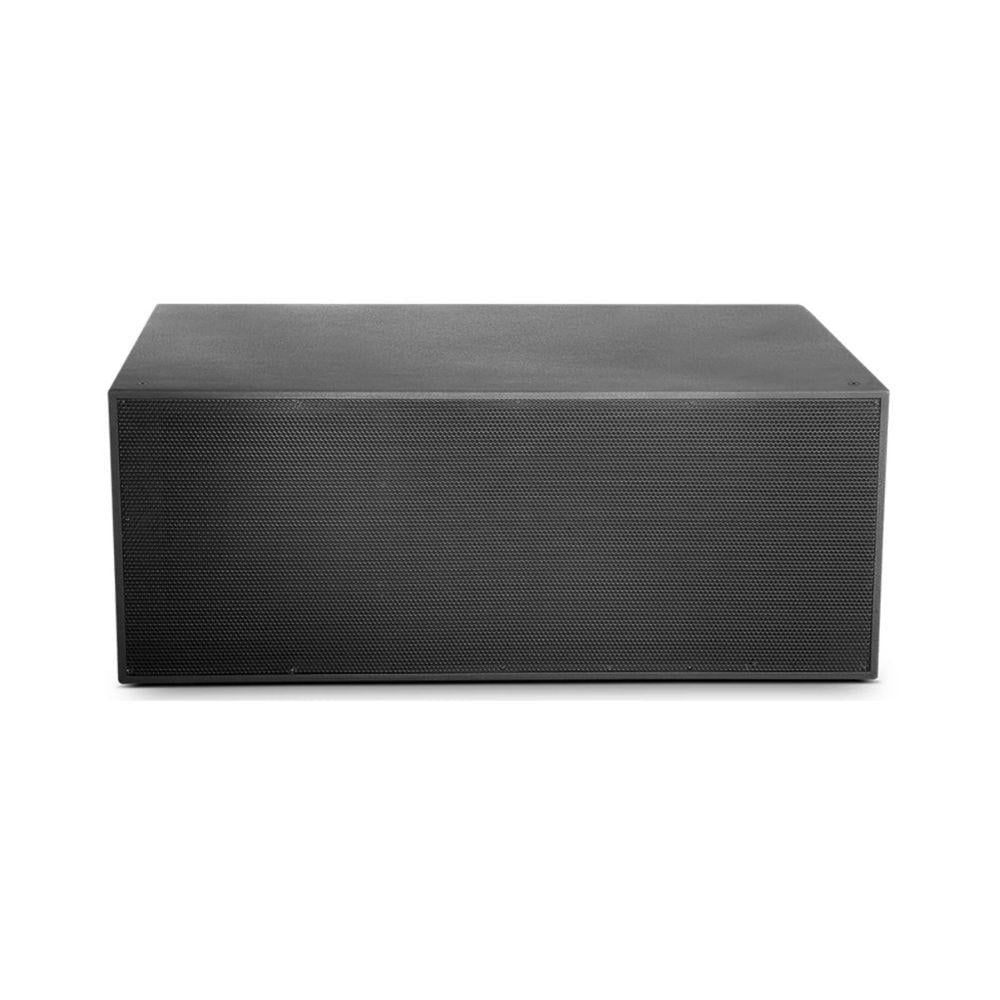

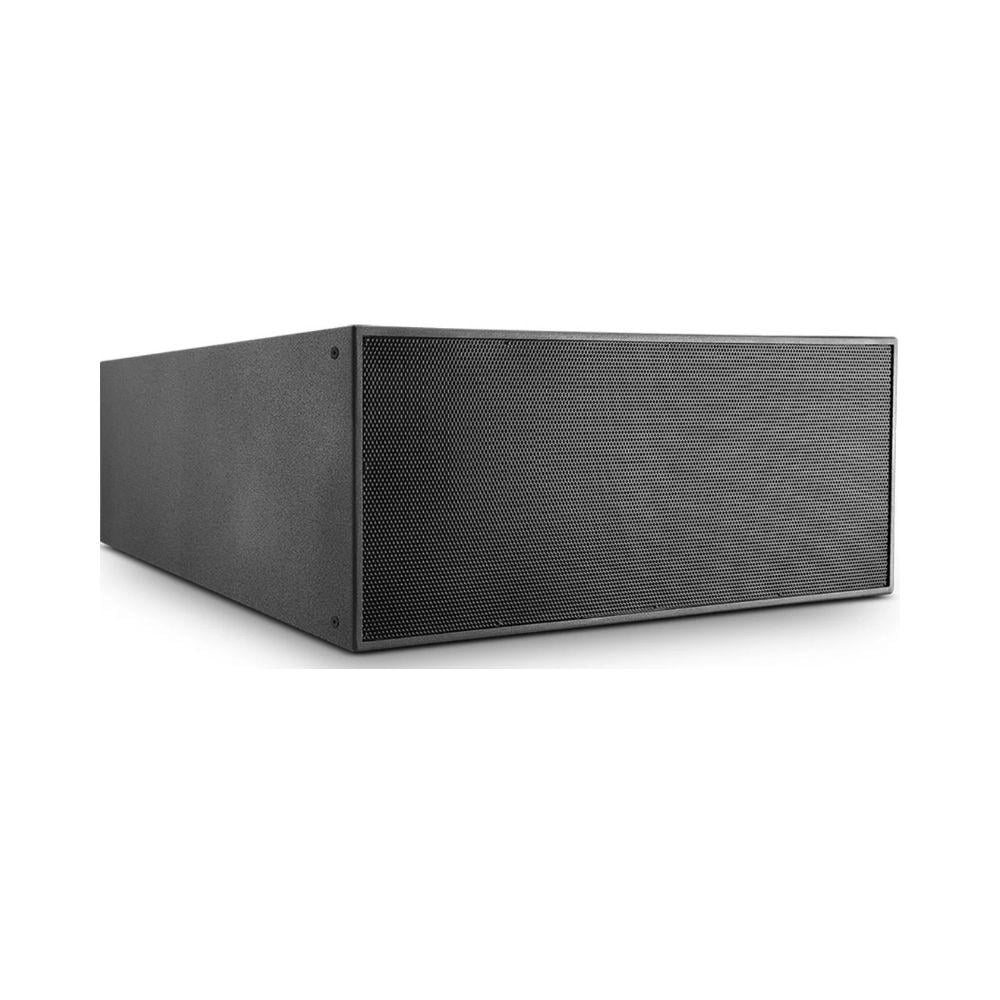

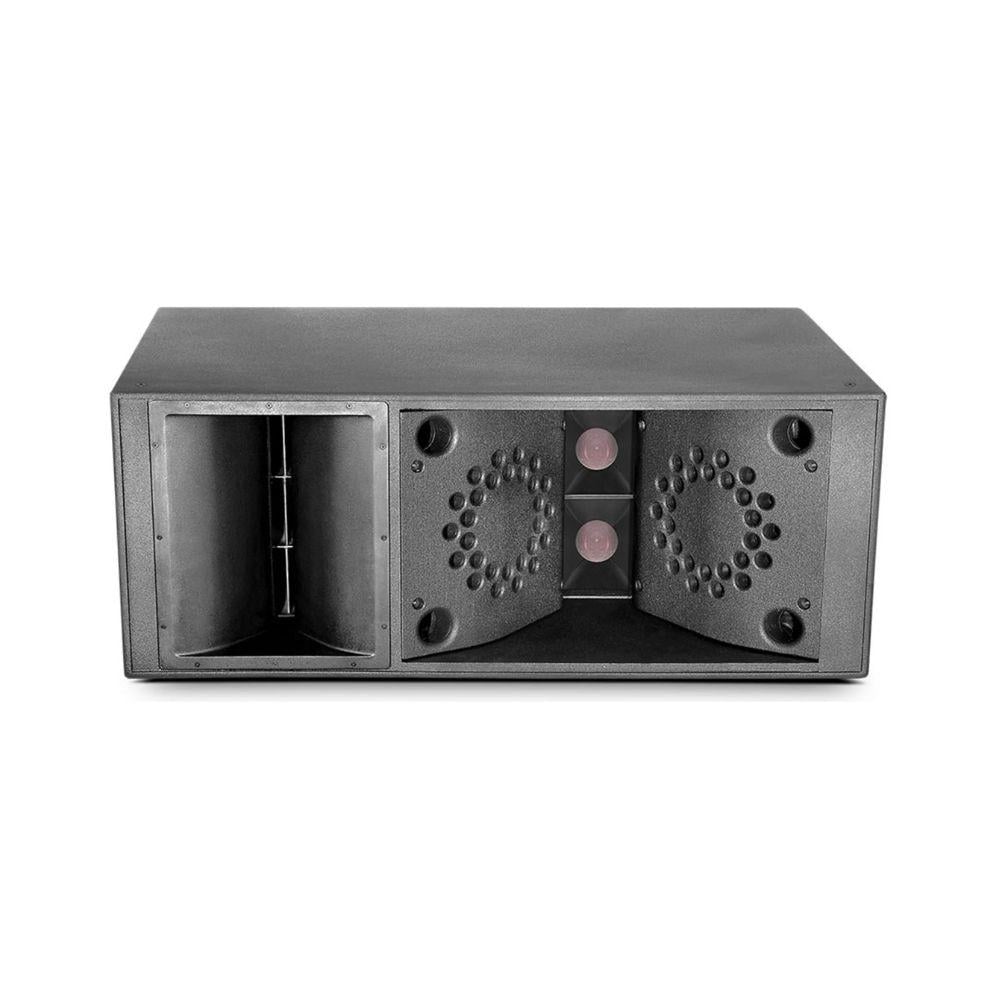

JBL VLA901i 1600W 3-way Line Array speaker with 90° coverage for professional wide-range sound distribution
- The JBL VLA901i large speakers are among the most powerful Line Array systems designed to deliver stunning sound performance and wide horizontal coverage of up to 90 degrees, making them ideal for fixed installations in stadiums, outdoor theaters, and public squares.
- This speaker belongs to JBL’s Variable Line Array (VLA Series), known for its ability to transmit sound over long distances with high accuracy and exceptional clarity, even in open environments.
- Thanks to its 3-Way Full Range design, which combines two low-frequency tweeters (15 inches), two mid-frequency tweeters (8 inches), and three high-frequency compression drivers (1.5 inches), the speaker delivers a balanced frequency range that combines depth, power, and precision.
- The VLA901i speaker comes equipped with renowned JBL technologies such as Differential Drive® to reduce weight and increase energy efficiency, and weather-resistant DuraFlex™ coating to give you stable performance even in the toughest environmental conditions.
Technical description:
- The VLA901i large speakers operate with an advanced engineering design specifically for large, fixed installations that require high clarity and all-around coverage.
- The speaker offers a wide 90-degree horizontal sound dispersion to cover large areas without the need for a large number of units, making it ideal for sports facilities and open halls.
- The system uses dual JBL Differential Drive® motors in both the low and mid-frequency sections, while the high-frequency section delivers powerful performance thanks to three high-efficiency neodymium-based JBL 2432H compression motors.
- The frame is constructed from high-quality Baltic birch wood with a scratch- and moisture-resistant exterior coating, and WRC and WRX versions are available to withstand harsh environmental conditions such as high humidity or coastal climates.
Technical specifications:
- Type: 3-Way Full Range Line Array System
- Electrical power (AES):
- LF: 1000W Continuous
- MF: 400W Continuous
- HF: 160W Continuous
- Total maximum power: approximately 1600 watts
- Frequency range (-10 dB): 41 Hz – 20 kHz
- Frequency response (-6 dB): 45 Hz – 19.5 kHz
- Frequency response (-3 dB): 50 Hz – 19.2 kHz
- Horizontal coverage angle: 90° (from 400 Hz to 16 kHz)
- Vertical coverage angle: depends on the size of the arrangement and the number of units.
- Maximum sound pressure (SPL): 146 dB (Preset: Flat)
- Sensitivity (2.83 V at 1 m):
- LF: 99/96 dB
- MF: 106/103 dB
- HF: 106/109 dB
- Nominal impedance: 4 ohms
- LF amplifiers:
- (2) × JBL 2265H – 15-inch – Dual 3-inch Sound Coil – Neodymium – Differential Drive® Technology
- MF amplifiers:
- (2) × JBL 2169H – 8-inch – Dual 3-inch Sound Coil – Neodymium – Differential Drive®
- HF amplifiers:
- (3) × JBL 2432H – 1.5" compression drivers with 1.5" output – 3" voice coil – neodymium magnet
- Material: Double-layered Finnish birch wood (18mm and 16mm) – DuraFlex™ weather-resistant coating
- Environmental options:
- WRC: Resistant to moisture and semi-direct outdoor use
- WRX: Complete protection against weather elements (humidity, salt, high heat)
- Front grille: Zinc-plated perforated steel – transparent, waterproof acoustic foam
- Inputs: Barrier Strip with leak-proof cover and mounting clip
- Environmental rating: MIL-STD 810 | IPx3 (Splash and water resistant)
- Dimensions (height x width x depth):
- 528 × 1346 × 635 mm (20.8 × 53 × 25 inches)
- Net weight: 91.2 kg (201 lbs)
Key features:
- A three-way audio system provides high clarity and accurate response across all frequencies.
- Wide 90° horizontal coverage angle for ideal sound distribution in large spaces.
- Powerful operating power of up to 1600 watts with a high sound pressure of 146 decibels.
- Differential Drive® technology reduces weight and increases performance efficiency.
- Weather-resistant outer casing with IPx3 rating and available with additional protection options WRC and WRX.
- The Line Array design is flexible, expandable, and customizable to suit the space.
- Integrated multi-point suspension system (16 points) for secure and easy installation in fixed installations.
- Heavy-duty DuraFlex™ coating with a protective steel mesh for long-lasting durability.
Product summary:
- The JBL VLA901i speaker combines tremendous sound power and engineering precision in a single design ideal for large fixed installations.
- Thanks to its three-way system and high-quality components, the speaker delivers balanced audio performance that spans from deep low frequencies to clear highs.
- Whether in stadiums, outdoor theaters, or large entertainment venues, the VLA901i ensures superior clarity and uniform sound distribution with dependable performance in all conditions.
Additional features:
- Compatible with the rest of the VLA series headphones to form integrated Line Array systems.
- Multiple paint options to match the design of the space.
- Internal components are protected from rust and moisture.
- A robust suspension system allows for multiple adjustment angles.
- Compatible with Crown DCi DSP amplifiers for intelligent audio control.
Applications used for the product:
- Sports stadiums and major government facilities.
- Outdoor theaters and live festivals.
- Open halls and cultural centers.
- Educational institutions and universities.
- Public advertising systems and professional sound projects.
Summary and final advice:
- If you are looking for professional 1600W Line Array large speakers with 90° horizontal sound coverage to meet the demands of fixed projects or large spaces, the JBL VLA901i is the ideal choice.
- Thanks to its advanced technology and robust construction, the headset ensures stable and consistent audio performance even in the most challenging environments, making it the smart investment for any long-term professional audio project.
Detailed product data (Data Sheet).
