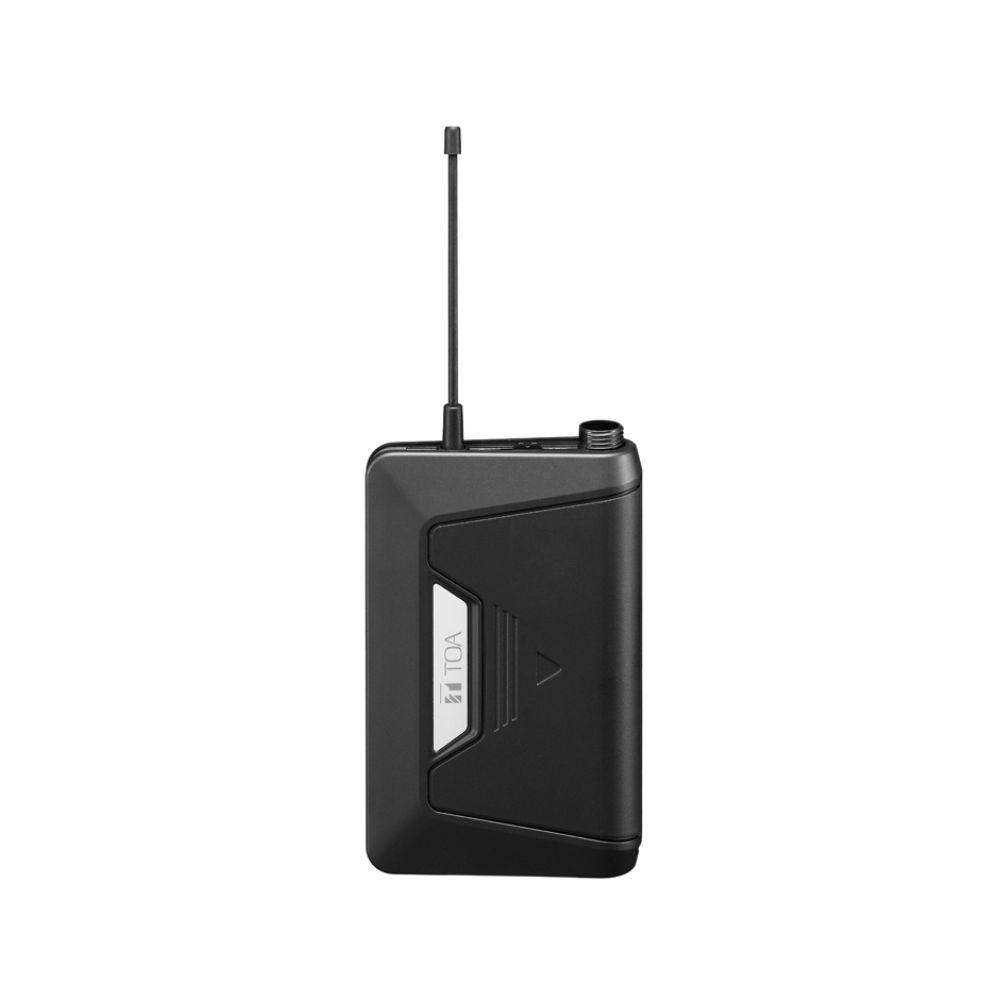

TOA WM-D5300 UHF Digital Radio Transmitter Stable Performance, Advanced Security, and High Flexibility for Professional Audio Applications
- The WM-D5300 Digital Wireless Transmitter is an ideal solution for professional audio applications, delivering high-quality performance in UHF systems with advanced interference-resistant digital transmission technology. Thanks to TOA's unique encryption setting, the wireless transmitter ensures confidentiality and high security against eavesdropping, making it a reliable choice for conferences, meetings, and sensitive events.
- It also features multi-channel selection (up to 160 channels) with ID and transmit power adjustment options, providing great flexibility for operating in diverse environments or even when operating close channels in adjacent locations.
Technical description:
- It adopts FSK digital transmission system to ensure signal stability and sound quality.
- Supports different frequency bands (H1, G1, A2, C4/C7) to suit diverse operating requirements.
- Equipped with advanced features such as ID Selection and encryption settings to ensure security.
- Compact and lightweight practical design (only 90g with battery) with external Lamda/4 whip antenna.
- Powered by a regular AA battery or WB-2000 rechargeable battery, with up to 8 hours of playback time.
Technical specifications:
- Frequency range:
- C4/C7: 798 – 832 MHz
- G1: 606 – 636 MHz
- H1: 576 – 606 MHz
- A2: 694 – 703 MHz
- Modulation type: FSK
- Number of channels: 160 channels (may vary by country).
- Transmission power: less than 50mW.
- Maximum input level: -18dB (low sensitivity) / -28dB (high sensitivity).
- Audio frequency response: 100Hz – 12kHz.
- Antenna: Lamda/4 whip external.
- Identity selection: 10 styles.
- Battery: AA battery or rechargeable WB-2000.
- Battery life: about 8 hours.
- Operating temperature: -10° to +50° C.
- Humidity: 30% – 85% RH (non-condensing).
- Dimensions:
- C4/C7: 62 x 171 x 19 mm
- G1: 62 x 185 x 19 mm
- Weight: 90g (with battery).
- Material: ABS, black coated.
- Included accessories: Storage bag, settings screwdriver.
- Additional options: BC-2000A battery charger, WB-2000-2 battery, YP-M5300 unidirectional lavalier microphone, YP-M5310 omnidirectional lavalier microphone, WH-4000A / WH-4000H headset microphone.
Main features:
- Digital interference-resistant technology ensures signal stability.
- Unique encryption protects against eavesdropping and provides high confidentiality.
- Supports 160 channels for wider coverage and operational flexibility.
- Compact and lightweight design for ease of use.
- Up to 8 hours of battery life for continuous operation.
- Compatible with multiple accessories (lavalier, headset, chargers).
Product Summary:
- The WM-D5300 is an all-in-one digital wireless transmitter that combines high performance with advanced security. With its support for multiple frequency options and encryption features, it offers an ideal solution for audio applications requiring reliability and flexibility, with a compact and lightweight design suitable for mobile and intensive use.
Additional features:
- Storage bag to protect the device during transportation.
- Full support for various TOA wireless audio accessories.
- Battery and charger options to meet extended operation needs.
- Flexible to use with lavalier or headphone microphones for various applications.
Applications used for the product:
- International conferences and official meetings: where the sound needs to be clear and secure against interference and eavesdropping.
- Mosques and places of worship: For reliable audio transmission during sermons and lessons.
- Stage and Concert Performances: Stable, clear sound with flexibility of movement.
- Educational Institutions: Support lectures and presentations with professional audio.
- Multi-venue events: Ability to run converging channels in adjacent spaces without interference.
Summary and final advice:
- If you're looking for a digital wireless transmitter that combines security, performance, and flexibility, the WM -D5300 is the perfect choice. Thanks to its advanced technologies and practical design, it delivers a professional, interference-free audio experience with complete reliability in a variety of environments.
