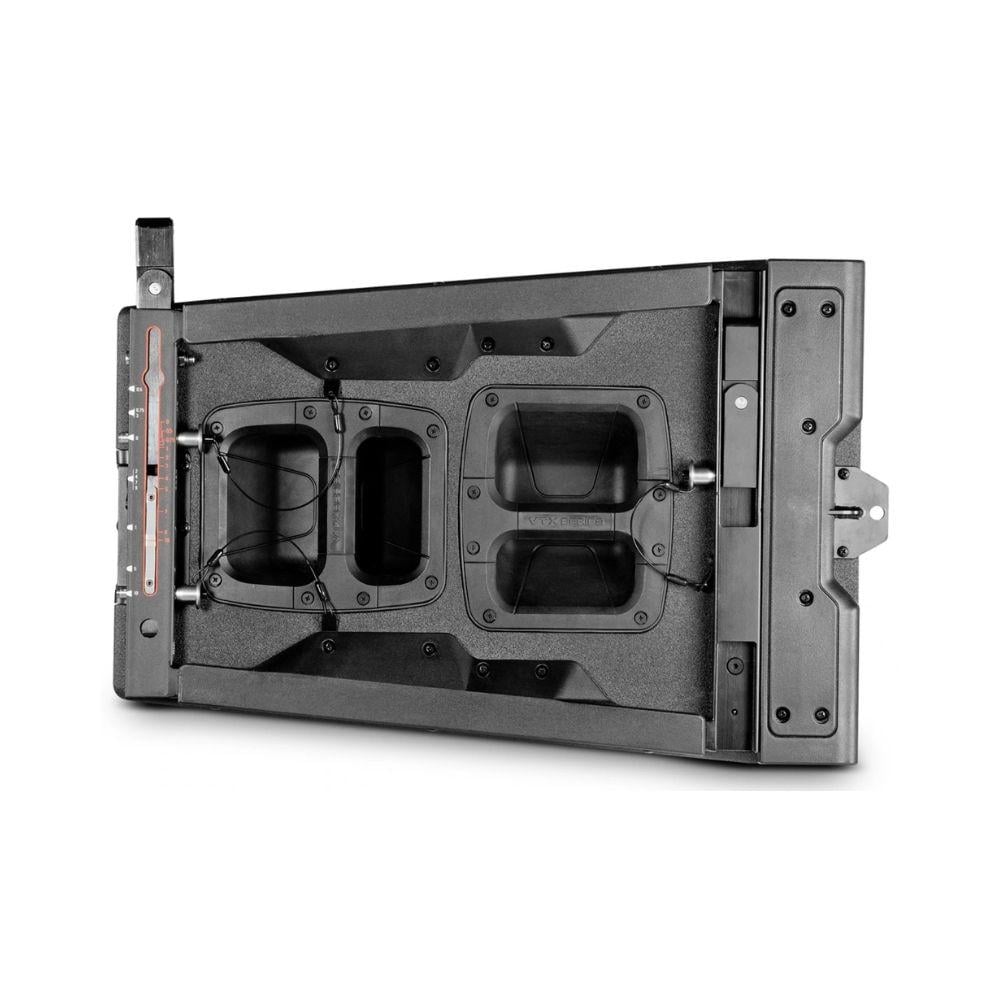

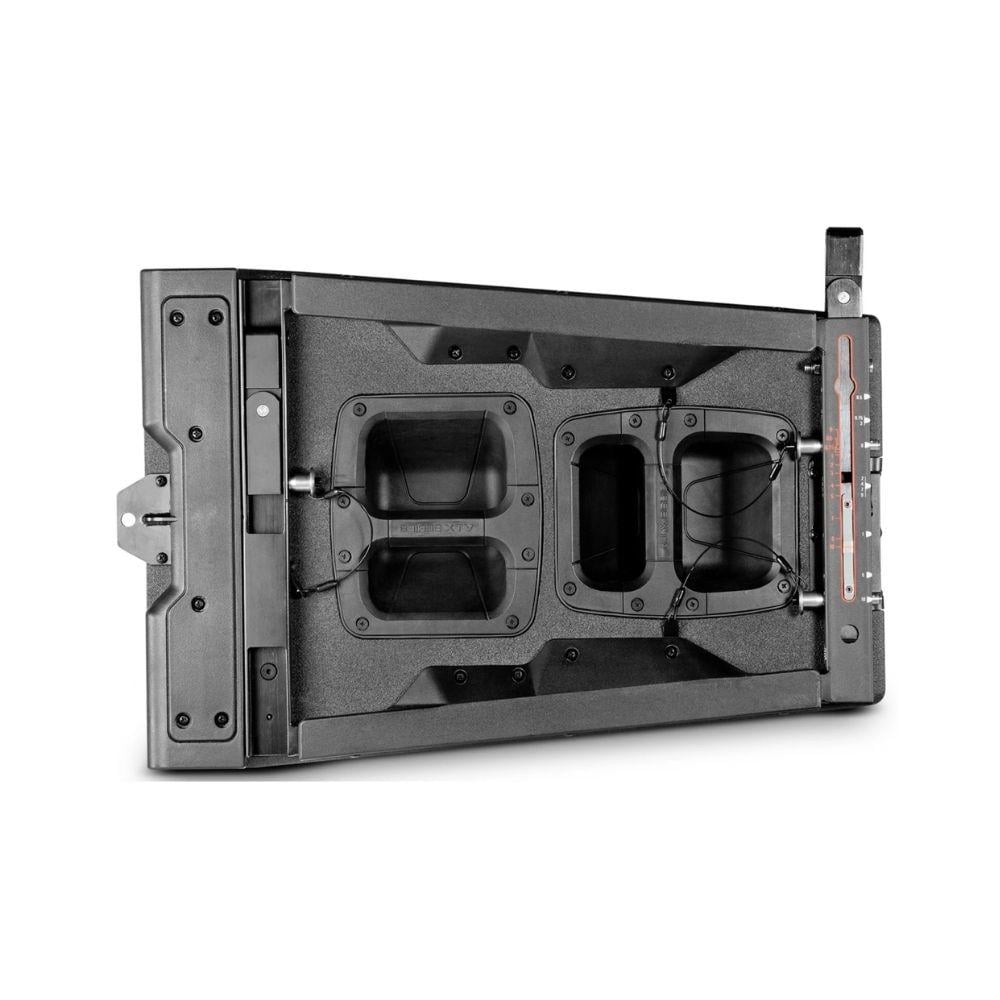

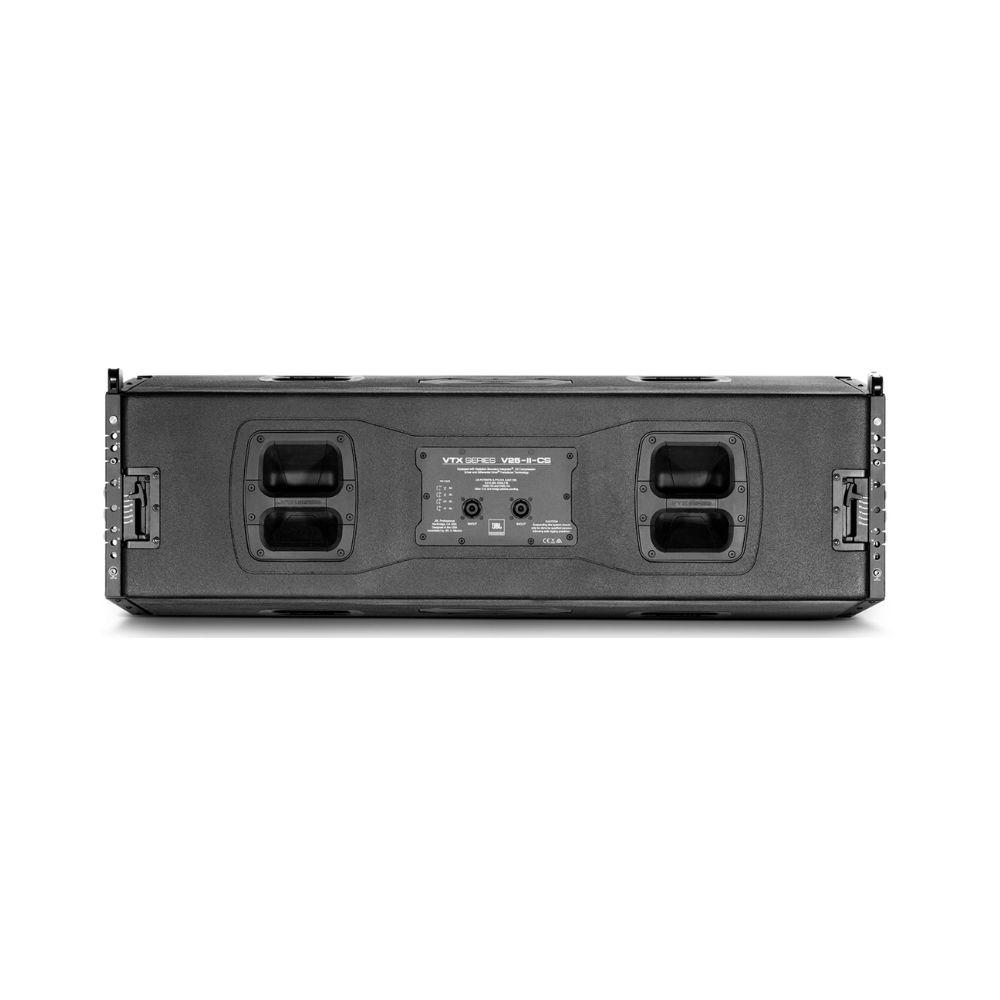

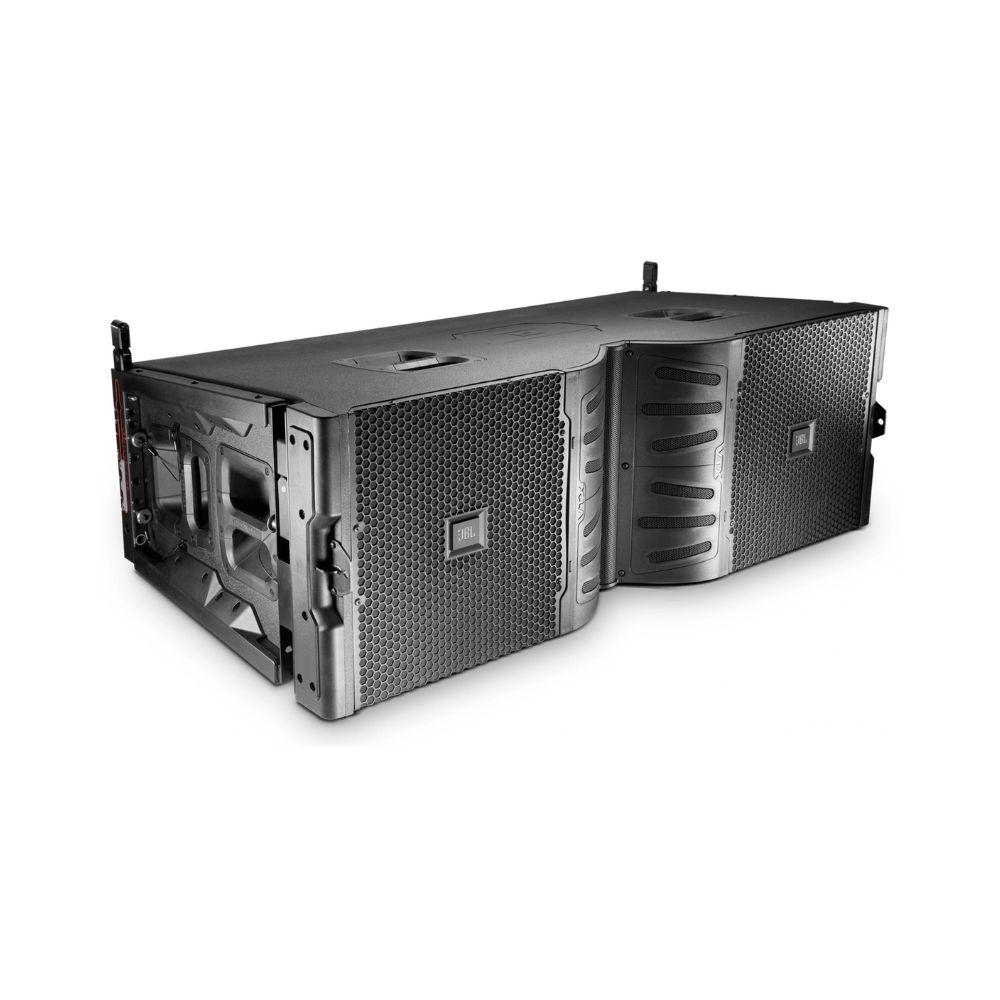

JBL VTX V25-II-CS 4000W 3-way Line Array speakers with compression suspension for stunning sound coverage and exceptional performance
- It is considered The JBL VTX V25-II-CS party speakers are the latest evolution in professional audio systems from the VTX series, combining tremendous power, high-fidelity sound, and superior ease of installation thanks to the innovative Compression Suspension System (CS).
- It was specifically designed to deliver a powerful, consistent sound that covers long distances without losing detail, making it the ideal choice for large shows, theaters, festivals, and huge event halls.

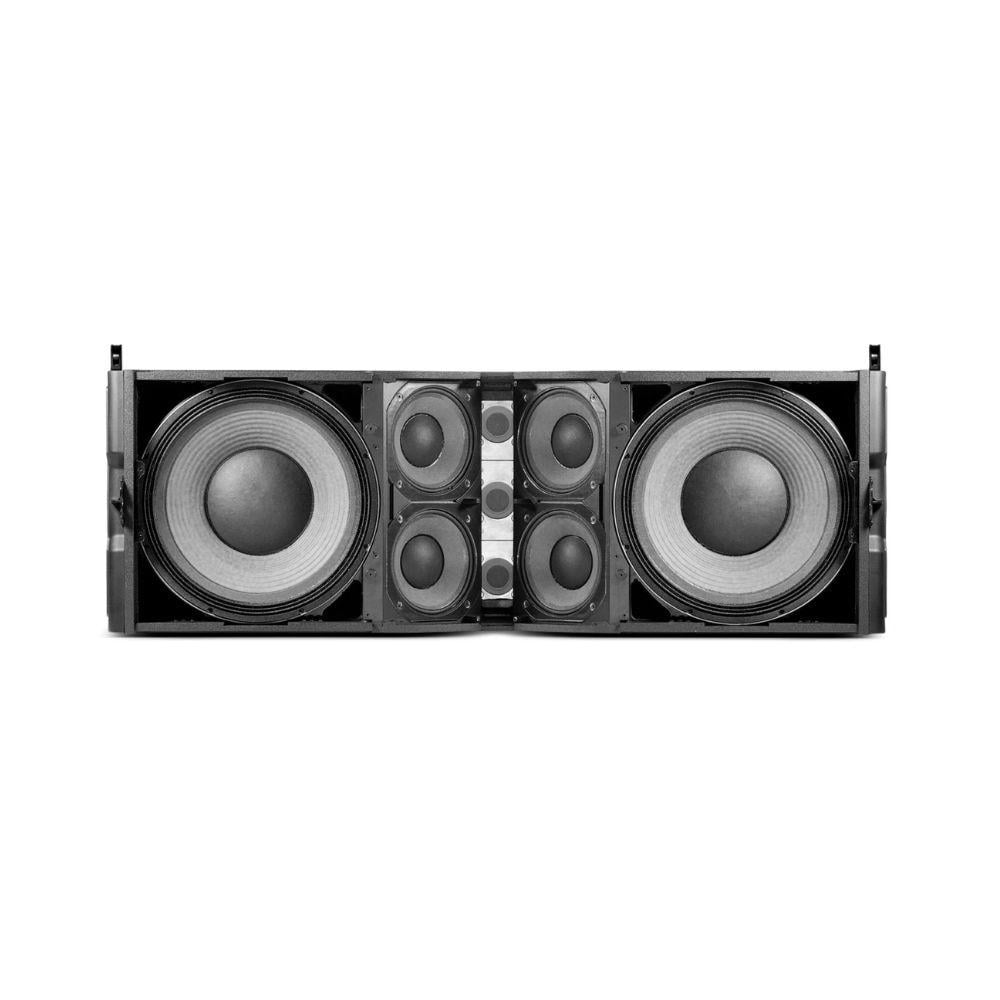

- Large speakers feature a 3-way line array design that includes:
- Two 15-inch speakers with Differential Drive® technology for powerful bass frequencies,
- Four 8-inch speakers for mid-range frequencies,
- And three D2 Dual Diaphragm Compression Drivers for high frequencies.
- It is also equipped with the fourth generation of HF Waveguide technology to improve sound propagation and high-precision sound wave control, making it capable of covering large theaters without any frequency distortion.
Technical description:
- The VTX V25-II-CS party speakers come as a direct improvement on the V25-II release, with the addition of an all-new Compression Suspension System that facilitates vertical mounting and increases the stability of the speaker array during suspension.
- It is integrated to work in perfect harmony with Crown I-Tech HD amplifiers, BSS OmniDriveHD V5 Processing, and JBL HiQnet Performance Manager™ software for intelligent control and rapid system configuration.
- Operating system:
- Line Array 3-Way High-Directivity.
- Audio components:
- LF (Bass): 2 x 15 inch (JBL 2267H Differential Drive®).
- MF (Mid-Frequency): 4 x 8 inch (JBL 2168H Mid-Frequency).
- HF (High): 3 x D2 Dual Diaphragm Dual Voice Coil Compression Driver.
- Control and processing:
- Crown Audio I-Tech HD amplifiers with V5 DSP processing.
- Full support for HiQnet Performance Manager™ software for system management and audio distribution control.
- Structure:
- A combination of Finnish birch wood and a cast aluminum front panel to reduce weight and improve cooling.
- Coated with DuraFlex™ weather and scratch resistant paint.
Technical specifications:
- Type: Three-way Line Array system
- Electrical power: 4000 watts (2000 x 2)
- Frequency range (-10 dB): 35 Hz – 18 kHz
- Horizontal coverage (-6 dB): 90° (200 Hz – 16 kHz)
- Maximum sound pressure (SPL):
- LF: 141 dB
- MF: 140.5 dB
- HF: 149.5 dB
- Amplifiers: Crown Audio I-Tech HD
- Nominal impedance:
- LF: 2 x 8 ohms
- MF: 8 ohms
- HF: 8 ohms
- Audio components:
- LF: (2) JBL 2267H – 15 inch
- MF: (4) JBL 2168H – 8 inch
- HF: (3) JBL 2430K D2 Dual Diaphragm
- Structure:
- cast aluminum front panel
- Finnish birch wood frame with black DuraFlex™ coating
- Unit conversion angles: 0°, 0.5°, 0.75°, 1°, 2°, 3°, 4°, 5°, 6°, 9°
- Dimensions (height x width x depth):
- 414 × 1223 × 614 mm
- (16.3 × 48.2 × 24.2 inches)
- Net weight: 82.6 kg (182 lbs)
Key features:
- A new compression suspension system for faster and safer assembly.
- Waveguide 4th generation for long-range coverage and exceptional sound clarity.
- Differential Drive® technology to reduce weight and increase cooling efficiency.
- D2 Dual Diaphragm amplifiers deliver stunning clarity at high frequencies.
- Aluminum front structure reduces weight and vibrations.
- High operating efficiency with Crown I-Tech HD amplifiers and V5 DSP processing.
- A 90° coverage angle is ideal for uniform distribution in large spaces.
- DuraFlex™ coating is resistant to scratches and heavy use.
- Reliable performance in both indoor and outdoor environments.
Product summary:
- The JBL VTX V25-II-CS large speakers combine advanced engineering design with superior sound performance, making them the ideal solution for large professional audio systems.
- Thanks to the new pressure suspension system, it can be installed easily and safely, while maintaining a uniform sound distribution in all directions.
- It is designed to deliver a powerful and deep sound, suitable for large parties, festivals, and corporate events that require high accuracy and consistency in performance.
Additional features:
- Compatible with cardioid systems when combined with VTX Subwoofer units.
- The ability to precisely adjust angles to achieve optimal sound propagation.
- Designed for large vertical displays with enhanced accessories for rapid vertical transport.
- The V5 DSP processing allows for precise adjustment of each bandwidth.
- Reliable performance even in intensive long-term use.
- Designed to reduce vertical height and improve horizontal spread.
Applications used for the product:
- Massive live music performances and festivals.
- Sports stadiums and large event halls.
- Professional theaters and opera houses.
- Fixed installations in large acoustic halls.
- Audio rental companies and large events.
Summary and final advice:
- If you are looking for a 4000-watt, three-way Line Array party speaker system that combines top-tier audio performance with the latest acoustic suspension and diffusion technologies, the JBL VTX V25-II-CS large speakers are your ideal choice.
- Thanks to its sophisticated design and advanced technology, this headset offers an exceptional audio experience that combines deep bass, high clarity, and wide distribution.
