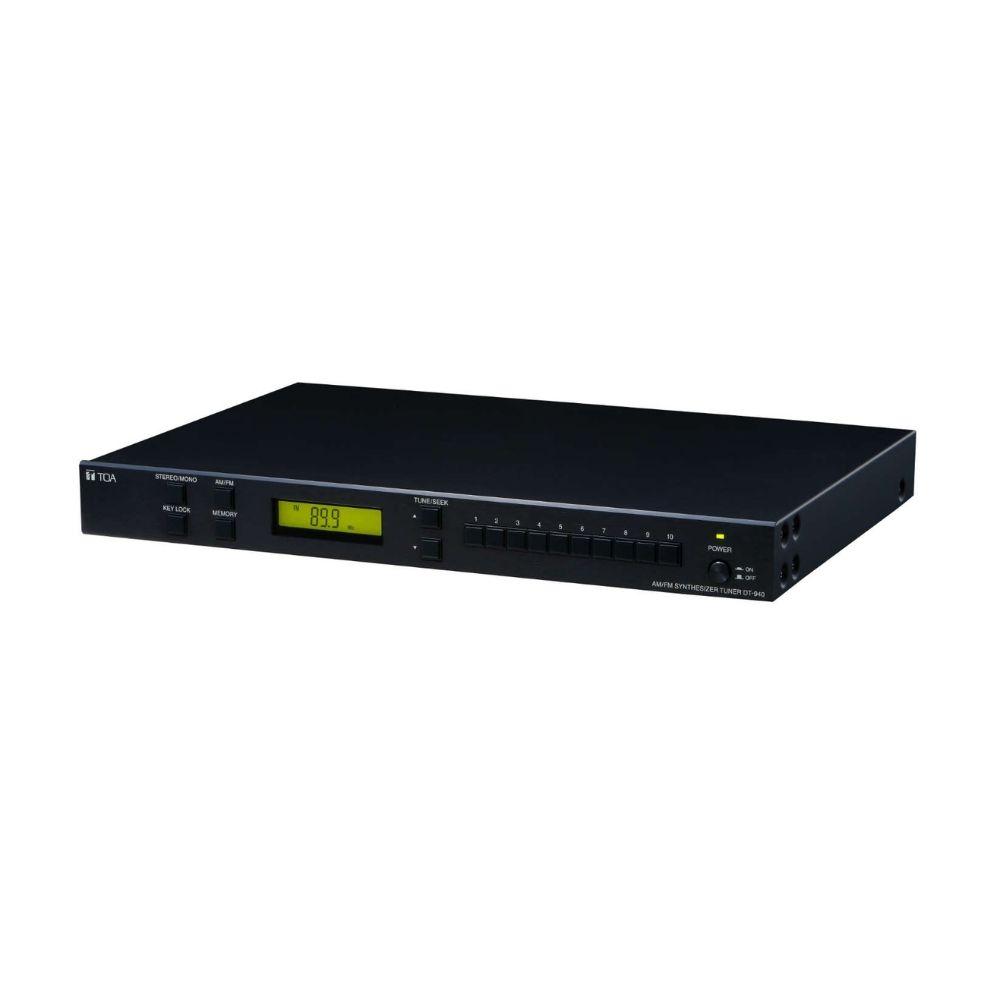

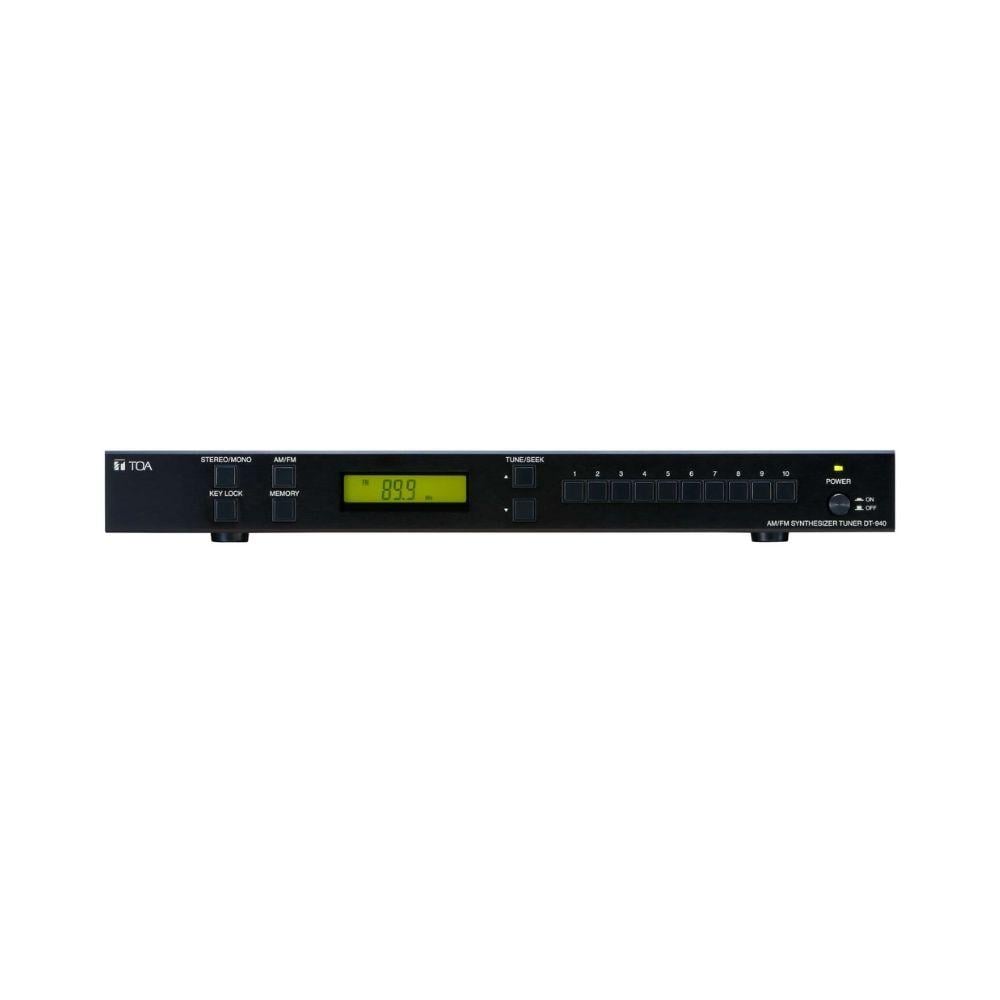

DT-940 AM/FM Radio Receiver with Precision Digital Control and Memory Storage for Multiple Stations with Professional TOA Design
- The DT-940 is a professional radio receiver that supports high-quality AM and FM radio reception. It offers exceptional flexibility in selecting your favorite stations via a 20-channel memory for both AM and FM. It features automatic station scanning and precise manual tuning, and displays all information on a multi-function digital display. With a stereo output, it can be used in professional audio systems and can be easily mounted on standard equipment racks using an optional accessory. This radio receiver is the ideal choice for anyone seeking stable, high-quality radio reception for commercial, professional, or institutional applications.
Technical description:
- The DT-940 radio receiver uses frequency synthesized digital tuning technology, providing high-accuracy frequency reception. It features a digital display that clearly displays station information and settings, and offers stereo and mono audio outputs to suit a variety of operating systems. It also comes equipped with a wired FM antenna and an AM loop antenna, with options for attaching external antennas if needed.
Technical specifications:
- Power supply: 120V AC, 60Hz (via supplied adapter)
- Power consumption: 60 mA
- Received frequency range:
- FM: 87.9 to 107.9 MHz (100 kHz steps)
- AM: 520 to 1710 kHz (10 kHz steps)
- Antenna input:
- FM: F connector, 75 ohm unbalanced
- AM: Loop antenna (balanced) or external (unbalanced), pressure-coupled

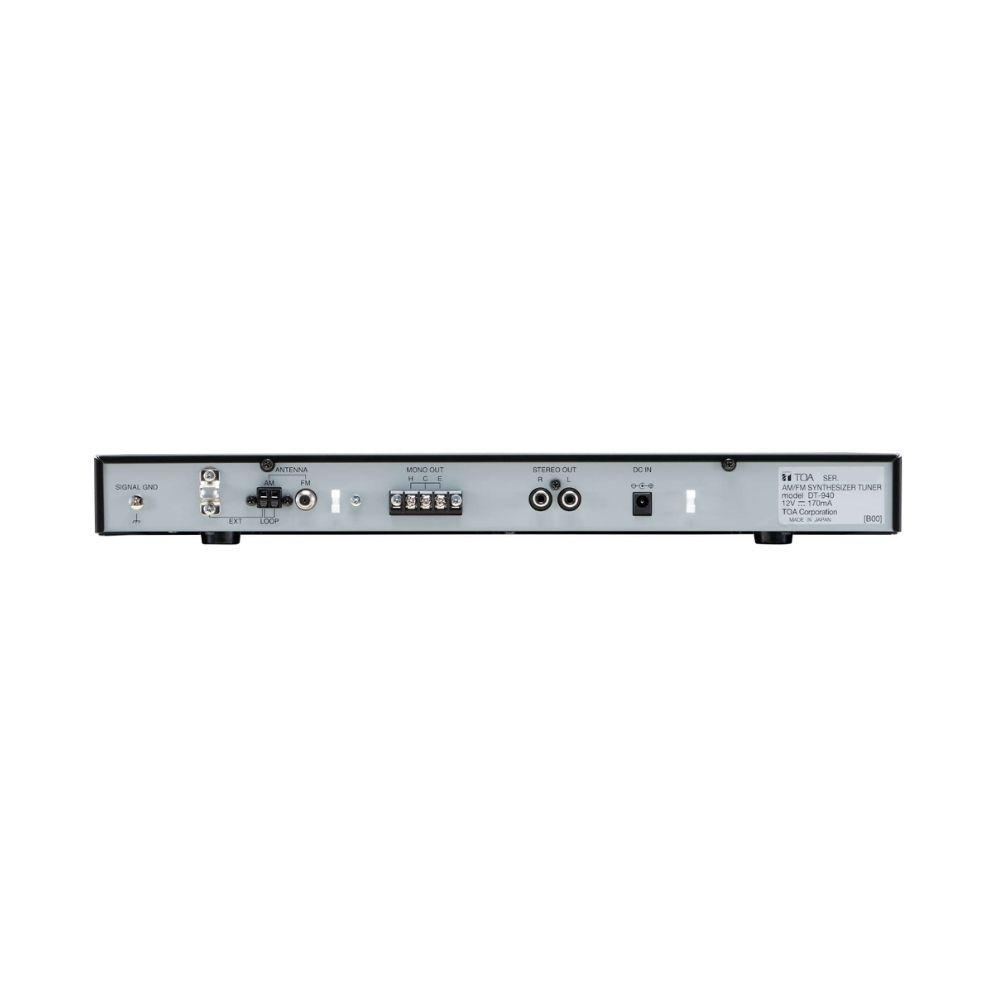

- Audio outputs:
- Stereo: -15 dB, 10 kΩ, unbalanced (RCA)
- Mono: -10dB, 10kΩ, Balanced (M3 screw terminal)
- Number of saved channels: 20 AM channels and 20 FM channels
- Operating temperature: 0 to 40°C
- Operating Humidity: Up to 90% non-condensing
- Dimensions: Width 420 mm x Height 50.8 mm x Depth 295.2 mm
- Weight: 2.9 kg
- Material and finish:
- Front panel: black aluminum with hairline finish
- Frame: Black pre-painted steel plate
Main features:
- Ability to store 20 stations for both FM and AM
- Digital tuning with precision frequency tuning technology
- Clear and easy-to-read digital display interface
- Supports high-quality stereo sound output
- Front panel lock feature to prevent unauthorized modification
- Antennas included and ready to use
- Fully supportable for mounting in EIA standard audio equipment rack
Product Summary:
- The DT-940 radio receiver combines high performance with ease of use, making it ideal for environments requiring a reliable, high-quality radio system. Whether used in meeting rooms, mosques, educational centers, or stores, it delivers clear, smooth audio with excellent operational flexibility.
Additional features:
- Automatic station search and storage feature
- Easily switch between manual and automatic tuning
- Compatible with fixed installations using MB-15B racks (optional)
- Sleek metal design that lasts in professional environments
Applications used for the product:
- Internal radio for mosques: broadcasting religious stations live with clear audio quality.
- Schools and educational institutions: to provide radio broadcasts of information and alerts
- Stores and malls: To broadcast background music or audio alerts
- Offices and Institutions: As a fixed audio source for news or music stations
- Professional audio systems: for integration into theater or conference systems
Summary and final advice:
If you're looking for a professional radio receiver that combines performance, reliability, and precise tuning, the DT-940 radio receiver is the right choice. Whether for institutional or commercial use, this device offers optimal flexibility, ease of operation, and clear sound quality, making it a powerful addition to any integrated audio system.
