JBL BASF 15-inch Professional Speaker with 350W Power and a 90x50° Coverage Angle for Balanced and Wide Sound Distribution for Large Projects, Model AM5215/95

JBL BASF 15-inch Professional Speaker with 350W Power and a 90x50° Coverage Angle for Balanced and Wide Sound Distribution for Large Projects, Model AM5215/95

• The JBL AM5215/95 large speakers represent the pinnacle of audio performance in the mid-range professional speaker category, combining power, clarity, and wide coverage in a sophisticated engineering design.
• This speaker belongs to the AE (Application Engineered Series) designed for professional audio applications in theaters, auditoriums, and entertainment venues.

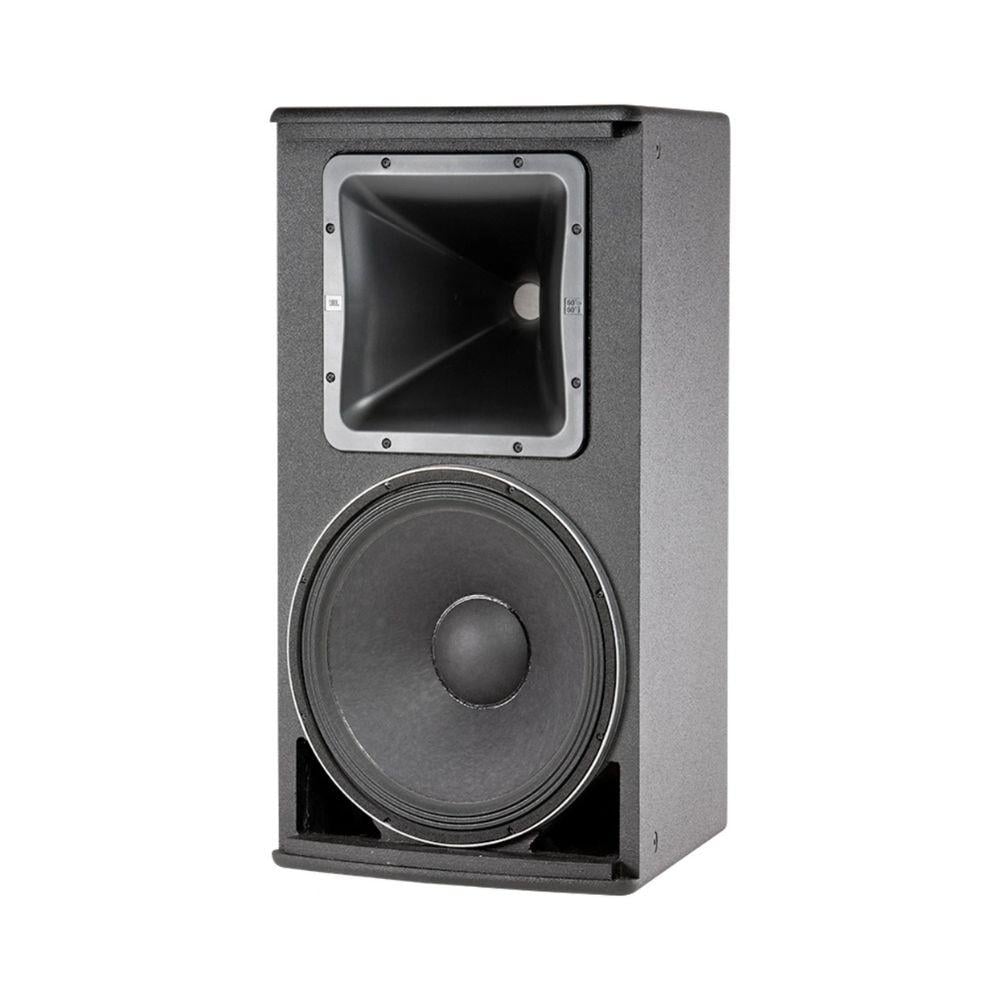

• The large speaker contains a 15-inch (380 mm) dual-coil, magnet LF Differential Drive® driver that delivers impressive low-frequency performance, as well as a 1.5-inch JBL 2408H-1 HF driver with an exit hole that delivers clear, smooth sound in high frequencies.
• It features a 90° x 50° PT™ Progressive Transition Waveguide to provide wide, balanced coverage with perfect acoustic directional control.
• The speaker operates at 350W program power and 1400W peak power, making it ideal for covering large spaces with consistent performance and rich, detailed sound.

Technical description:

• The JBL AM5215/95 large speakers rely on advanced engineering that achieves a perfect balance between power and acoustic accuracy.
• The LF Differential Drive® is designed for high efficiency to reduce distortion and heat during operation, while the JBL 2408H-1 HF driver delivers crisp, clear, and distinct audio details.
• The PT™ 90x50 degree angled acoustic waveguide provides wide coverage ideal for installations that require uniform sound in multiple areas, whether in vertical or horizontal installation, thanks to its swivel capability.
• The speaker also supports Bi-Amp and Passive operating modes to provide complete flexibility in integration with various audio systems.
• The frame is made of 16mm thick multi-layered birch wood coated with a scratch- and moisture-resistant DuraFlex™ coating, ensuring durable performance and longevity in intensive use.

Technical specifications:

• Type: Professional 2-Way Full-Range Loudspeaker
• Electrical power:
• 350W program
• 1400 watts peak
• Frequency range (-10 dB): 35 Hz – 20 kHz
• Frequency response (±3 dB): 41 Hz – 18 kHz
• Coverage angle: 90° × 50° (H × V)
• Operating system: Bi-Amp / Passive (switchable)
• Crossover: at 2 kHz
• LF motor:
• JBL 265H-1 Differential Drive®
• 15-inch (380 mm) size
• Dual 2-inch (50.8 mm) audio coil
• Power: 500 watts (2000 watts peak)
• HF motor:
• JBL 2408H-1
• 1.5 inch (38 mm) exit hole
• 1.5 inch (38 mm) audio coil
• Power: 40W (160W peak)
• Allergies:
• 99 dB (LF)
• 115 dB (HF)
• 98 decibels in passive mode
• Maximum sound pressure (SPL):
• LF: 125 dB continuous
• HF: 131 dB continuous
• Nominal impedance: 8 ohms
• Material: 16mm thick birch plywood (11 layers)
• Paint: Black DuraFlex™ (available in white upon request)

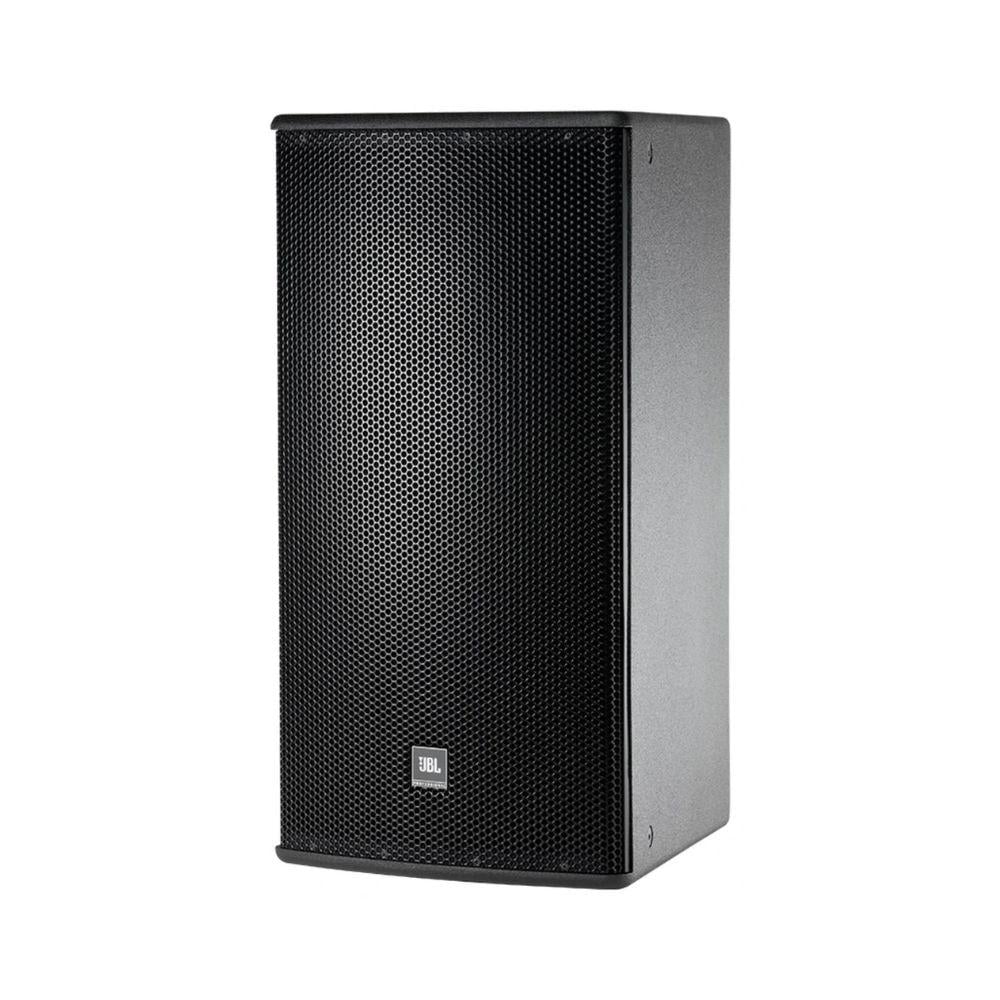

• Mesh: 14-gauge perforated steel with a transparent acoustic foam lining
• Dimensions (height x width x depth):
• 783 × 422 × 504 mm (30.8 × 16.6 × 19.85 inches)
• Net weight: 25 kg (55 lbs)
• Attachment points: 15 M10 points (top, bottom, sides, back)
• Environmental standards: Moisture resistant to IP-x3 standard according to IEC529
• Optional accessories: M10 x 35 mm Eyebolts + U-Bracket MTU-1

Key features:

• A wide 90° x 50° coverage angle provides a perfect balance between spread and accuracy.
• Differential Drive® technology provides stable performance with excellent heat dissipation.
• Rotatable PT™ voice guide for flexible mounting in any direction.
• Dual Bi-Amp / Passive operation for greater compatibility with audio systems.
• Trapezoidal geometric design improves sound distribution and reduces reflections.
• DuraFlex™ coating is durable and resistant to environmental factors to ensure longevity.
• Sound pressure up to 131 decibels for powerful performance without distortion.
• Lightweight and durable structure that is easy to install in various acoustic environments.

Product summary:

• It is large headphones The JBL AM5215/95 is the ideal choice for covering large spaces with clear and consistent sound.
• With a 90x50 coverage angle, the speaker gives you excellent sound diffusion with clear directional control, making it ideal for theaters, auditoriums, and multi-purpose facilities.
• Thanks to high manufacturing quality and advanced JBL technologies, it delivers stable performance befitting long-term professional projects.

Additional features:

• Full integration with Crown amplifiers and Harman DSP systems.
• A paintable front grille to match the site's interior design.
• Available in weather-resistant versions WRC and WRX.
• Multiple hanging options for flexible and easy installation.
• High operating efficiency reduces power consumption and maintains sound quality.
• A sophisticated interior design provides a perfect balance between sound ranges.

Applications used for the product:

• Theaters and live performance venues.
• Schools, universities, and educational institutions.
• Sports centers and public facilities.
• Upscale clubs and restaurants.
• Major events and festivals.
• Distributed audio systems and vertical arrays.

Summary and final advice:

• that The JBL AM5215/95 large speakers are a 350W, 15-inch professional speaker that combines wide coverage and sound accuracy to deliver balanced performance in various acoustic environments.
• Thanks to its 90x50 angle and advanced JBL technologies, it is an ideal choice for anyone looking for powerful, clear, and consistent sound in professional projects.

Detailed product data (Data Sheet).
