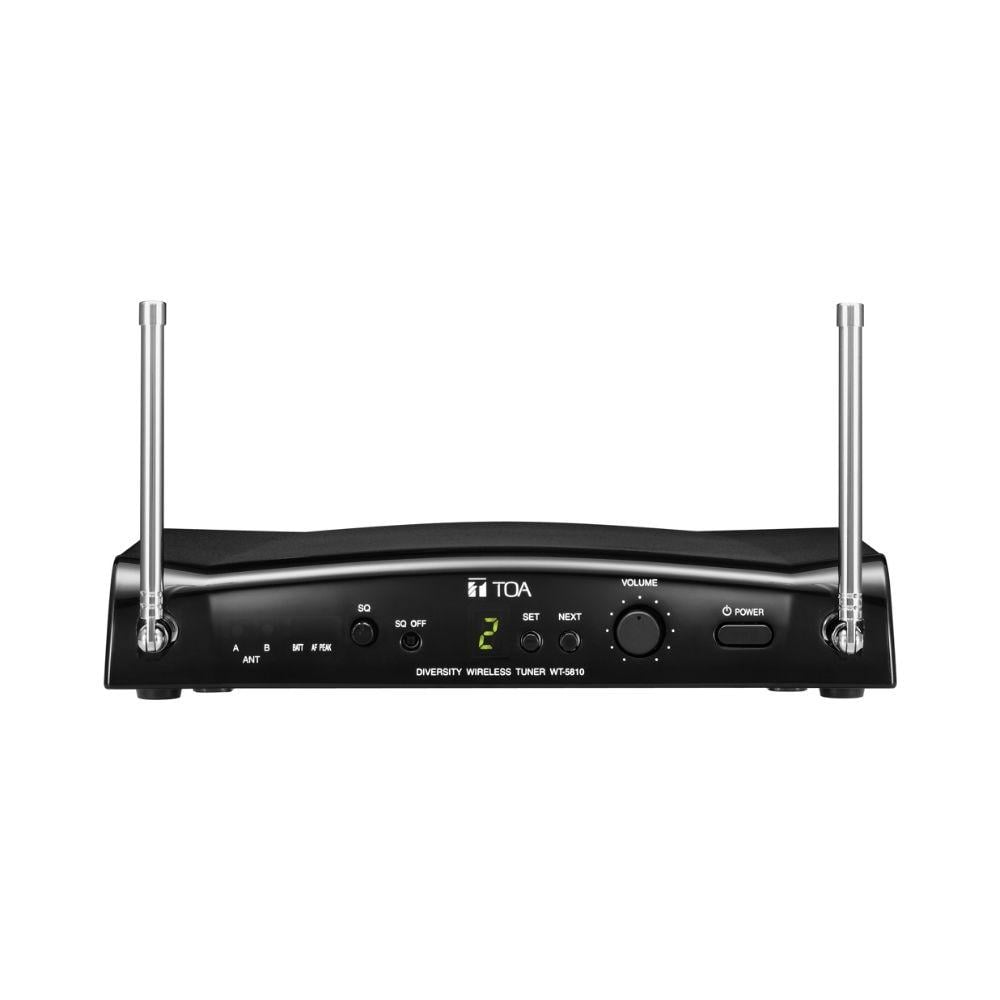

wireless receiver Professional WT-5810 Stable sound quality and advanced UHF technology TOA brand
- Audio The WT-5810 is a high-performance wireless receiver designed for use in the UHF band, providing clear and stable audio for lectures, speeches, and presentations. Thanks to its compact design and space diversity technology, it delivers superior signal stability and minimizes interference. It features 16 selectable channels and offers advanced features such as automatic audio mixing, channel detection, and Squillech's intelligent noise and signal loss protection.
- Whether used professionally at conferences, in mosques, or in training halls, this device offers exceptional performance and ease of use thanks to its smart indicators and diverse inputs.
Technical description:

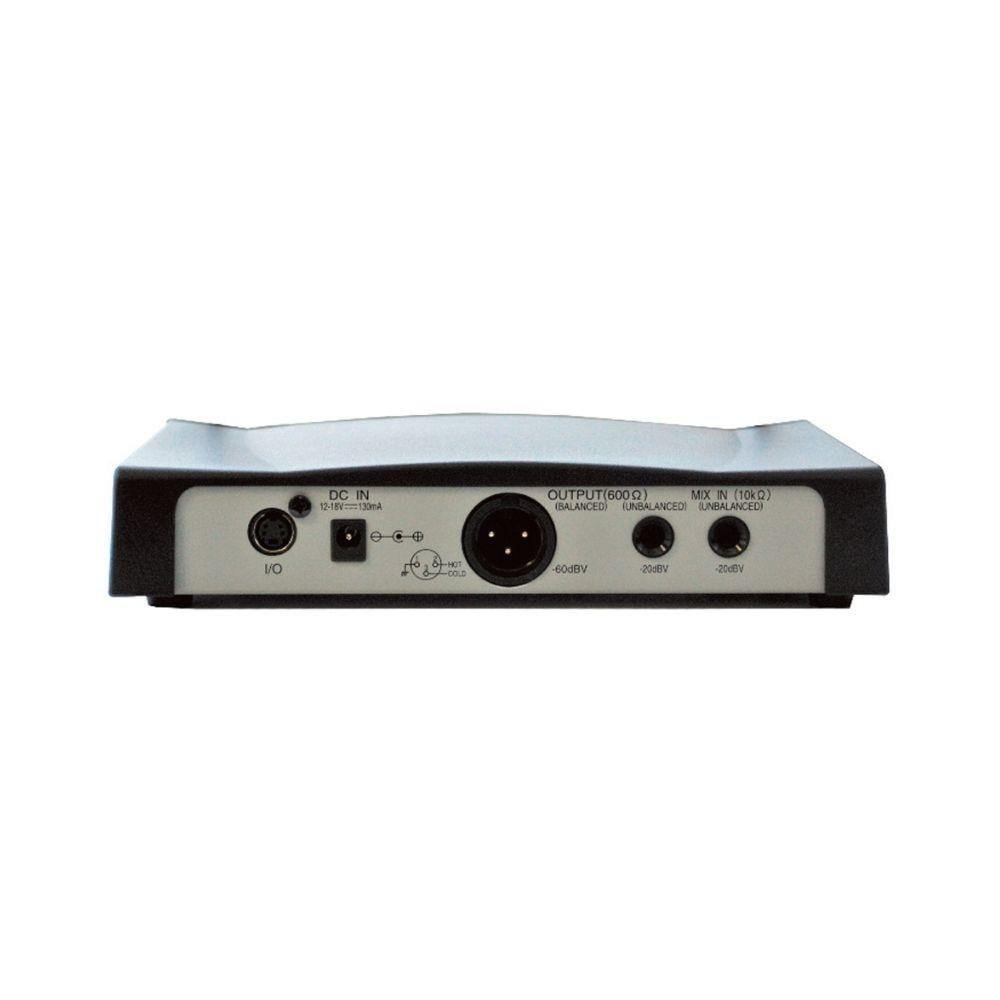

- The WT-5810 wireless receiver uses a PLL (Phase-Looped Link) frequency tuning system to reduce frequency drift caused by temperature changes and includes a compander circuit to reduce ambient noise and enhance sound quality. It supports balanced XLR outputs, an audio jack output, and an audio mixer input, and is equipped with two antennas to ensure signal stability.
Technical specifications:
- Operating frequency: 576 to 865 MHz (UHF)
- Number of selectable channels: 16 channels
- Reception: Dual satellite diversity system
- Power consumption: 130 mA (at 12V DC)
- Antennas: 2 x Rod Antenna
- Audio outputs:
- Microphone: -60dB, 600 ohms, balanced (XLR)
- Line: -20dB, 600 ohms, unbalanced (jack)
- Inputs: -20dB, 10kΩ, unbalanced
- Squelch control: Noise + Carrier + Tone, adjustable between 18 and 40dBμV
- Signal to noise ratio: more than 104dB
- Frequency response: 100Hz to 15kHz ±3dB
- Dimensions: 206 x 40.6 x 152.7 mm
- Weight: 590 grams
Main features:
- 16 selectable frequency channels to avoid interference
- Space Diversity technology for stable signal reception
- Smart battery level indicator, channel and signal indicators
- Support for automatic mixing of audio signals
- Compander circuit to reduce noise and improve sound
- Squillich Integrated Multi-Layer System
- Compact and durable design
Product Summary:
- The WT-5810 wireless receiver is one of the most powerful options available for effective wireless audio reception indoors and outdoors. Its advanced design and multiple connectivity options allow it to be used in professional environments without any complications. PLL technology and spatial diversity also make it an ideal choice for users seeking stable performance and clear audio.
Additional features:
- Automatically search for available channels
- Illuminated indicators for antenna, audio, and battery status
- Balanced and unbalanced dual output
- Support for both wireless microphones used with the same system
- Stylish appearance suitable for professional environments
Applications used for the product:
- Mosques: To connect wireless microphones to sermons and religious events.
- Conference rooms: Support speakers with high-fidelity wireless microphones
- Theaters and Live Events: Ensuring Stable Audio Reception
- Educational institutions: Deliver lectures without interruption or interference.
- Studios and Training Centers: Delivering Professional, High-Quality Sound
Summary and final advice:
- If you're looking for a reliable, professional-grade UHF wireless receiver with advanced diversity technology, the WT-5810 is the perfect choice. Its consistent performance, intelligent technologies, and easy integration into various audio systems make it a worthy investment for any audio project that demands quality and reliability.
