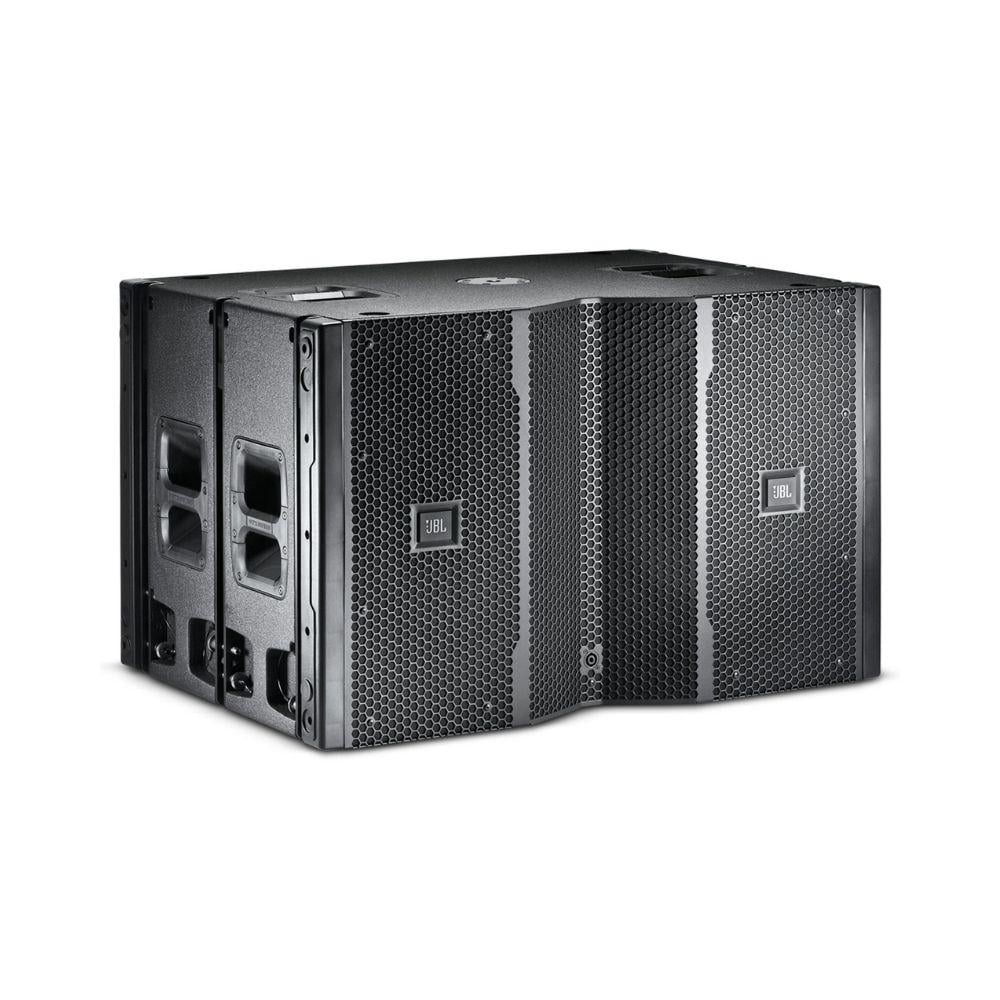

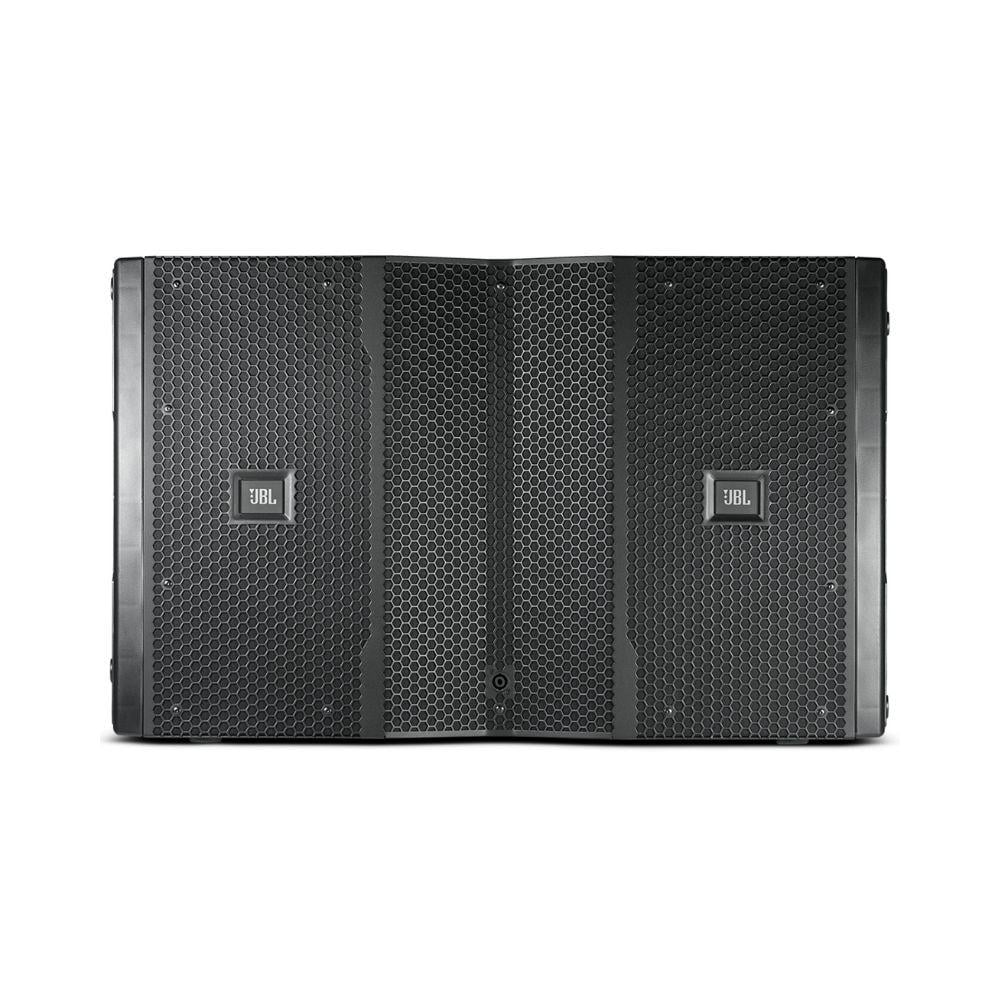

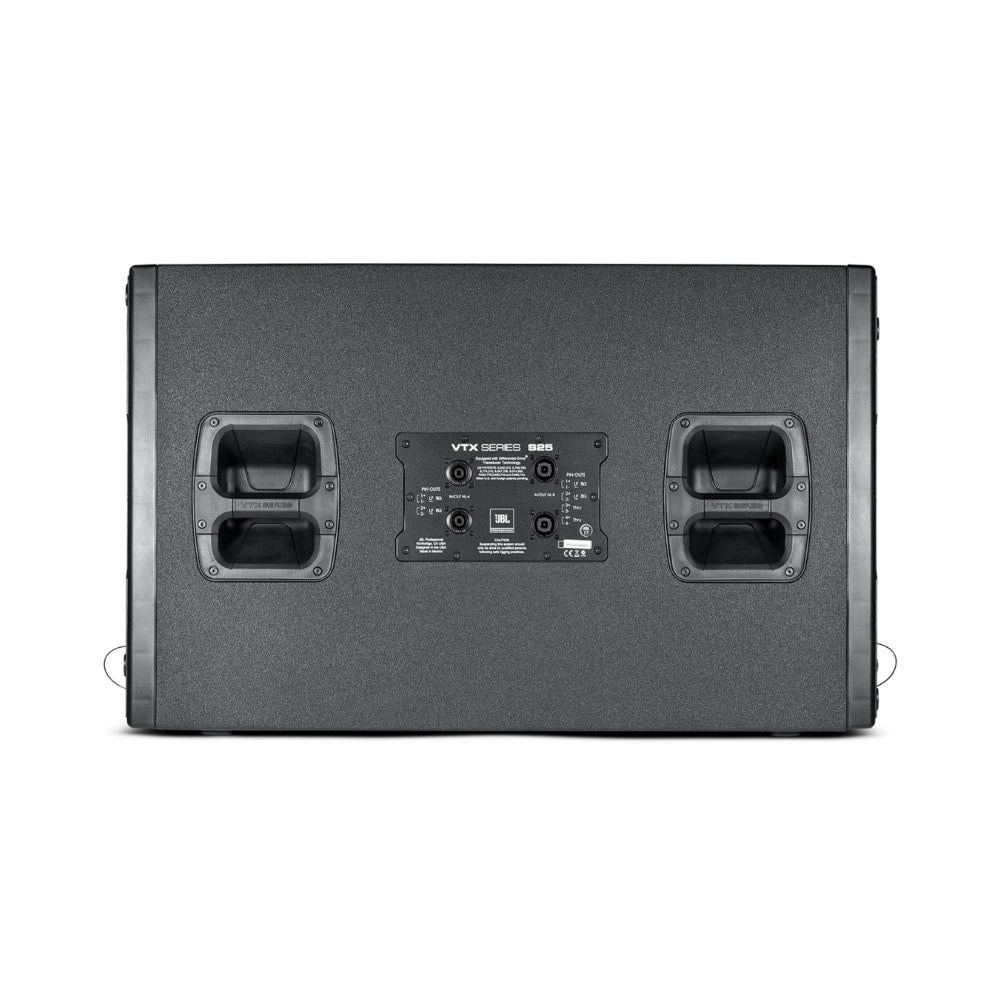

JBL 15-inch 4000W Dual Subwoofer Speaker – Cardioidal Suspension Technology VTX S25 and Line Array Integration
- The JBL VTX S25 subwoofer represents the next generation of low-frequency amplifiers (subwoofers) designed to deliver stunning performance at the lowest frequencies with high flexibility in installation and use.
- This subwoofer features two 15-inch speakers with Dual Differential Drive® technology, delivering a massive 4000W of power, giving it exceptional performance in the deep frequency range from 26Hz to 100Hz.
- It is a subwoofer amplifier The VTX S25 is ideal for integration with the VTX V20 Line Array system, whether suspended in mixed arrays or floor-mounted.
- It also supports cardioid configuration for targeted and precise sound distribution, limiting bass leakage into unwanted areas and giving the audio experience exceptional clarity and depth.
Technical description:
- The VTX S25 subwoofer speaker is designed using advanced components and exclusive technologies from JBL to deliver professional performance in large-scale show and field event environments.
- The structure is both strong and lightweight, made from Finnish birch wood and coated with a weather-resistant DuraFlex™ layer.

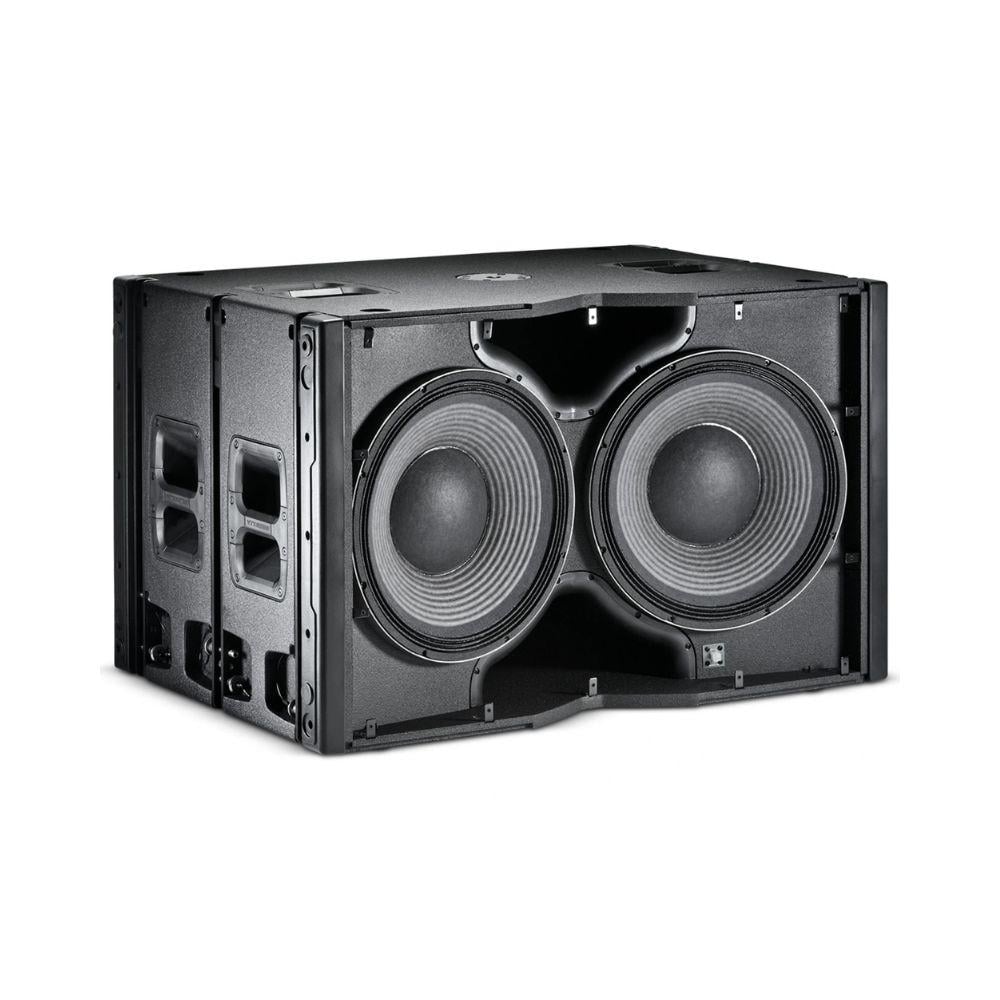

- The speaker includes two 15-inch JBL 2267H tweeters with a dual 4-inch voice coil and Neodymium Differential Drive® drivers that ensure high efficiency, perfect motion control, and thermal cooling.
- The VTX S25 integrates seamlessly with Crown I-Tech HD amplifiers via V5 System Integration settings, enabling advanced control of audio distribution and precise handling of low frequencies.
Technical specifications:
- Type: 15-inch dual subwoofer, suspended and supports cardioid array configuration
- Electrical power: 4000 watts (2000 x 2)
- Frequency range (-10 dB): 26 Hz – 100 Hz
- Acoustic coverage: Omnidirectional or Cardioid depending on the configuration
- Maximum sound pressure (SPL): 139 dB (with VTX S25-80 setting)
- Processing and Amplification: Crown I-Tech HD with V5 System Integration
- Nominal impedance: 2 x 8 ohms
- LF Speakers: (2) JBL 2267H – 15-inch – Dual 4-inch Voice Coil – Neodymium Differential Drive®
- Material: High-quality Finnish birch wood with a scratch- and weather-resistant black DuraFlex™ coating

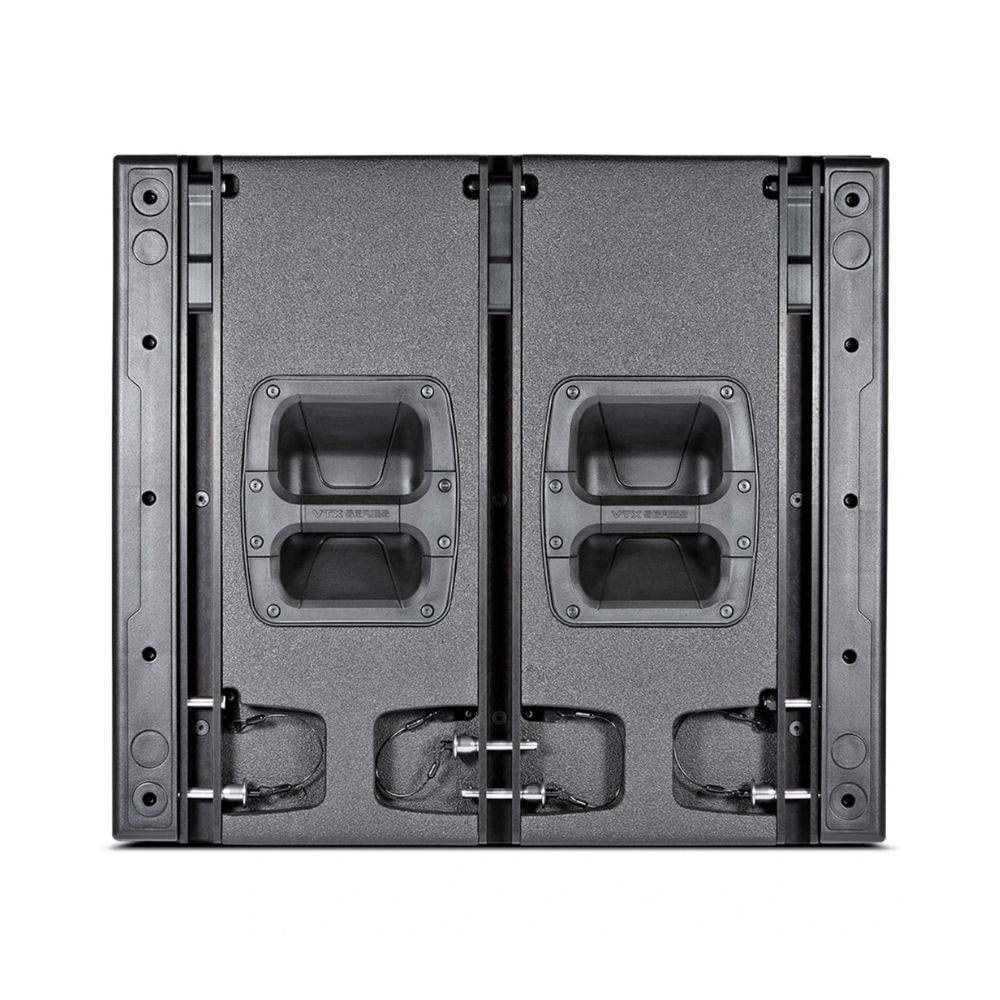

- Handles: 10 built-in handles for easy transport and installation
- Dimensions (height x width x depth):
- 566 × 909 × 630 mm
- (22.3 × 35.8 × 24.8 inches)
- Net weight: 61.8 kg (136 lbs)
Key features:
- Dual 15-inch design to deliver massive power and accurate bass response.
- JBL Differential Drive® technology for heat dissipation and distortion reduction.
- Cardioid coating is designed to reduce back reflections and improve voice control.
- Compatible with VTX V20 systems for perfect integration into audio arrays.
- Customizable suspension system for secure air suspension or ground mounting.
- Amazing performance at very low frequencies (down to 26 Hz) with exceptional clarity and depth.
- DuraFlex™ coating is resistant to heavy use in outdoor environments.
- Intelligent integration with Crown I-Tech HD systems for maximum control and performance flexibility.
Product summary:
- It is a subwoofer amplifier The JBL VTX S25 is the perfect choice for engineers and technicians looking for powerful, finely tuned bass without sacrificing ease of installation or durability.
- It offers a perfect blend of sonic depth, high efficiency, and smart design that makes it ideal for live performances and major events.
- It can be used as a standalone element or as part of an integrated Line Array system to cover theaters, festivals, and huge halls with exceptional and consistent sound quality in every direction.
Additional features:
- It operates in Cardioid or Omni mode to meet the different sound requirements of each location.
- Designed to withstand intensive field use thanks to its robust construction and weather-resistant coating.
- It is compatible with JBL HiQnet Performance Manager™ software for easy system configuration and adjustment.
- Uniform sound distribution thanks to the advanced internal sound-guiding design.
- It can be integrated with VTX V20 units to form a complete system that covers all audio ranges.
Applications used for the product:
- Festivals and major musical events.
- Theaters and large concert halls.
- Stadiums and sports fields.
- Outdoor events and outdoor parties.
- Permanent and temporary professional sound installations.
Summary and final advice:
- If you're looking for a professional dual 15-inch 4000W subwoofer that combines sonic depth, powerful performance, and easy installation, then this subwoofer amplifier is for you . The JBL VTX S25 is the ideal choice.
- These headphones offer superior performance at the lowest frequencies, with the ability to control voice direction thanks to the intelligent Cardioid pattern.
