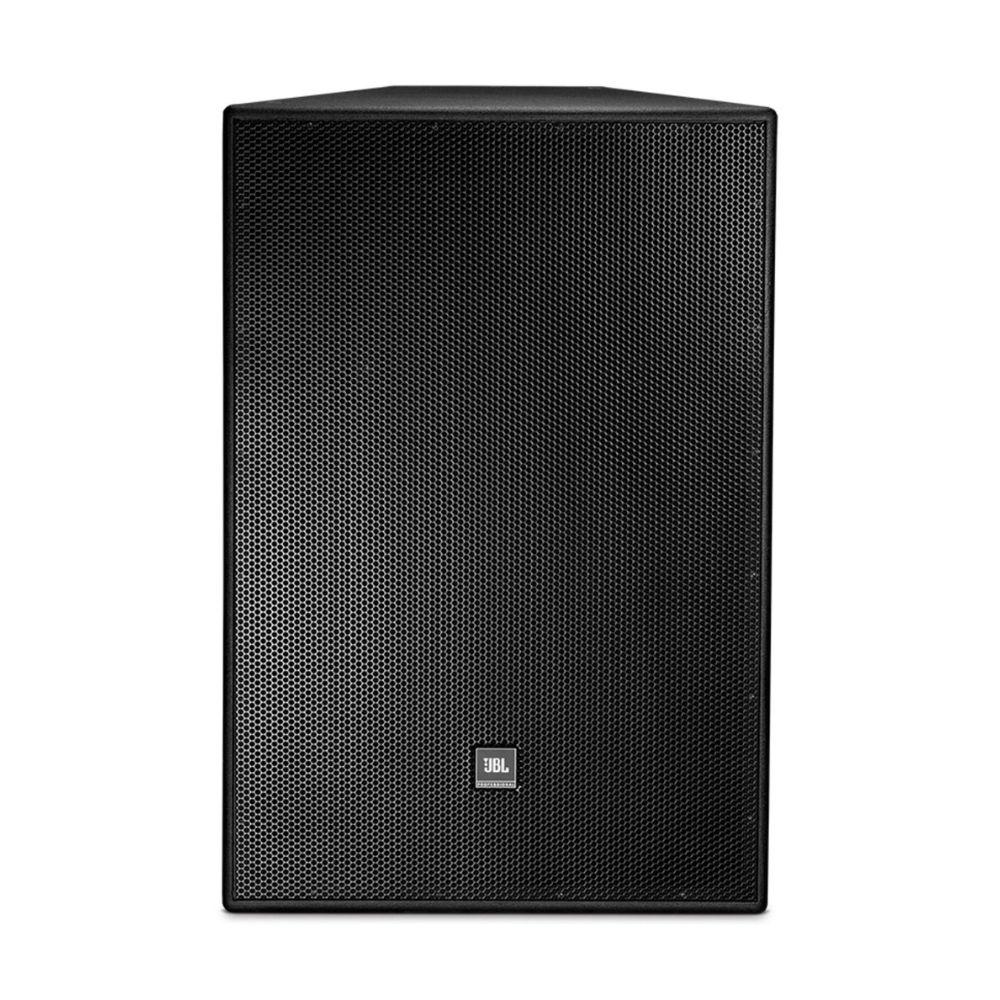

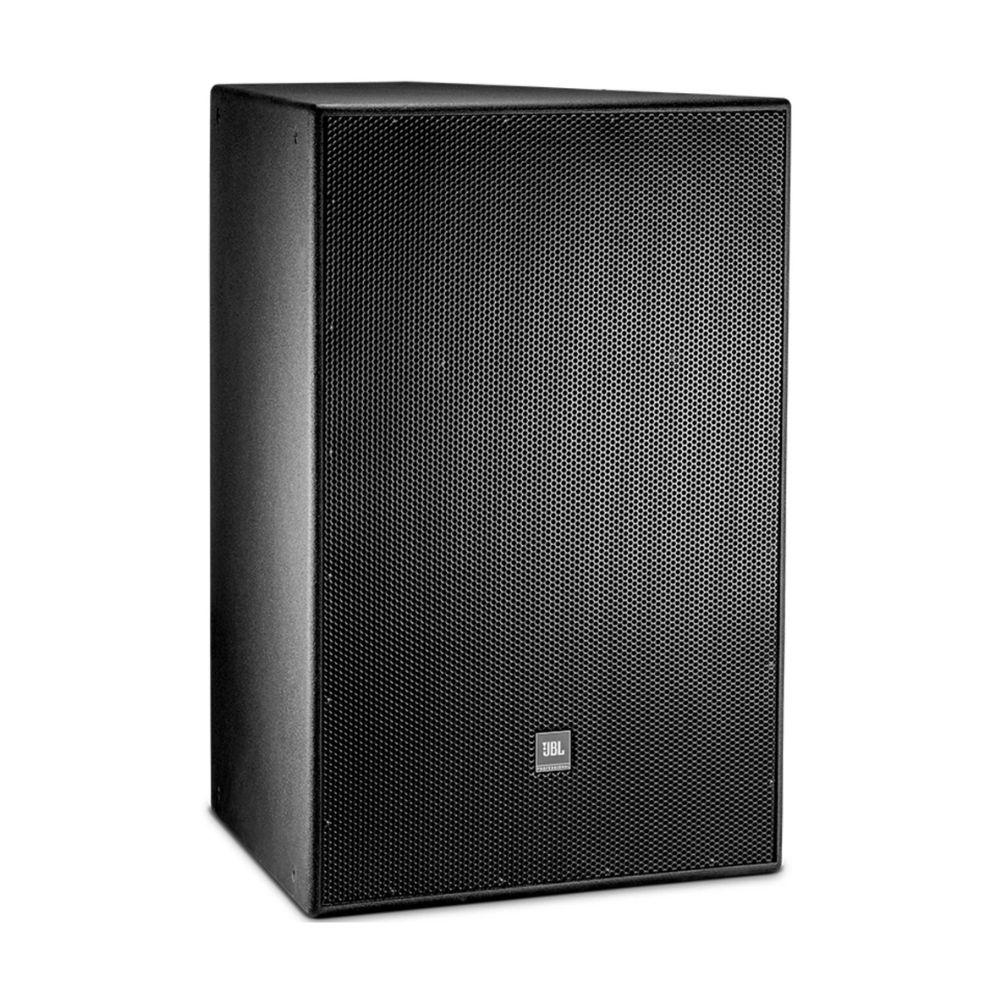

large headphones 1600W Giant 3-Way Dual 12" Speaker with 60x40 Horn for Complete Sound Control in Large Spaces, Model PD6322/64
- The JBL PD6322/64 speaker combines everything a professional audio system needs: power, precision, control, and clarity at the highest level.
- These are large, three-way (3-Way) speakers with two 12-inch drivers that provide excellent low-frequency extension up to 40 Hz, with a highly sensitive Mid CMCD™ driver and a professional neodymium HF driver that delivers stunning clarity of speech and fine details.
- The 60° x 40° coverage angle makes it an ideal choice for large mosques, theaters, halls, and huge auditoriums that need strong acoustic focus without distraction.
Technical description:
- The speaker depends The PD6322/64 is based on a Slot-Loaded LF design that improves low-frequency response and matches the performance of larger PD6322 systems.
- The CMCD™ mid-mount unit provides consistent and sharp detail even at the highest SPL levels, while the neodymium HF driver delivers strong, direct performance with low dispersion and less distortion.
- The speaker supports Tri-Amp and Bi-Amp (Passive Mid-High) modes, offering complete flexibility for audio engineers in large projects.
Technical specifications:
- Frequency range (-10 dB): 41Hz – 17kHz
- Response time (±3 dB): 49Hz – 15kHz
- Coverage angle: 60° × 40°
- Operating modes: Tri-Amp / Bi-Amp (Passive Mid-High)
- Passive crossover: at 1.5 kHz
- Driver strength (AES):
- LF: 1600W Peak 6400W
- MF: 350W Peak 1400W
- HF: 75W Peak 300W
- System Strength (IEC):
- LF: 1200W Peak 4800W
- MF/HF: 300W Peak 1200W
- Highest SPL:
- LF: 128 dB (134 peak)
- MF: 135 dB (141 peak)
- HF: 135 dB (141 peak)
- Passive Mode: 135 dB (141 peak)
- Sensitivity: 110 dB SPL
- Drivers:
- LF: 2 x 12" JBL 2206H
- MF: CMCD-82H
- HF: 2432H Neodymium
- Impedance: 4Ω
- Weight: 77 kg
- Dimensions: 991 × 673 × 897 mm
- Finish: Black DuraFlex, resistant to harsh elements

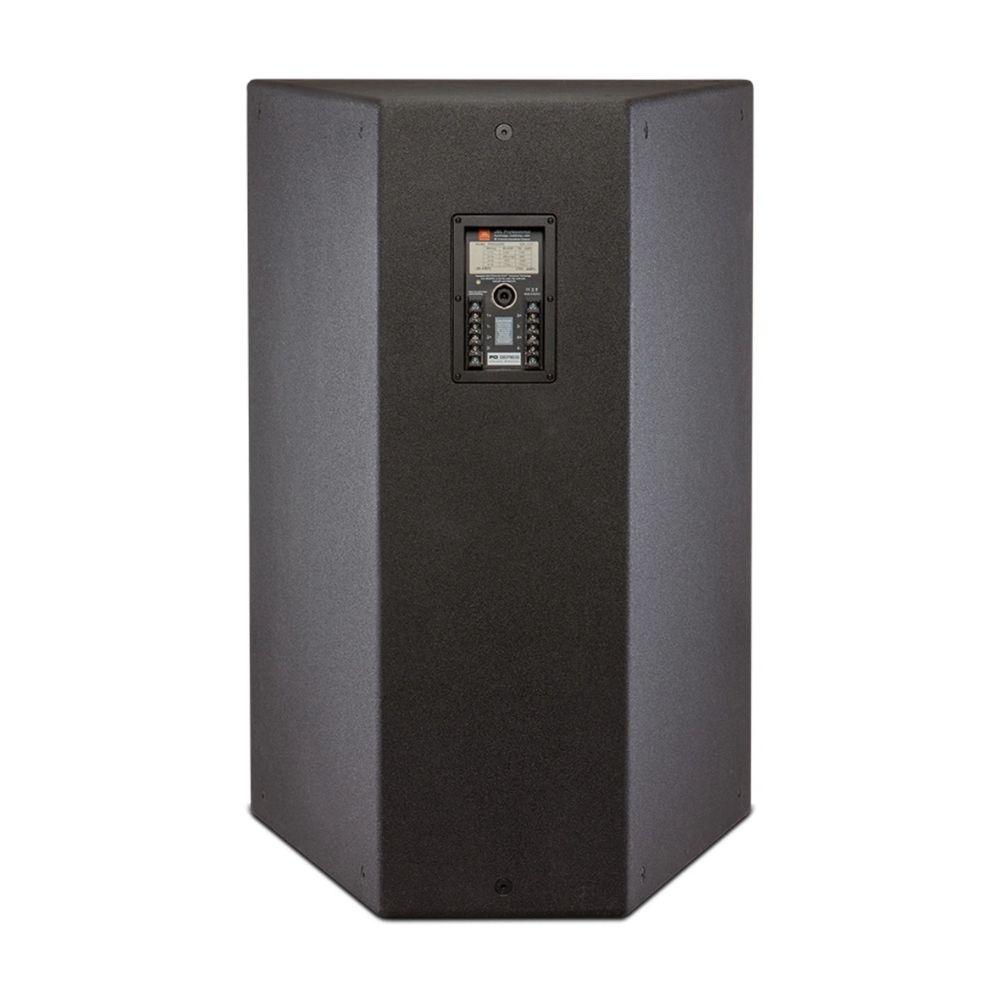

- Outlets: Speakon NL8 + Barrier Strip
Key features:
- Driver 12" with tremendous power and excellent range up to 40Hz
- Accurate coverage and high-concentration sound at a 60x40 angle
- True 3-way performance delivers stunning clarity and frequency separation.
- High sensitivity 110 dB — requires less power and delivers louder sound
- Mid CMCD™ with very low distortion and perfect response

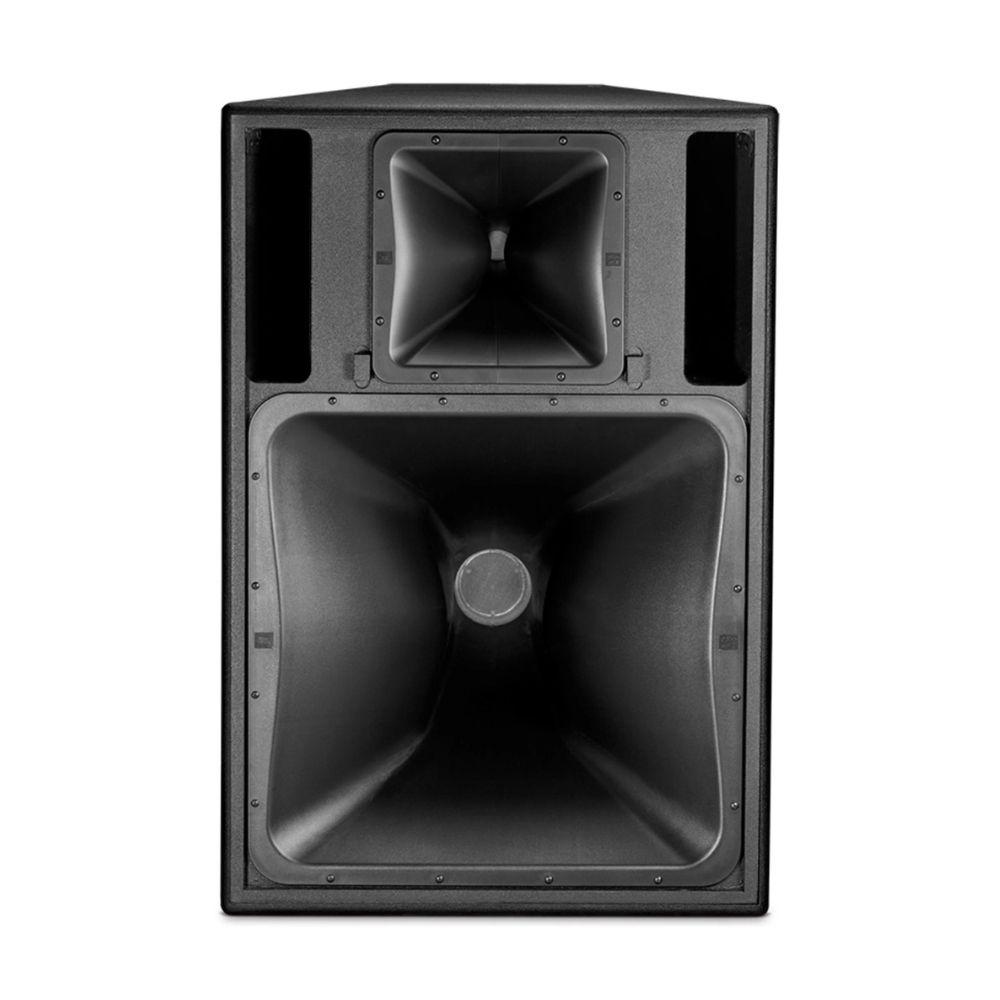

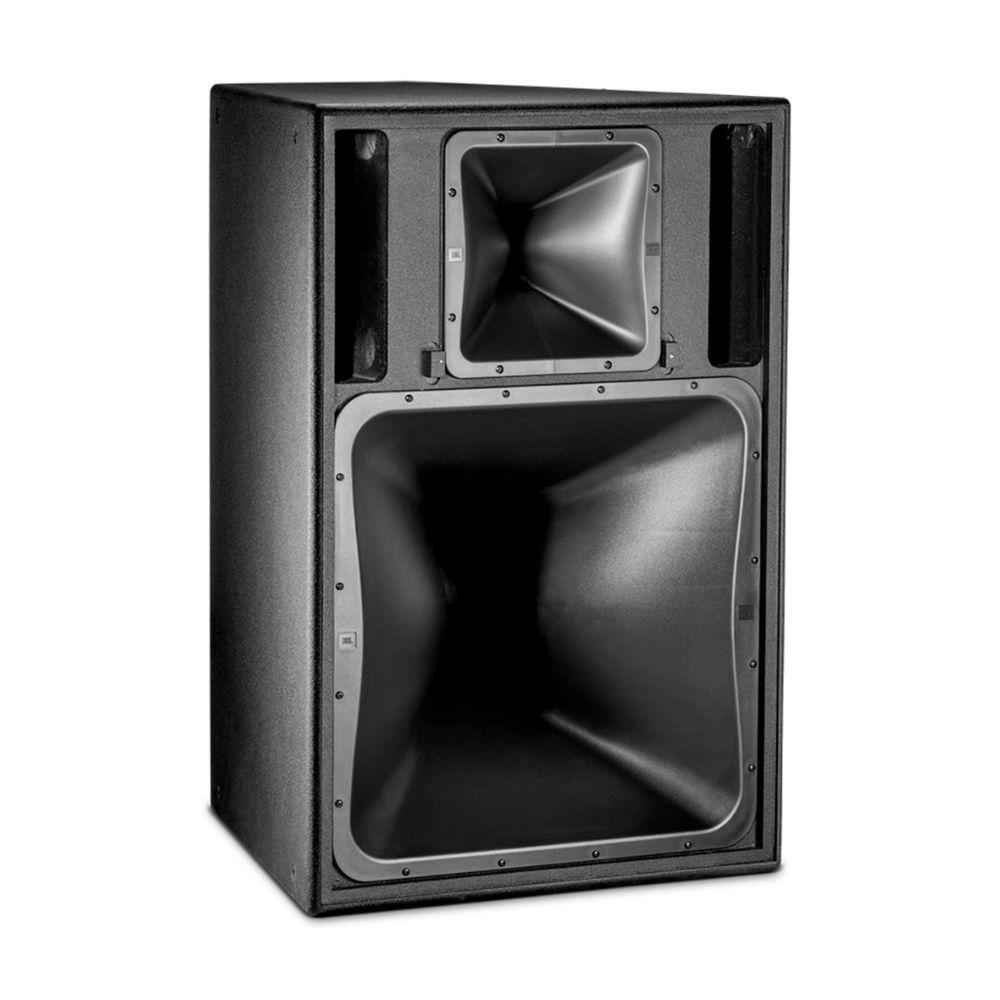

- A large PT™ horn maintains tone and direction across the entire sound range.
- Flexible installation options and easy integration with other JBL PD systems
- Suitable for the highest SPL levels without loss of quality
Product summary:
- Large headphones The JBL PD6322/64 delivers very powerful performance suitable for large projects that require high-quality sound with complete control over the direction of sound.
- Thanks to its three-way design, tight coverage angles, and dual 12" drivers, it is ideal for delivering confident, consistent, and steady sound in large spaces that need both power and clarity.
- Whether you need it for public speaking, recitation, music, or multi-purpose uses — this headset is built to operate efficiently and for many years without losing its accuracy.
Additional features:
- Complete M10 suspension points for professional installation
- WRC/WRX option for outdoor protection and high-humidity environments
- Durable front grille resistant to corrosion and weathering
- Compatible with DSP processors and high-performance amplification systems
- Trapezoidal design for better audio direction control
Applications used for the product:
- Theaters and huge halls
- multi-purpose halls
- Conference centers
- Indoor stadiums
- Universities and major schools
- Main PA audio systems
- Systems requiring focused coverage and strong voice propagation
- The 60x40 angle makes the speaker ideal for front rows and longitudinal spaces.
Summary and final advice:
- If you are looking for With a very powerful 3-way speaker with up to 1600 watts of AES power and 60x40 coverage, giving you excellent acoustic focus, the JBL PD6322/64 is one of the best professional-class options.
- Large speakers designed for audio systems that operate for long hours daily and require real power and high clarity without strain or distortion.
Detailed product data (Data Sheet).
