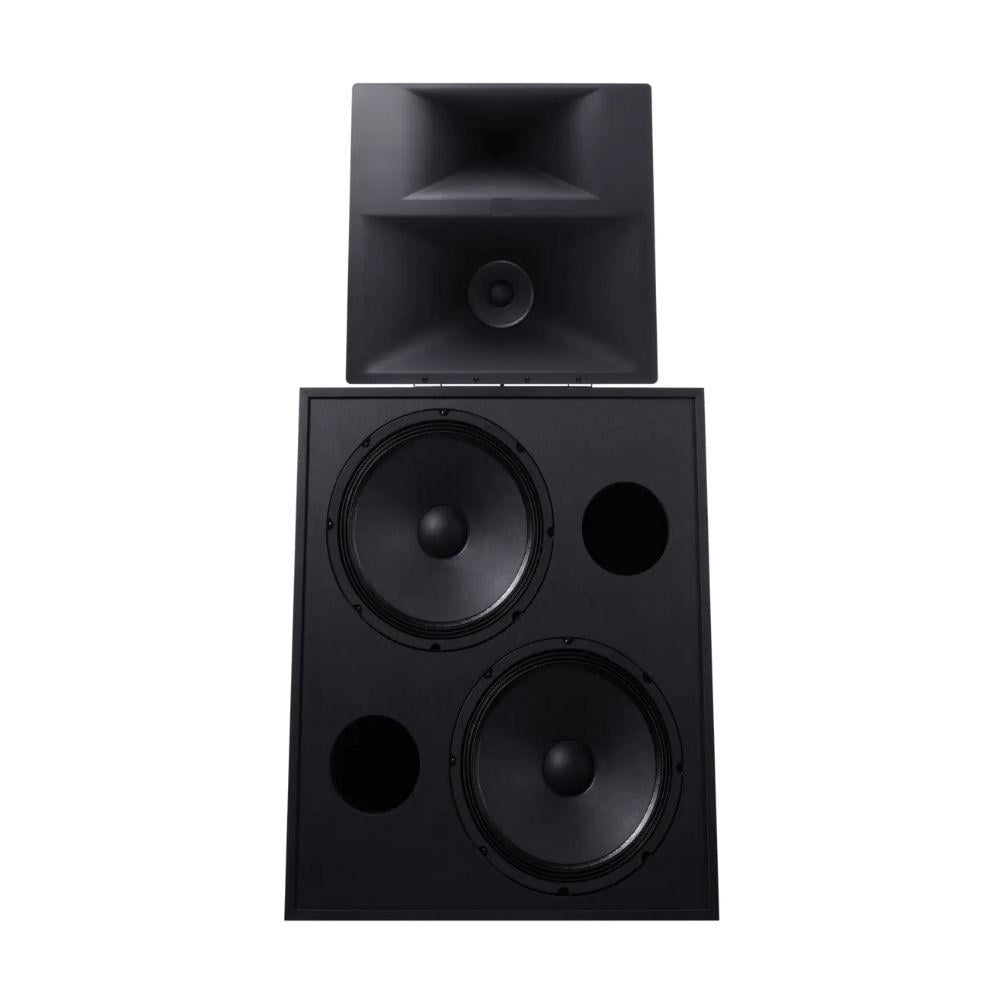

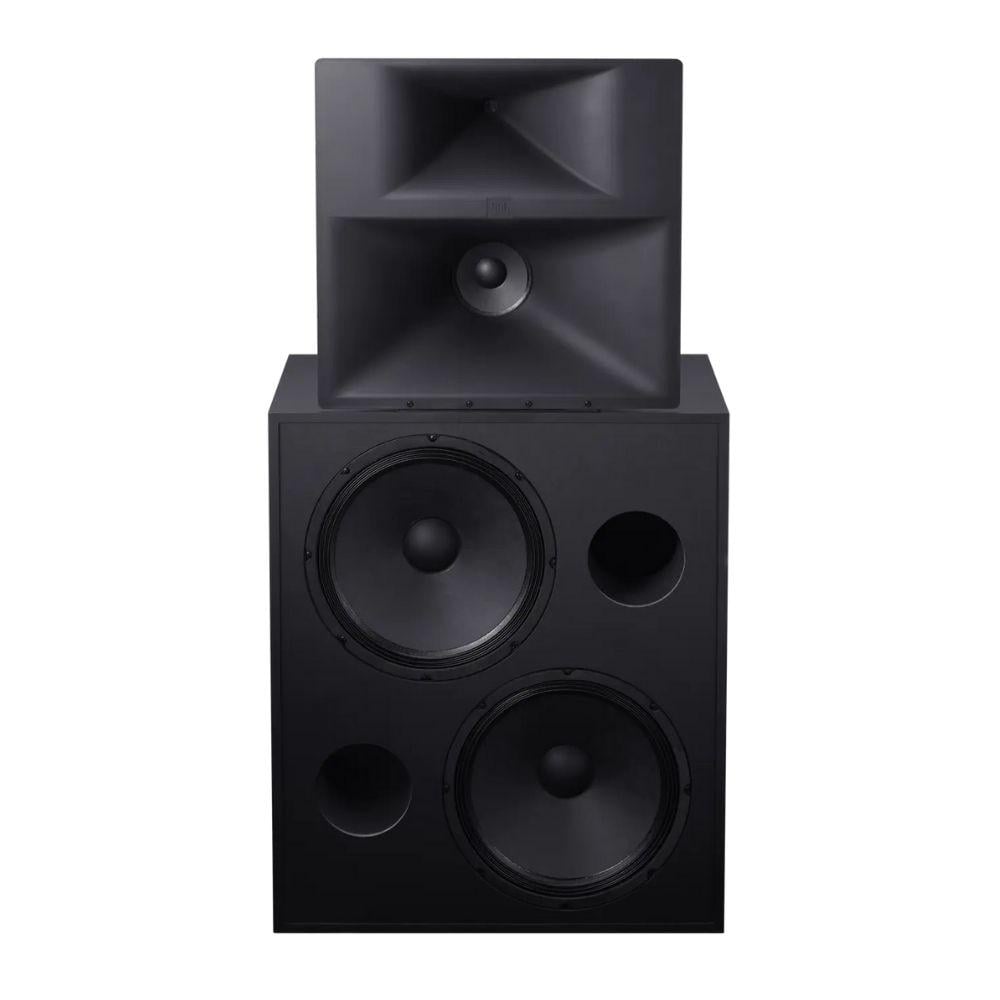

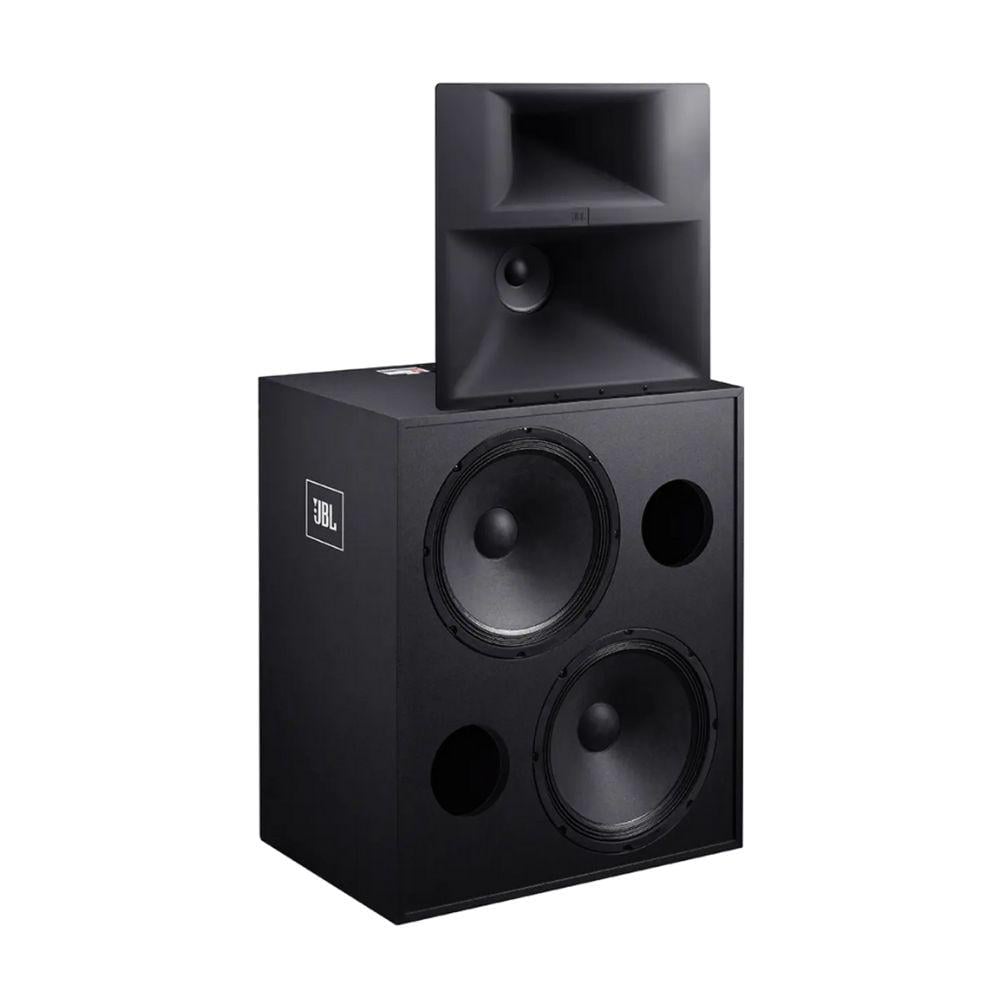

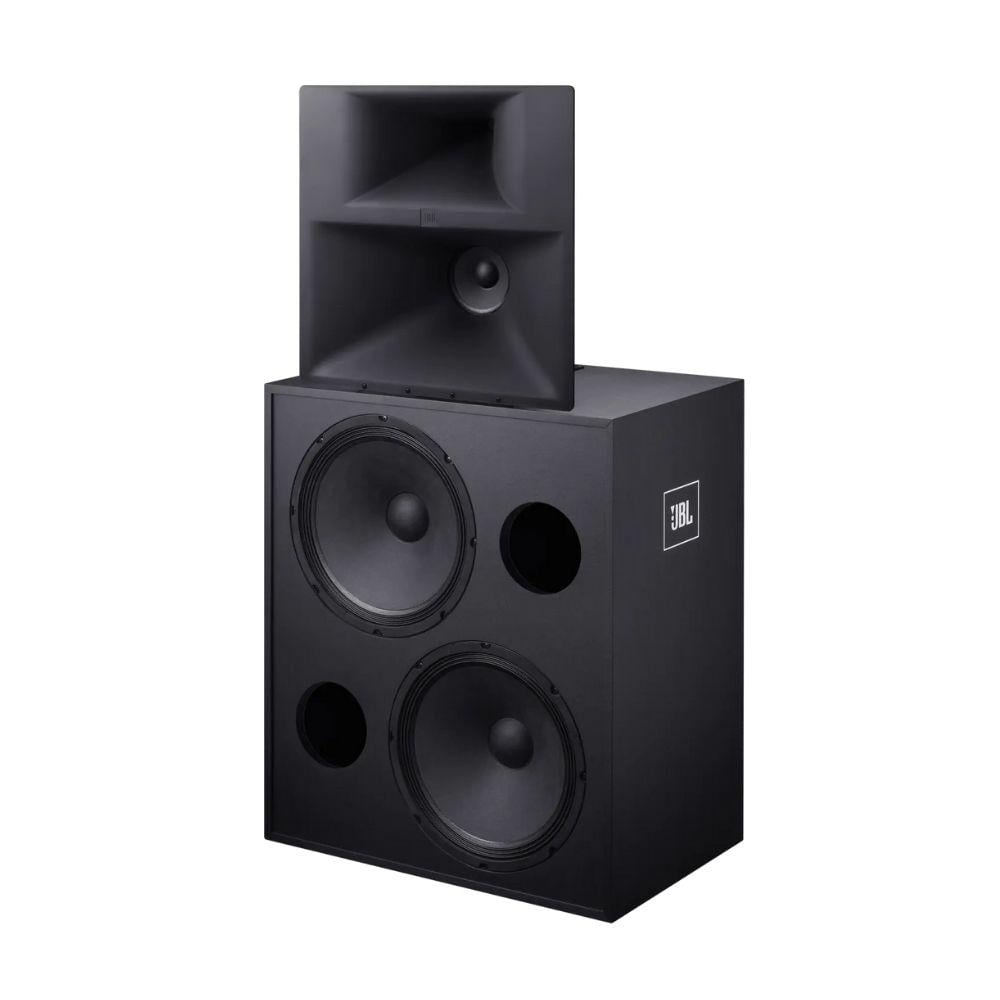

JBL 3-way professional speaker , 800 watts, for a Hollywood sound experience and cinematic screen quality, model 4253
- The JBL 4253 Cinema Series soundbar represents the pinnacle of audio performance in small and medium-sized cinemas. With a professional 3-way design and up to 800 watts of power, the speaker delivers high sound pressure levels of up to 138 dB with wide sound distribution that immerses every seat up to 26 meters (85 feet) deep in the auditorium.
- Whether you're building a Dolby Atmos or DTS:X system, the JBL 4253 gives your audience clear, rich, and impactful 3D cinematic sound — just as the film's sound engineer intended.
Technical description:
- He depends A 15-inch Waffle amplifier unit provides deeper, richer bass, with a mid- and high-frequency unit featuring Optimized Waveguide technology that delivers consistent and accurate 90° x 50° symmetrical coverage.

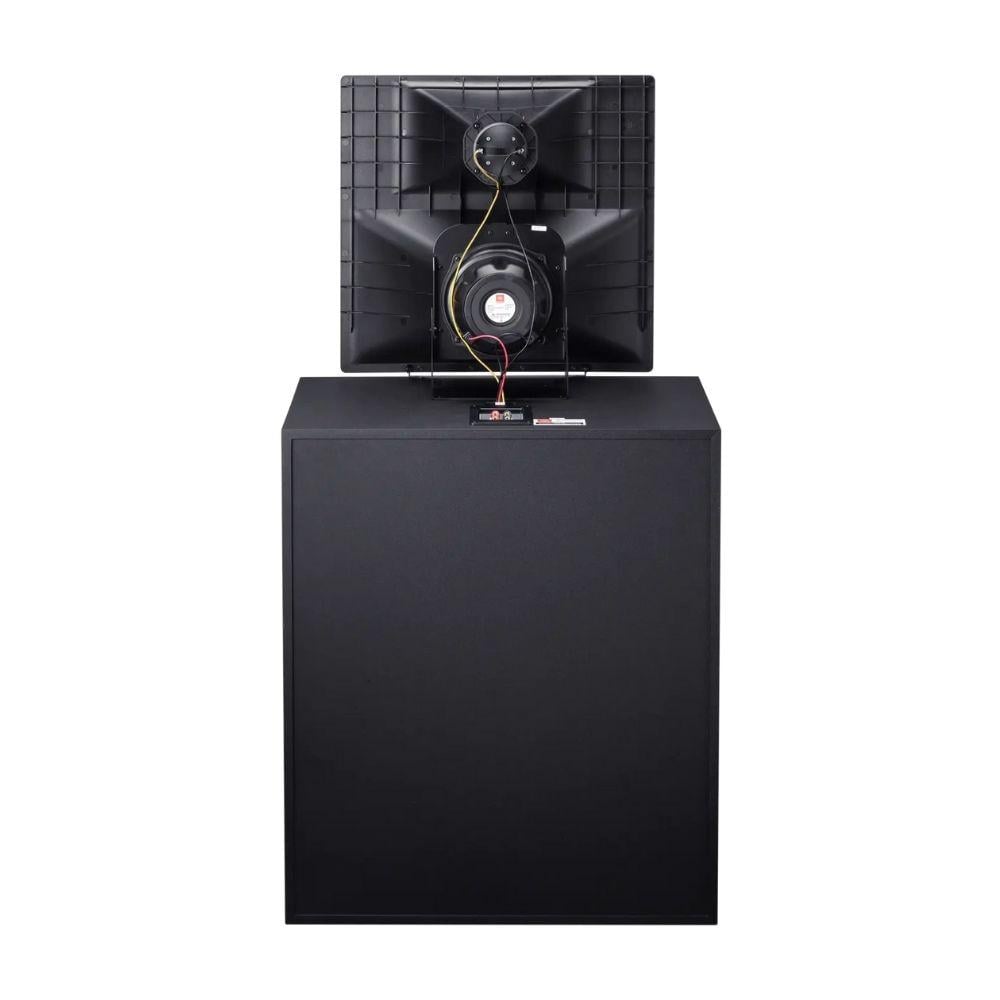

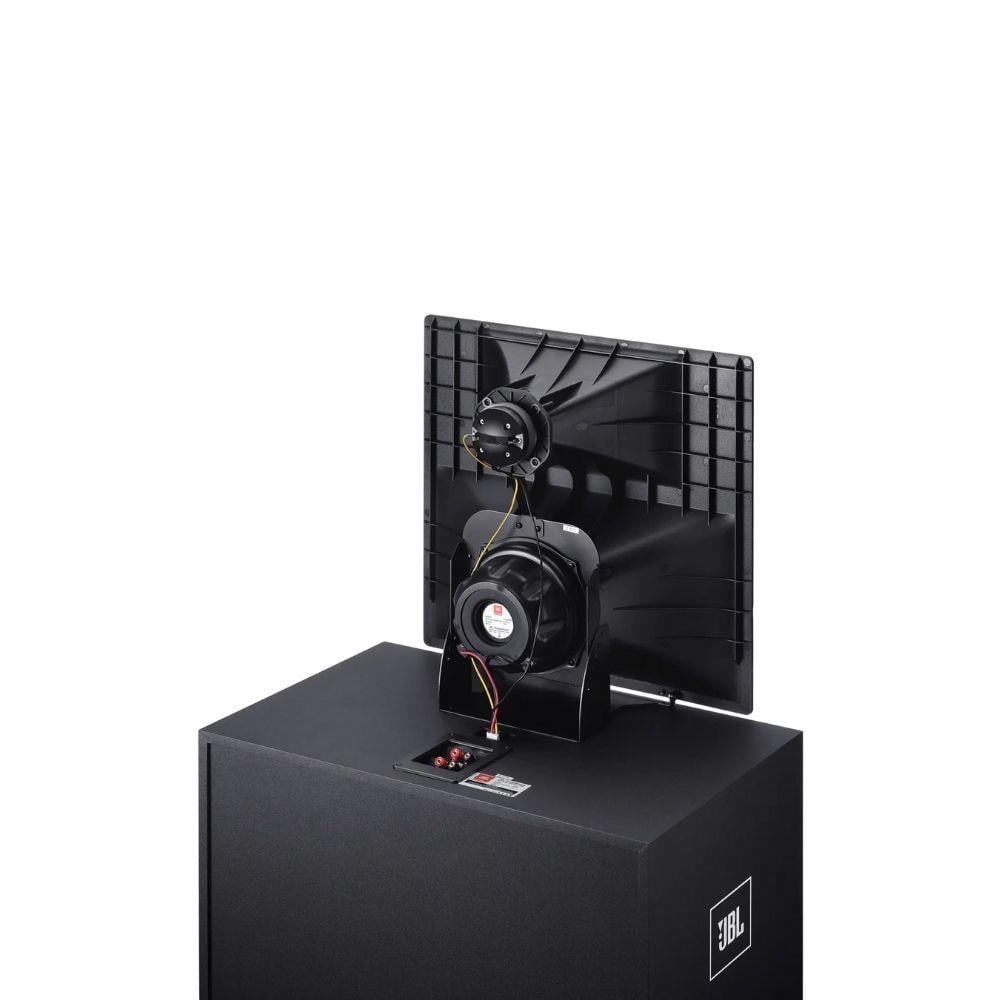

- The speaker supports both Passive and Bi-Amp operating systems, in addition to an internal Cross-Over network, and top connection ports for easy installation behind the cinema screen.
- Sound can be enhanced via preset settings in the JBL CPi2000 processor, with full compatibility with Crown XLC amplifiers.
Technical specifications:
- Type: 3-Way Screen Speaker
- Power: 800 watts
- Headphone components:
- 2 x 15-inch low-frequency amplifiers
- Mid Range High Performance
- Horn high frequencies Waveguide
- Sound pressure level: 138 dB
- Frequency response: from 50Hz to 18kHz
- Coverage: 90° horizontal × 50° vertical
- Resistance: 4 ohms
- Operating mode: Passive / Bi-Amp
- Acoustic projection range: up to 26 meters — suitable for 100–150 seats
Key features:
- Three-way design for superior sound clarity and detail
- Huge power and consistent performance for medium-sized halls
- Extensive coverage for all seats without loss or distortion
- Full support for professional cinematic systems
- Heavy-duty components with internal protection circuitry
- Flexible installation with easily accessible top outlets
Product summary:
- If you want a powerful, clear, and expansive front-screen speaker with fine detail and true cinematic depth, the JBL 4253 is the perfect choice. It's designed to deliver room-filling sound with a realistic energy you feel before you hear it, and it's fully compatible with the rest of the JBL Cinema series.
Additional features:
- Works in perfect harmony with 8102 Surround and 3181F/4281F Subwoofers
- Ready-made settings via the CPi2000 processor for instant results
- Protection for transformers to ensure a longer lifespan
- Modular design that can be ordered as a complete unit or as separate modules
Applications used for the product:
- Commercial cinema (100–150 seats)
- Theaters
- Dolby Atmos and DTS:X displays
- Professional equipment for institutions and hotels
Summary and final advice:
- If you're looking for a front-facing cinematic speaker that delivers powerful, clear, and deep sound with JBL's renowned cinematic philosophy — then The JBL 4253 speaker is the professional choice that ensures an immersive sound experience in every scene and seat in the auditorium.
