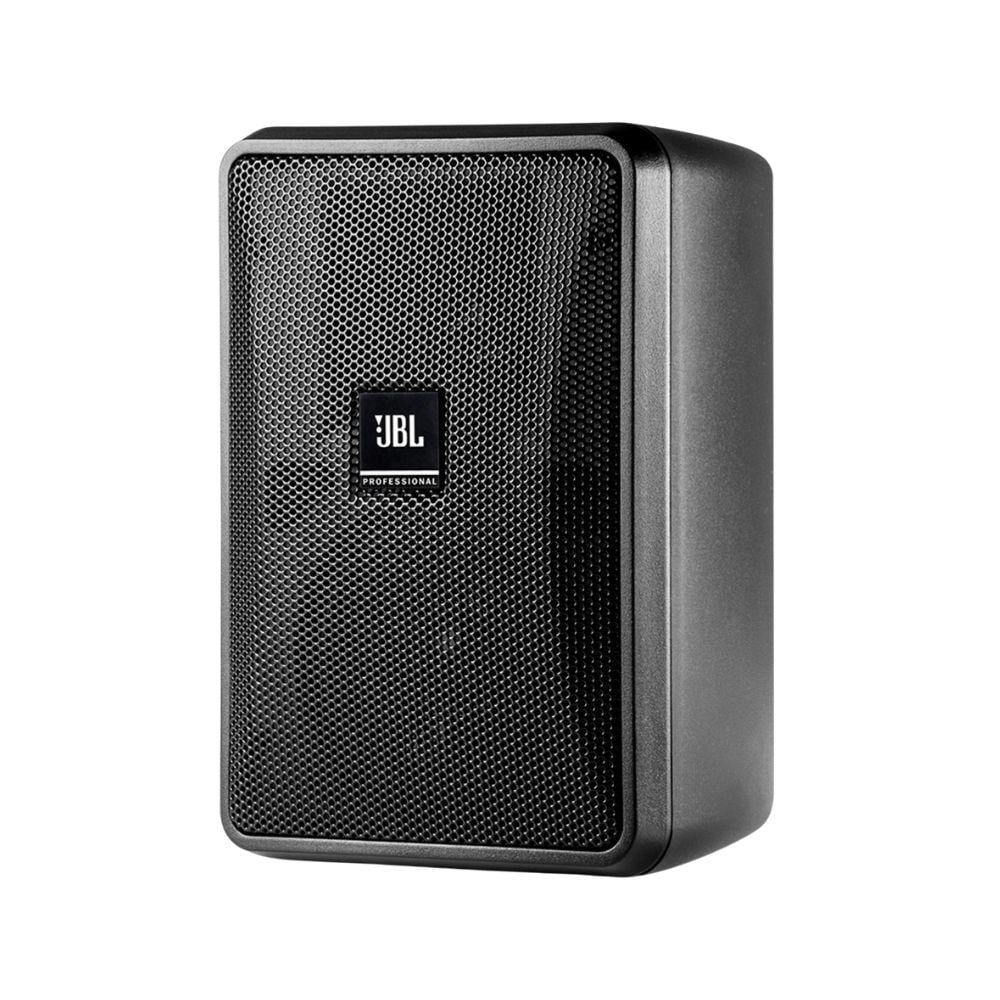

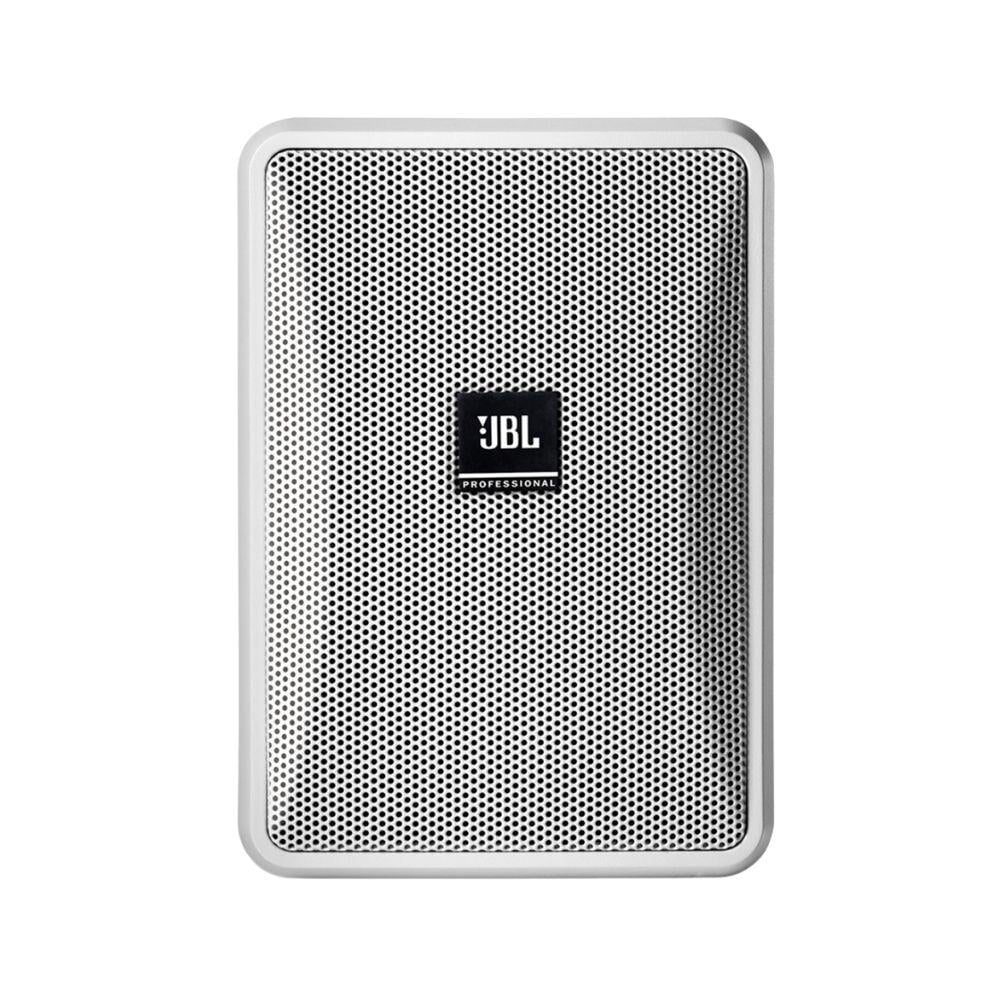

JBL 50W Mini Wall Speaker for High-Quality Rear and Public Sound, Model Control 23-1

JBL 50W Mini Wall Speaker for High-Quality Rear and Public Sound, Model Control 23-1

• The JBL Control 23-1 mosque speakers are among the most popular speakers in the world because they combine a very small size, elegant design, and powerful, clear sound that will amaze you in relation to their size.
• With its 3-inch 2-way design and wide 100° x 100° coverage, it is ideal for distributing sound evenly in all types of spaces, whether indoors or outdoors.
• The Control 23-1 wall speaker is designed to deliver powerful, clear sound suitable for background music, audio announcements, and upscale cafes and restaurants. It also comes with an InvisiBall® Mounting System for easier, less visually obtrusive installation, making it suitable for any modern décor.
• With its weather-resistant construction and calibration to operate in harsh conditions, the Control 23-1 is an excellent choice for commercial projects that require powerful sound in a small size.

Technical description:

• Mosque speakers rely on a combination of high-quality components:
• The 3-inch Waffle is made of strong and durable fiberglass for long-term operation without deformation.
• Twitter 0.5 inch PEI with liquid cooling to deliver high detail without annoying sharpness.
• 2-Way system with internal Class II crossover (LPF + HPF) for efficient sound distribution.
• Built-in 70/100V 15W converter plus 8 ohm direct operation.
• Even 100° x 100° coverage for maximum diffusion with the fewest speakers.
• The body is also made of weather-resistant HIPS material, with a front grille treated against rust.

Technical specifications:

• Frequency range (-10dB): 70 Hz – 20 kHz
• Frequency response (±3 dB): 95 Hz – 19 kHz
• Operating power:
• 50W Continuous
• 100W Program
• 200W peak
• Sensitivity: 86 dB
• Maximum sound pressure level: 109 dB Peak
• Spread angle: 100° × 100°
• Impedance: 8Ω (in Thru mode)

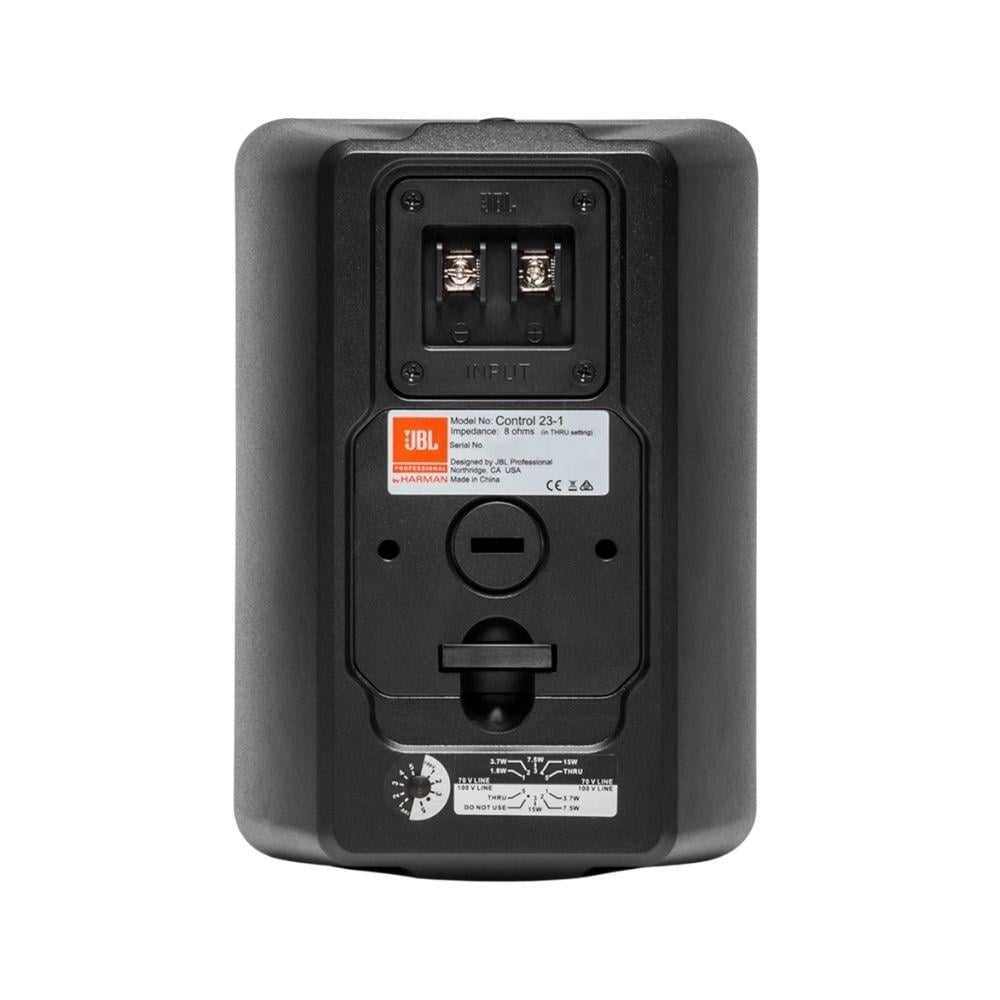

• Converter tabs:
• 70V: 15W / 7.5W / 3.7W / 1.8W
• 100V: 15W / 7.5W / 3.7W
• Drivers:
• LF: 3" Fiber Cone
• HF: 0.5" PEI Dome
• Body material: Weather-resistant HIPS
• Environmental rating: IP-44 (and up to IP-55 with WeatherMax Grille)
• Dimensions: 200 x 141 x 111 mm
• Weight: 1.8 kg
• Accessories:
• InvisiBall base
• 4mm Hex Key
• Additional options:
• U-Bracket
• WeatherMax Grille
• Ceiling suspension adapter

Key features:

• Very small size with powerful sound performance
• Wide sound propagation at a 100° x 100° angle
• Structure resistant to external factors
• Installation is very easy via InvisiBall® Mount
• Suitable for commercial 70/100V or 8 ohm systems
• A balanced sound, perfect for background music.
• A modern style that suits all types of decor
• High endurance — works for long hours without fatigue

Product summary:

• The JBL Control 23-1 wall speaker offers amazing value for its size; it is a very small speaker but capable of covering large areas with a full and balanced sound.
• Suitable for any project that requires soft background music, clear advertising sound, or a distributed sound system in commercial or home environments.
• It is the ideal choice for projects that require JBL quality while maintaining a small size and high installation flexibility.

Additional features:

• Compliant with RoHS regulations
• Option to add WeatherMax protection for extreme environments
• It operates efficiently in heat, humidity, salts, and radiation.
• Full support for 70V/100V systems with multiple options
• They can be easily integrated into multi-speaker systems.

Applications used for the product:

1. Restaurants and cafes

• It offers a pleasant and evenly distributed tone, creating a comfortable atmosphere without noise.

2. Shops and showrooms

• It helps to attract attention without distraction, with important clarity for announcements and alerts.

3. Hotels and Resorts

• Ideal for hallways, lobbies, waiting areas, and gyms.

4. Schools and universities

• It works efficiently in classrooms, covered outdoor areas, and in gatherings.

5. Health clubs and gyms

• It delivers a powerful sound despite its size, suitable for background music and stimulation.

6. Covered outdoor use

• Such as terraces, walkways, gates, with the possibility of enhancing protection via WeatherMax Grille.

Summary and final advice:

• If you are looking for mosque speakers with professional and clear sound, and you want a product that is durable and can withstand indoor and outdoor conditions, the JBL Control 23-1 wall speaker is the best possible option in its class.
• Your space will be covered regularly and accurately, and you won't need a large number of speakers…
• Its installation is also very simple, and its elegant shape makes it suitable for any place without any visual distortion.
• An excellent choice for restaurant projects, cafes, shops, schools, hotels, and even homes that want a clean and balanced background sound.

Detailed product data (Data Sheet).
