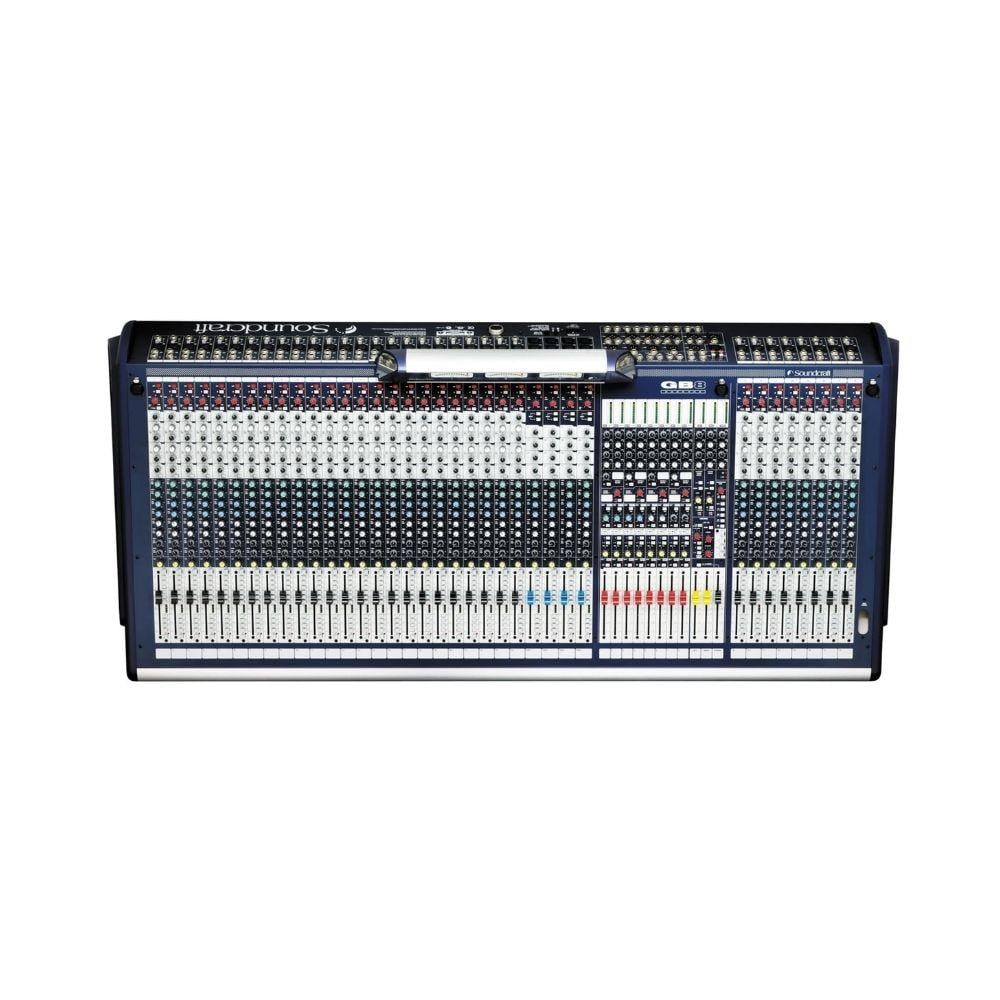

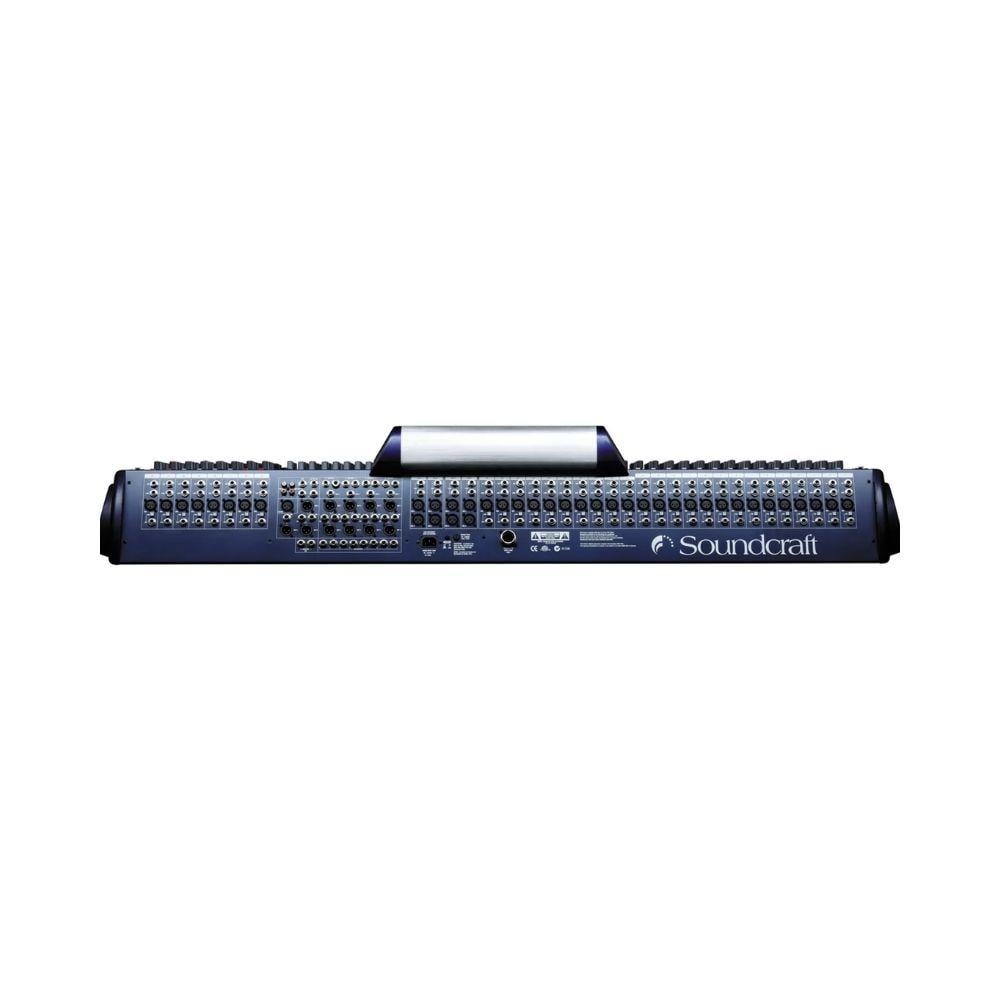

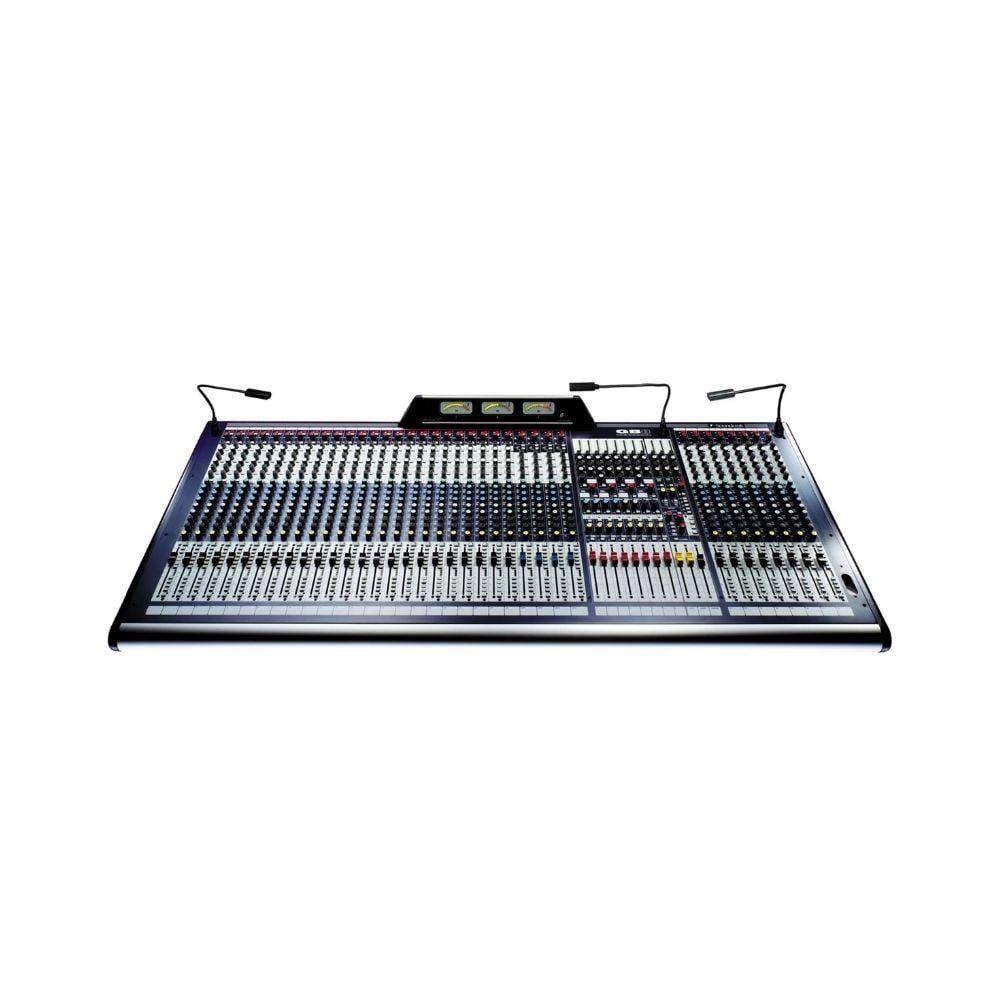

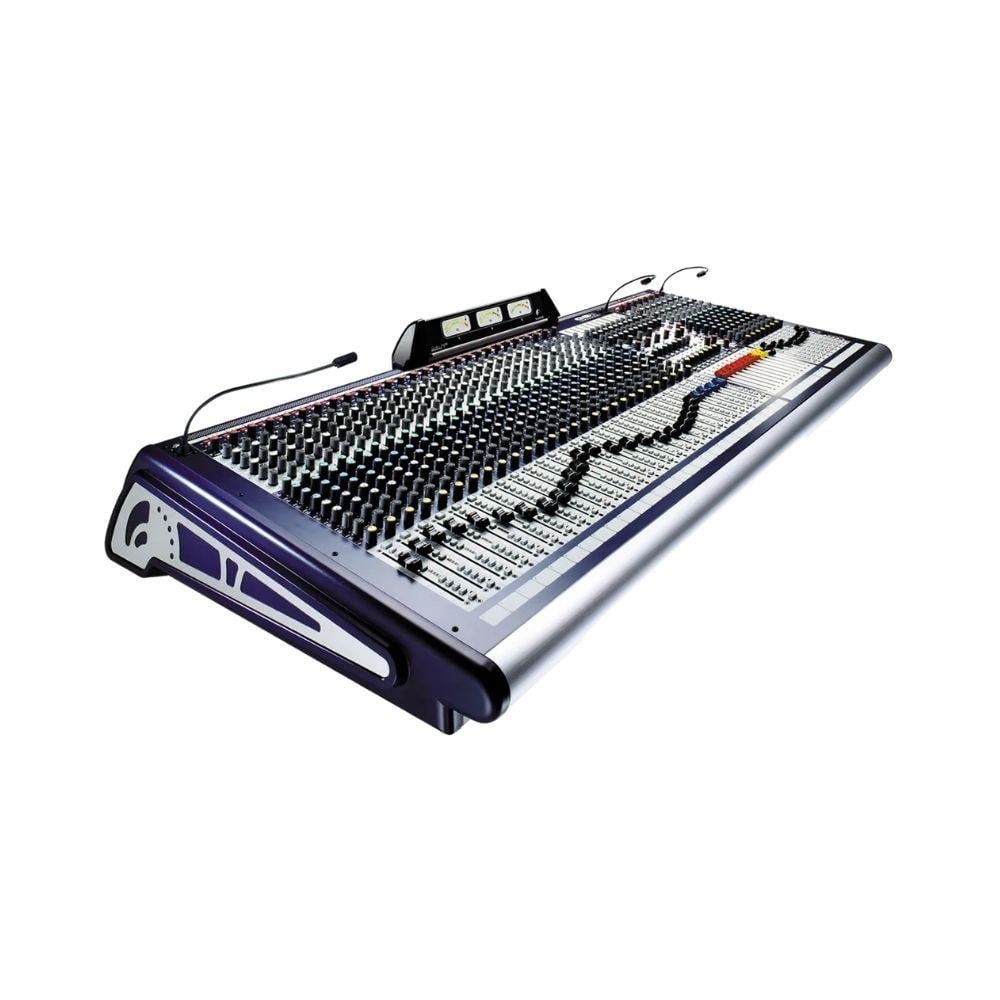

Soundcraft RW5695SM 24-channel analog audio mixer for live and monitoring audio with dual-mode design, GB30 amplifiers, 8 auxiliary inputs, and 8 groups.
- The Soundcraft GB8 – 24 Channel audio mixer is designed to be an advanced professional platform for live audio and monitor mixing applications in environments that demand the highest levels of flexibility and audio performance.
- This mixer belongs to the high-end Soundcraft GB8 series, which was developed to offer mixing capabilities comparable to grand touring mixers, with a practical design and high reliability suitable for intensive use in large halls, theaters, and places of worship.
- This version offers 24 mono channels with 4 stereo channels, making it an ideal choice for professional systems that require comprehensive control over a large number of audio sources.
Technical description:
- The Soundcraft GB8-24 Channel mixer is based on the legendary GB30 Mic Preamps, which feature a high operating margin and extremely low distortion, ensuring clear and accurate sound even in the most complex acoustic environments.
- The mixer features Dual-Mode Topology technology, which allows it to be used as a Front of House (FOH) mixer or Monitor Console with the touch of a button, with the ability to switch feeders to control Groups or AUX outputs according to the operating mode, giving great flexibility in live performances.
- All mono channels are equipped with a professional 4-Band GB30 EQ with two variable mid ranges (Hi-Mid and Lo-Mid) plus a high-pass filter with a sharpness of 18dB/Oct, allowing precise control over the sonic character of each source.
Technical specifications:
- Mixer type: Professional analog
- Series: Soundcraft GB8
- Number of channels:
- 24-channel Mono Mic/Line
- 4 Channel Stereo Line
- Microphone amplifiers:
- Soundcraft GB30 Mic Preamps
- Audio equalizer (EQ):
- 4-Band GB30 EQ
- Hi-Mid and Lo-Mid are variable
- High-Pass Filter 18dB/Oct
- Direct Outputs:
- Available on all mono channels
- Auxiliary outputs (AUX):
- 8 AUX Sends
- Flexible with Pre/Post Fader Switching
- Subgroups:
- 8 Group Outputs with 100mm Feeders
- Matrix:
- Output Matrix 7x4
- Feed from Groups, Main L/R and Center (Mono)
- Operating mode:
- Dual-Mode (FOH / Monitor)
- Measurement and monitoring:
- LED Meter Bridge
- Built-in VU Meter Bridge
- Energy source:
- internal
- Uses:
- Live voice
- Mix Monitor
- Multi-track recording
Key features:
- GB30 amplifiers with professional sound clarity
- Dual-Mode system for switching between FOH and monitor
- High-precision quad-band EQ
- 8 AUX inputs for managing the monitor and effects.
- 8 Groups for Advanced Professional Guidance
- 7x4 Output Matrix for Multi-Zone Systems
- Direct Outputs for Professional Recording
- Precise signal monitoring counters
- Durable design suitable for intensive use
Product summary:
- The Soundcraft GB8 – 24 Channelaudio mixer is an advanced professional analog audio mixer designed to meet the demands of live sound and monitor mixing with the highest level of quality and flexibility.
- This mixer offers comprehensive control, outstanding audio performance, and advanced routing capabilities that make it an ideal choice for large professional systems.
Applications used for the product:
- large places of worship
- Theaters and performance halls
- FOH systems and monitor mixing
- Musical groups and tours
- Broadcasting and audio production
- Universities and educational institutions
Summary and final advice:
- If you are looking for a professional 24-channel audio mixer that combines Soundcraft's high quality, Dual-Mode operating flexibility, and advanced routing capabilities for live audio and monitors, the Soundcraft GB8 – 24 Channel | RW5695SM is a solid choice and a reliable long-term investment.
