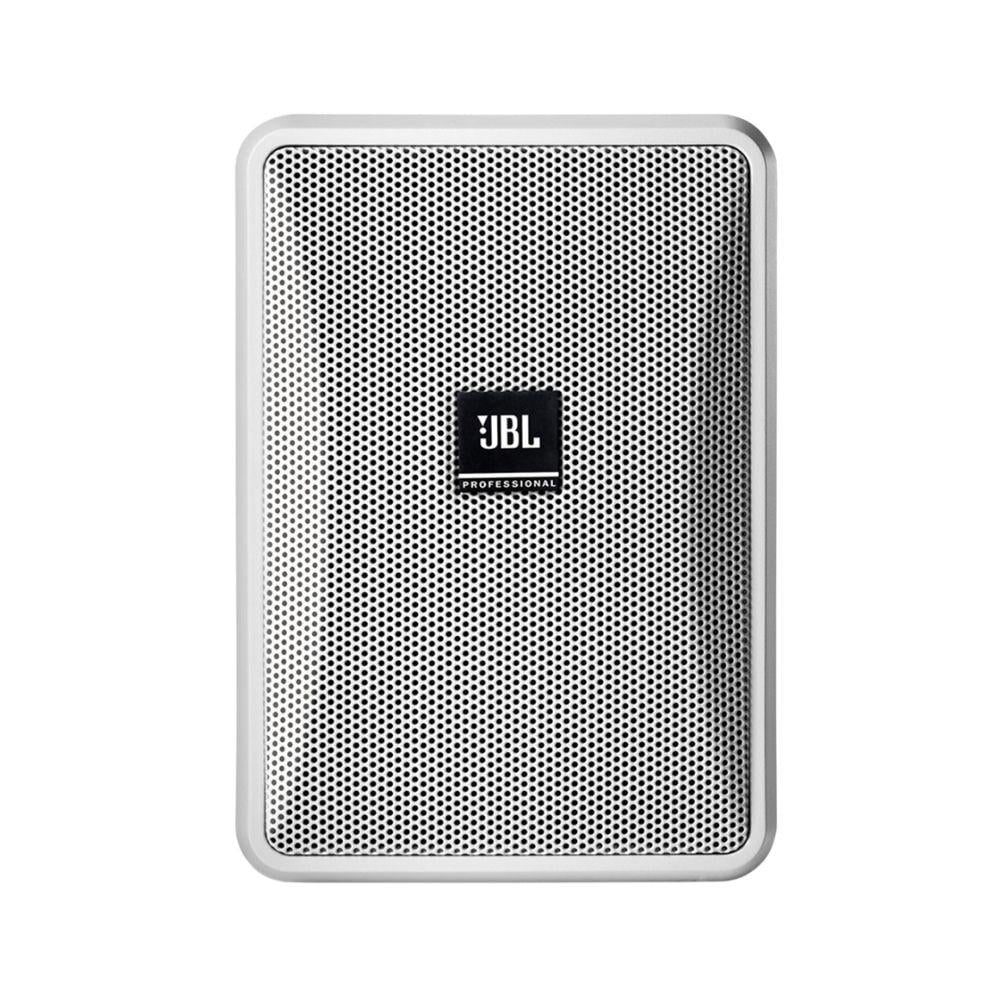

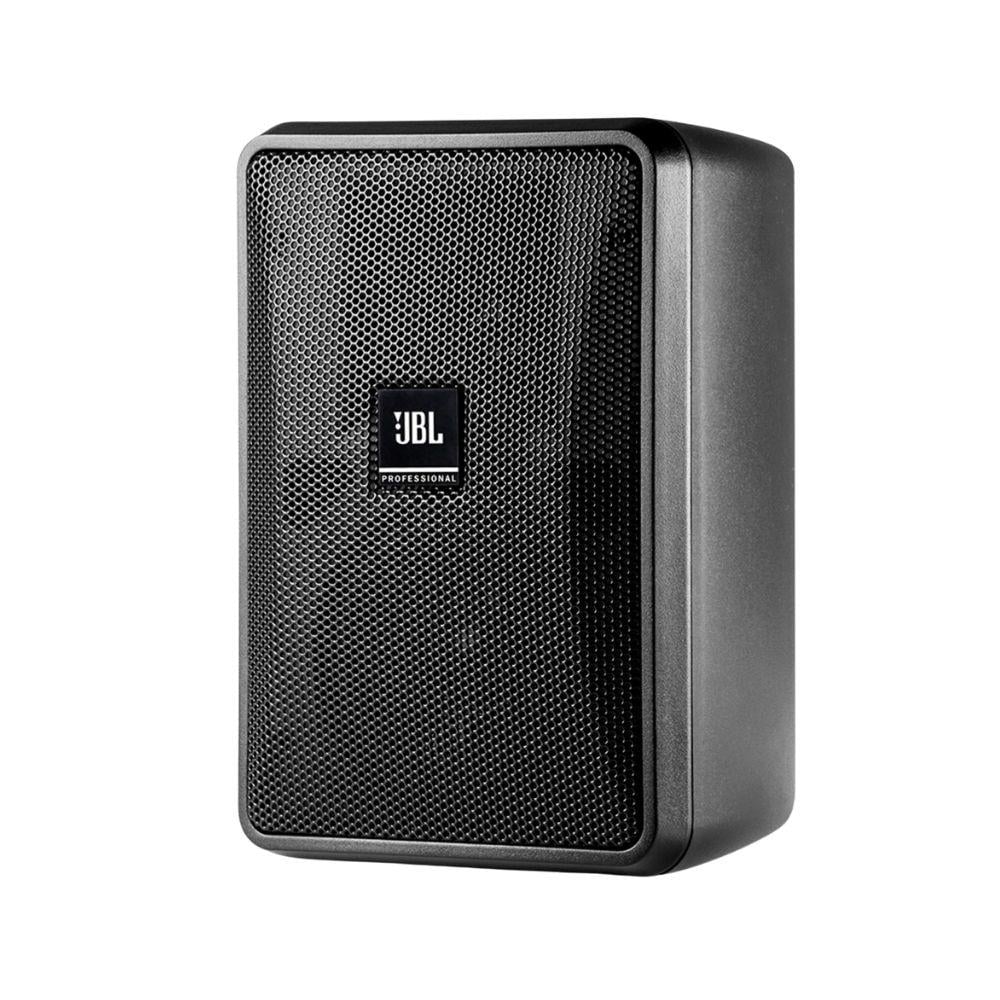

JBL 50W Wide Range Wall Speaker for Indoor and Outdoor Use, Model Control 23-1L
- The JBL Control 23-1L Mosque Speaker is one of the best compact speakers designed to deliver high-quality sound in both indoor and outdoor spaces. Combining a small size with powerful performance, it's an ideal choice for background music or audio announcements in commercial venues.
- Wall-mounted speaker On a 3-inch woven fiberglass bumper and a half-inch PEI tweeter, it ensures crystal-clear high-frequency response. With its sleek design and compact size, it blends seamlessly into any décor without drawing attention, while delivering surprisingly powerful performance for such a small footprint.
- With a continuous 50W/100W program power and 100° x 100° sound coverage, the Control 23-1L gives you a balanced, wide-spreading sound suitable for cafes, shops, sports clubs, and rain-protected outdoor projects.
Technical description:
- It depends The Control 23-1L mosque speakers feature precise JBL acoustic engineering and include:
- LF 3-inch speaker with a fiberglass cone to give the sound strength and stability.
- A PEI tweeter with a fluid cooling system delivers high frequencies that are pure and without distortion.
- A second-order crossover for professionally adjusting frequency distribution between the woofer and tweeter.
- The High Impact Polystyrene structure is resistant to ultraviolet radiation and external factors.
- Weather Resistant Design: Designed to withstand humidity, heat, and salinity.
- InvisiBall® Mounting System for flexible, precise, and effortless mounting at precise angles.
Technical specifications:
- Frequency range (-10dB): 70 Hz – 20 kHz
- Frequency response (+/-3 dB): 95 Hz – 19 kHz
- Operating capacity:
- 50W RMS
- 100W Program
- Sensitivity: 86 dB
- Maximum SPL: 103 dB Continuous — 109 dB Peak
- Coverage angle: 100°H × 100°V
- Impedance: 8Ω
- Crossover type: 2nd order LP / 2nd order HP
- Proposed protection: 70 Hz High-Pass 24 dB/oct
- Drivers:
- LF: 3" woven fiberglass woofer
- HF: 0.5" PEI tweeter
- Environmental protection:
- IP-44 (up to IP-55 with WeatherMax Grille)
- MilSpec 810 standards for humidity, salt, and UV
- Dimensions: 200 x 141 x 111 mm
- Weight: 1.6 kg
Key features:
- Very small size with powerful sound performance
- Wide 100° x 100° coverage, ideal for multi-directional spaces.
- Resistant to external factors with advanced protection
- Highly easy installation via InvisiBall
- Modern design suitable for upscale venues
- Balanced and clear sound suitable for music and advertising.
- High-quality materials to withstand long-term use
- Suitable for indoor and outdoor use
Product summary:
- The JBL Control 23-1L wall speaker offers a great audio experience in a small size, making it one of the best small, versatile speakers.
- Whether you need it for a retail store, cafe, gaming arcade, or even a protected outdoor location, it will give you high sound quality, wide coverage, and excellent stability under various operating conditions.
- It is a headset designed for projects that are looking for the perfect combination of elegant form and powerful sound, without the need for a large space or complex installations.
Additional features:
- It can be installed via a U-bracket or Ceiling-Mount Adapter
- WeatherMax network for improved outdoor performance
- Additional protection system from rain and spray
- The option to paint to match the decor of the place.
- Nickel and zinc screws to ensure rust resistance
Applications used for the product:
1. Restaurants and cafes
- An ideal solution for high-quality background music without distortion, with a small appearance that blends in with the decor.
2. Shops
- It offers an ideal sound level for advertisements and music with wide sound distribution.
3. Sports clubs and gyms
- A balanced sound that can withstand long-term operation without loss of quality.
4. Gardens and protected outdoor spaces
- Excellent weather resistance makes it suitable for walkways and balconies.
5. Schools and universities
- It works efficiently for audio and music announcements in corridors and halls.
6. Resorts and Hotels
- A soft sound that suits a calm atmosphere with an elegant appearance.
Summary and final advice:
- If you are looking for mosque speakers that are powerful, easy to install, can withstand various conditions, and deliver clear sound suitable for all everyday uses — the JBL Control 23-1L wall speaker is one of the best choices in its class.
- You will get from it performance that far exceeds its size, excellent sound coverage, and the ability to work indoors and outdoors with the same power and clarity.
- An ideal choice for commercial projects that require a sophisticated look and high sound quality without excessive cost or size.
Detailed product data (Data Sheet).
