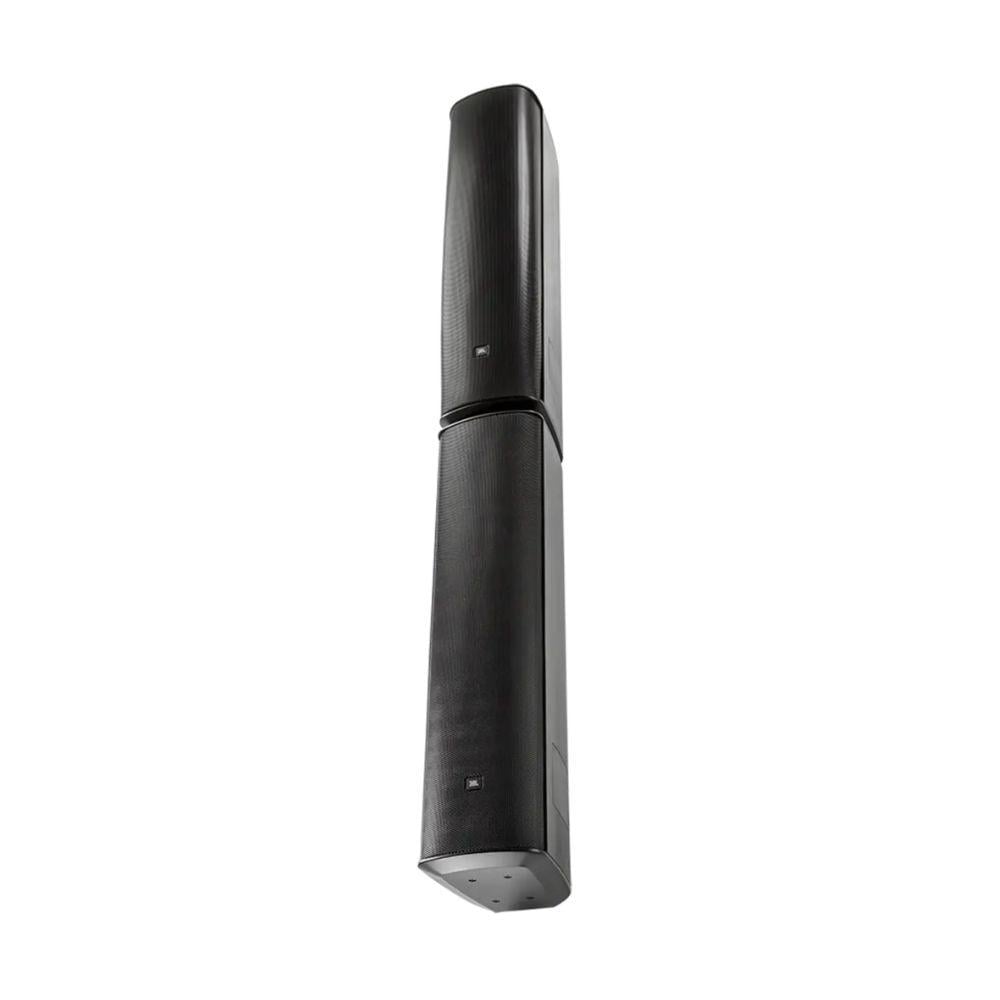

system Large 3000W column speakers from JBL with Constant Beamwidth technology for stunning sound coverage and integrated engineering control for large spaces. Model CBT 1000 + CBT 1000E System
- It is a vertical speaker system for theaters The JBL CBT 1000 + CBT 1000E is one of the most advanced upright speaker systems in the world, combining power and precision in a unique engineering design to deliver consistent, clear sound in all directions.
- The system is based on JBL’s patented Constant Beamwidth Technology™, which delivers balanced sound distribution across the full frequency range without distortion or dispersion.
- The system consists of two integrated units:
- CBT 1000 is responsible for full, medium and high frequency coverage.
- The CBT 1000E is an add-on unit specifically designed to extend the bass range and increase overall sound power.
- When the two units are combined, the system delivers superior performance with a continuous power of 3000 watts (12000 peak watts), with exceptional control over vertical and horizontal sound range, for precise coverage in mosques, theaters, grand halls, and professional acoustic projects.
Technical description:
- A large vertical speaker system uses advanced Analog Beamforming technology to precisely and precisely shape the sound beam, along with a Tapered Horizontal Waveguide that intelligently distributes sound horizontally:
- Wide angle (Wide) to cover short distances with complete clarity.
- Narrow angle to direct sound over long distances without losing balance or intensity.
- The vertical coverage angle can be adjusted through 16 different settings combining four "Up Pattern" and four "Down Pattern" modes, allowing the user to precisely define coverage according to the nature of the location, without the need for any external digital processing (DSP).
- The system also supports two sound modes:
- Music Mode with balanced sound and a wide frequency range.
- Speech Mode focuses on mid-range frequencies to improve speech clarity.
- The CBT 1000E add-on unit provides a deeper bass response down to less than 38 Hz, making the system ideal for applications that require deep, impactful sound.
Technical specifications:
- Type: Professional Constant Beamwidth Speaker System
- the components:

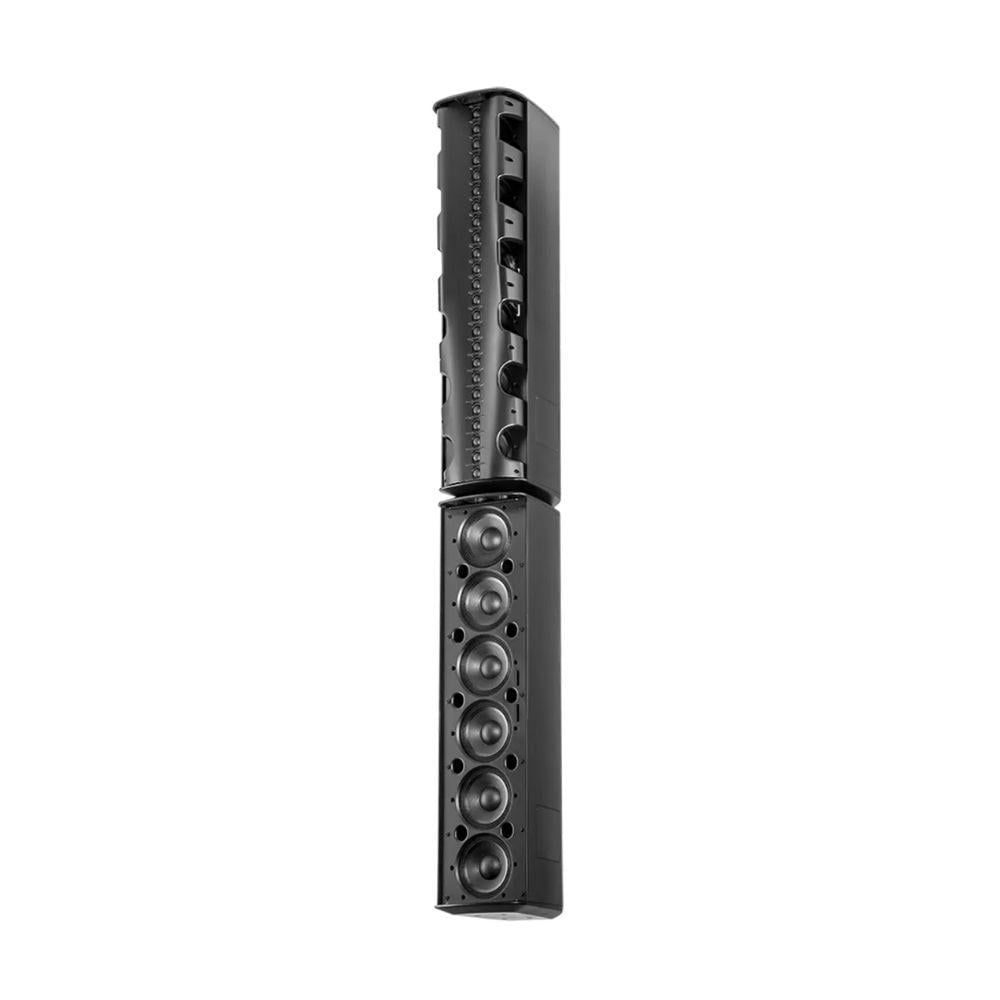

- CBT 1000: 12 x 6.5" Woffer + 24 x 1" Tweeters
- CBT 1000E: 6 x and an additional 6.5 inches of bass.
- Power: 3000W continuous (12000W peak) – for 2 hours / 2000W continuous (8000W peak) – for 100 hours
- Frequency range (-10 dB): 38 Hz – 20 kHz
- Vertical coverage: Adjustable with 16 different settings (4 upper positions + 4 lower positions)
- Horizontal coverage: 100° to 160° with a gradual distribution according to distance.
- Allergies:
- Maximum setting: 102 dB (speech) / 98 dB (music)
- Minimum setting: 95 dB (speech) / 91 dB (music)
- Maximum sound pressure level (SPL):
- 131 dB continuous / 137 dB peak (Speech Mode)
- 127 dB continuous / 133 dB peak (Music Mode)
- Impedance: 4 ohms
Materials:
- ABS body reinforced with glass fiber
- Corrosion-resistant coated aluminum front grille
- Environmental rating: IP55 waterproof and dustproof – compliant with MIL-SPEC 810 and ASTM G85 standards
- Dimensions (Height x Width x Depth): 2040 x 250 x 345 mm
- Net weight: 47.2 kg

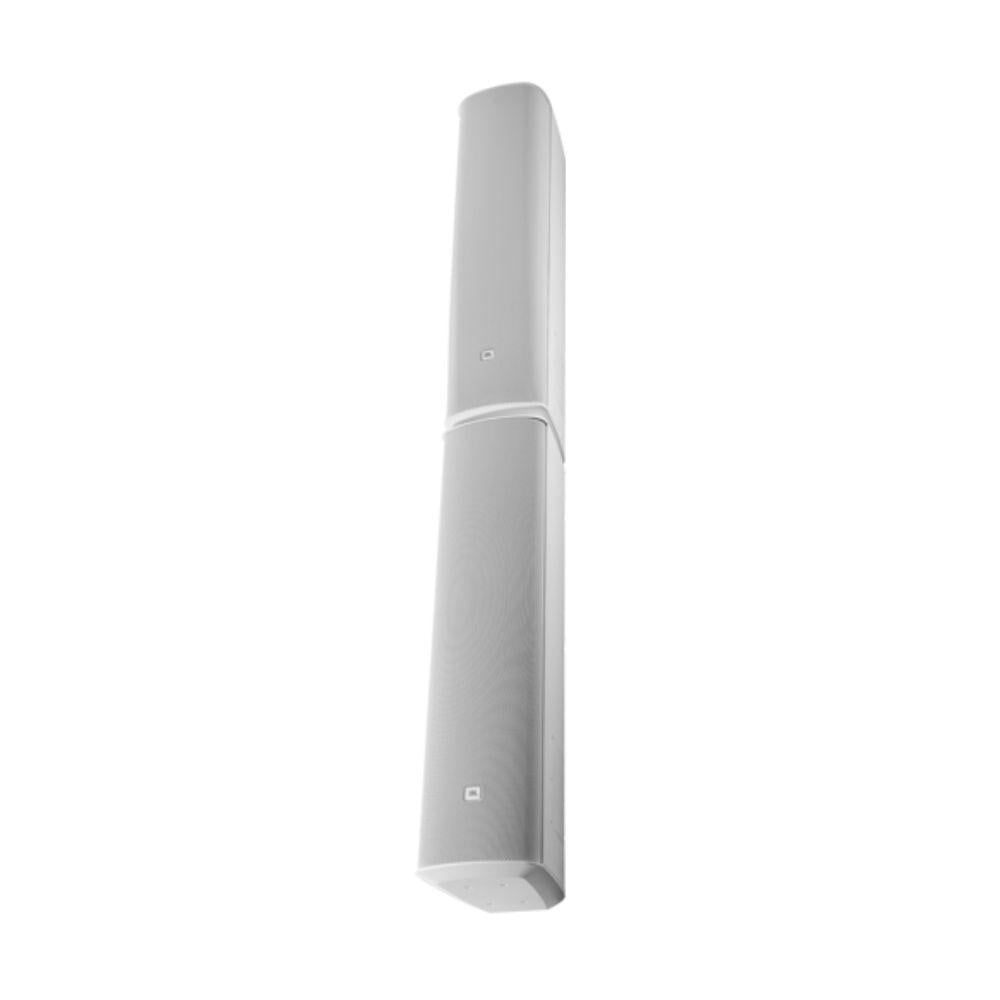

- Colors: Black (RAL9004) / White (RAL9016)
- Attached attachments:
- Dual wall mount with tilt and swivel function (Swivel/Pan Bracket)
- Coupler plate for connecting CBT 1000 and CBT 1000E
Optional accessories:
- MTC-PC2 Waterproof Cover
- MTC-CBT-FM3 Low-Protrusion Wall Mounts
- MTC-CBT-OS3 Offset Plate for mounting CBT 1000E on top of CBT 1000
- MTC-CBT-SUS3 Professional Dual Suspension Kit
Key features:
- Constant Beamwidth™ technology provides consistent and accurate coverage across all frequencies.
- Geometric control of the vertical direction with 16 settings to customize coverage by location.
- High power up to 3000 watts continuous for a powerful and clear audio experience.
- Gradient horizontal coverage (100° to 160°) for ideal distribution in large spaces.
- Deep bass response down to under 38 Hz thanks to the additional CBT 1000E module.
- The Tapered Horizontal Waveguide system provides intelligent distribution between near and far distances.
- Robust, weather-resistant structure with IP55 standard.
- The ability to play music and speech in customized modes.
- Flexibility in wall mounting or hanging thanks to professional brackets.
Product summary:
- The JBL CBT 1000 + 1000E Theater Pole Speaker System is the top-tier choice in professional speaker systems, delivering a complete audio experience that combines depth, power, and precision.
- Thanks to its tall, two-unit design and 32 active drivers, the system provides comprehensive coverage in large halls without the need for multiple additional speakers.
- It gives you a balanced sound from front to back with complete control over vertical and horizontal coverage.
Additional features:
- A coating resistant to ultraviolet rays, humidity, and atmospheric salinity.
- Lightweight, high-efficiency neodymium components.

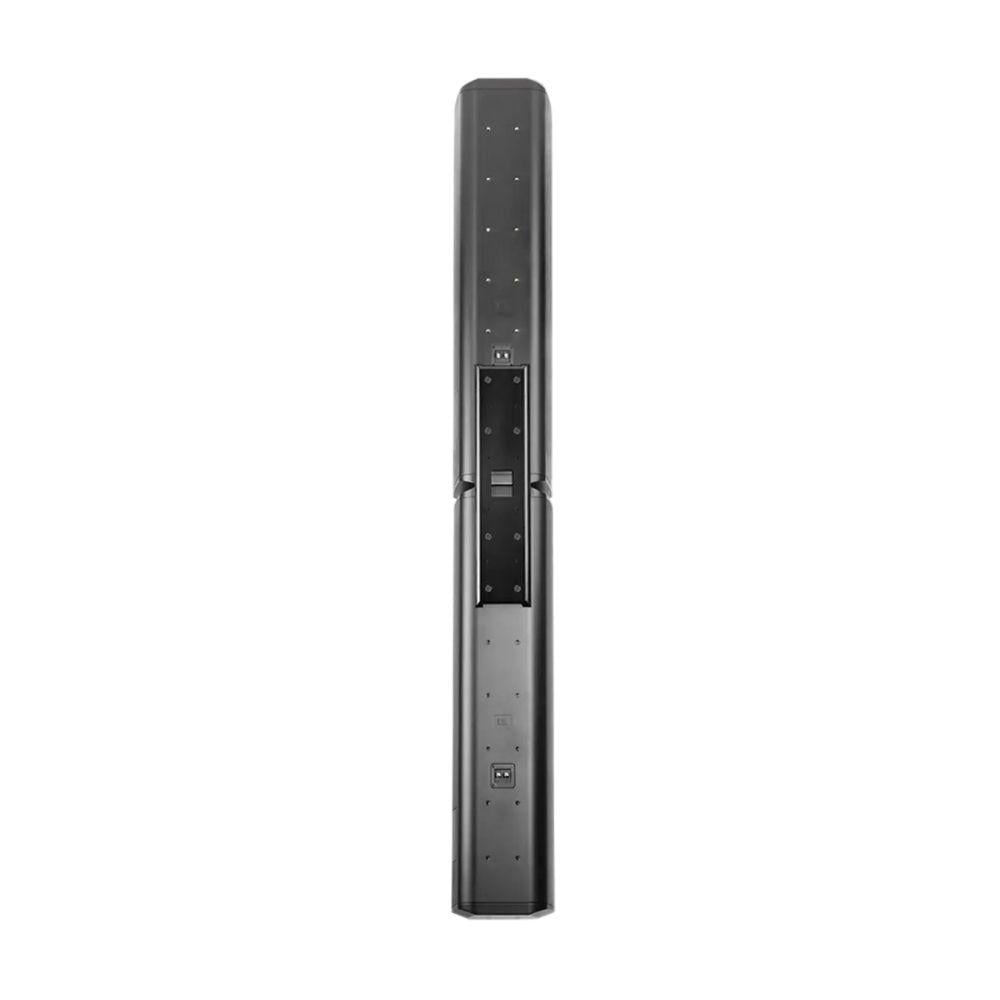

- 20 rear mounting points compatible with standard OmniMount® systems.
- Professional design suitable for fixed installation or hanging.
- A complete system without the need for an external DSP.
Applications used for the product:
- Mosques and major universities.
- Theaters and concert halls.
- Multipurpose halls and conference rooms.
- Stadiums and sports facilities.
- Government projects and cultural centers.
- Hotel halls and major shopping centers.
Summary and final advice:
- If you are looking for a large vertical speaker system Combining superior power and pinpoint accuracy in sound coverage, the JBL CBT 1000+1000E is the perfect choice.
- The system combines stunning professional performance with advanced Beamforming technologies that give you complete control over the sound and its quality within any space.
