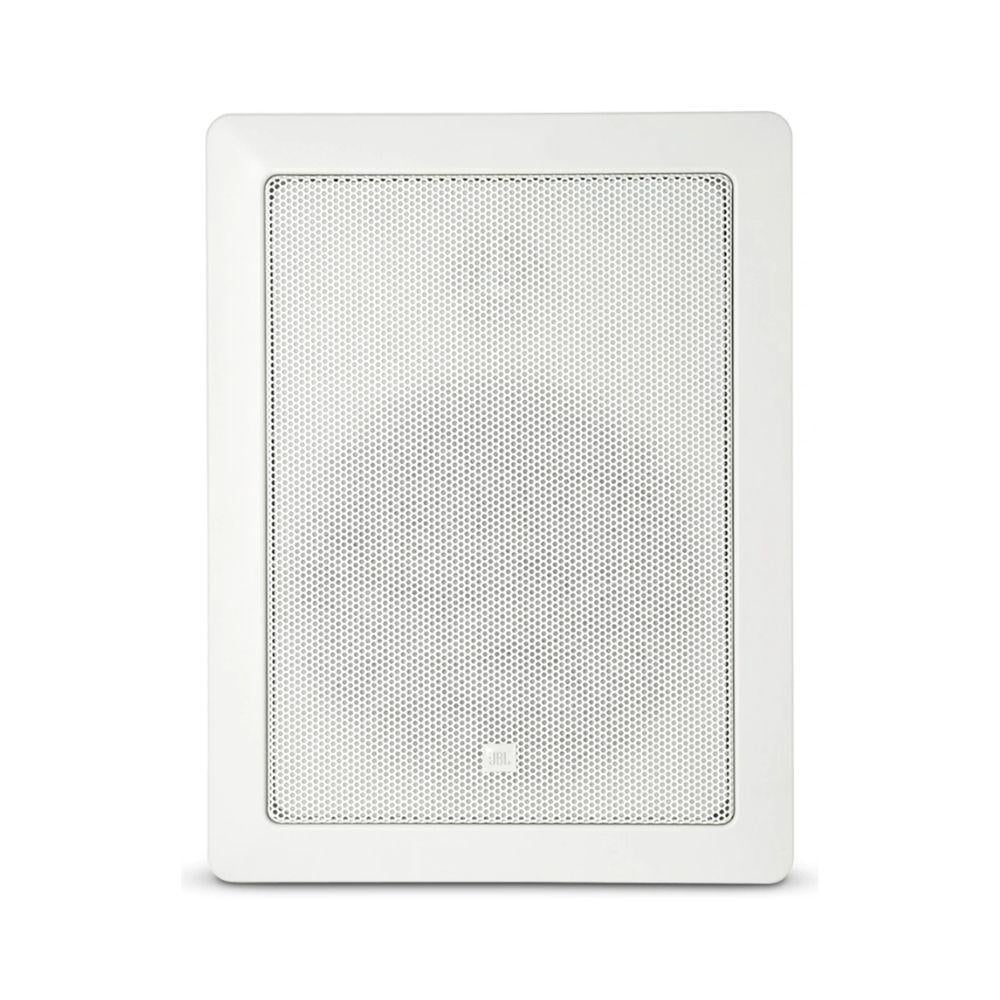

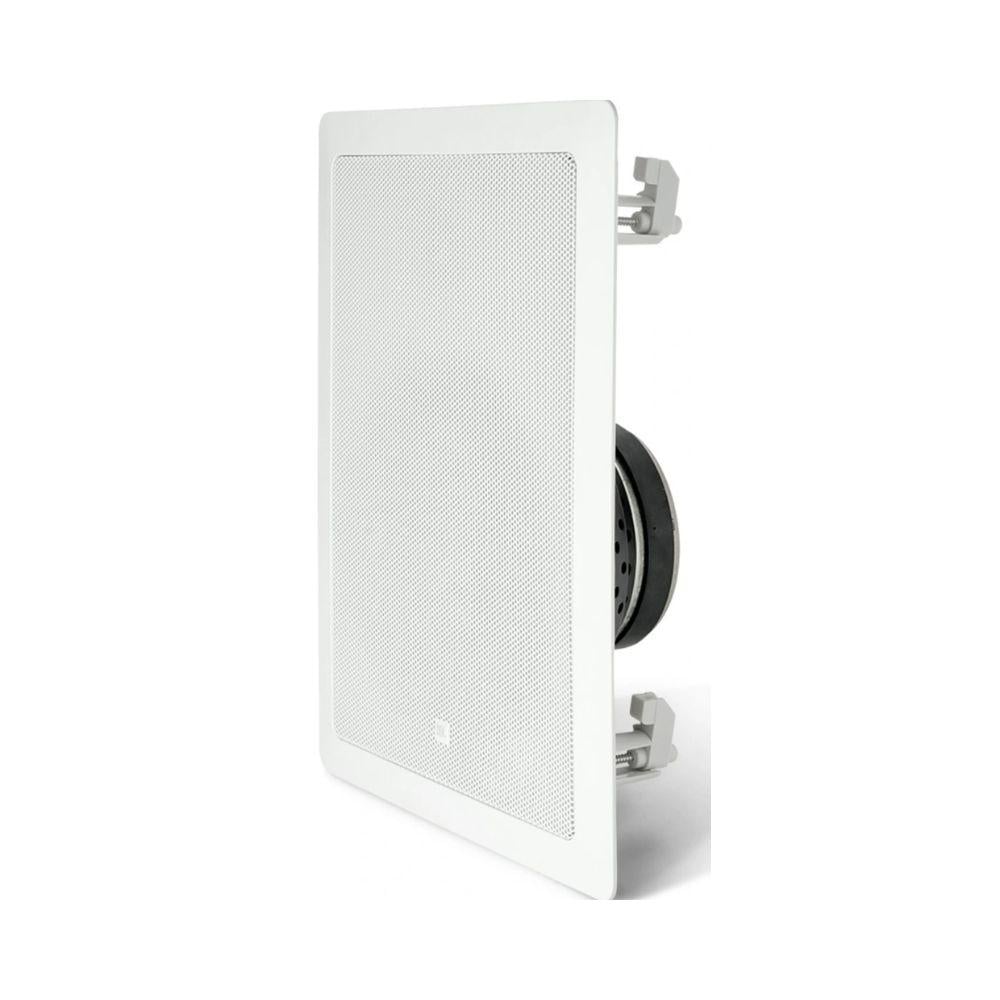

Wall speaker 240W Wall Mount — Professional Sound Performance Control 128 WT with 70/100V Adapter for Smart and Balanced Distribution by JBL
- The JBL Control 128 WT wall speakers combine high sound quality with a stylish wall design to deliver a superior audio experience with uniform distribution and exceptional clarity.
- This wall-mounted speaker is part of the JBL Control Contractor® professional series, designed for applications that require superior audio performance in a discreet design suitable for luxury environments such as hotels, meeting rooms, fine dining restaurants, galleries, and smart homes.
- Thanks to its precise engineering components and two-way system, the speaker offers a wide frequency range and integrated sound depth, with the ability to be connected to central sound systems thanks to the built-in 70/100V converter, making it ideal for large multi-speaker projects.
Technical description:
- The Control 128 WT wall speakers are designed to deliver clear, professional sound, intelligently distributed through high-performance components:

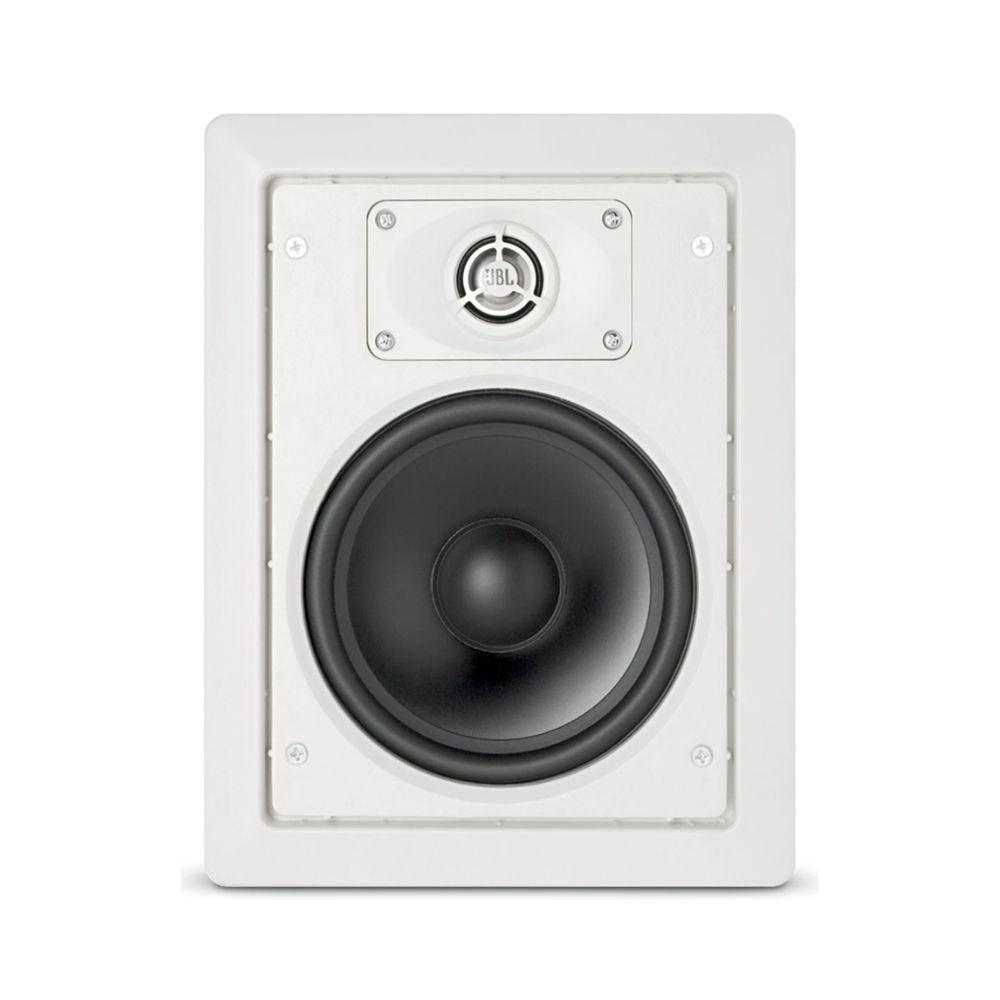

- Low-frequency amplifier (Woofer):
- The 8-inch (200 mm) size is made of polymer-coated aluminum with a pure Butyl Rubber surround, giving it superior ability to produce a strong, clean bass without distortion or unwanted vibrations.
- High-frequency amplifier (Tweeter):
- A 1-inch pure titanium dome that is swivel-aimable up to -10 degrees, to provide accurate and balanced acoustic coverage, with a low-deviation design that reduces reflections and increases the clarity of acoustic details.
- Audio Crossover Network:
- It is of the 2nd Order type for both low and high frequencies, to provide a natural and smooth transition between sound layers without distortion.
- Built-in 70/100V converter:
- The speaker allows for easy connection to central audio systems, with multiple conversion options including:
- 70V: (50W / 25W / 12W / 6W)
- 100V: (50W / 25W / 12W)
- This makes it ideal for projects that require multiple speakers to be run from a single source with high efficiency.
Technical specifications:
- Type: Professional two-way in-wall loudspeaker
- Electrical power:
- 60 Watts (Continuous)
- 120 Watts (Program)
- 240 Watts (Peak Power)
- Frequency range (-10 dB): 30 Hz – 20 kHz
- Sensitivity: 90 dB SPL (1 W/1 m)
- Coverage angle: 180° horizontal × 160° vertical
- Nominal impedance: 8 ohms
- Audio components:
- LF: 8-inch aluminum-coated polymer with a butyl rubber perimeter
- HF: 1 inch steerable titanium dome
- Built-in converter: 70/100V with multiple power control tabs
- Input connectors: Euroblock-type Connector (up to 14 AWG wire)
- Crossover system: 2nd Order for both lanes
- The ideal air space behind the speaker: 40 – 80 liters (1.4 – 2.8 ft³)
- Dimensions (Height x Width x Depth): 334 x 257 x 110 mm
- Mounting hole (Cutout): 300 x 225 mm
- Net weight: 3.3 kg
- Included accessories: Wall cutting template + paint protection cover
- Optional accessories: WB8 Rough-In Frame for installation during construction
Key features:
- A built-in 70/100 volt converter allows the speaker to be easily integrated into commercial audio systems.
- A stylish wall design that blends harmoniously with any interior decor without any visible protrusion.
- High electrical power (240 watts) is suitable for large projects that require strong and stable sound.
- A wide frequency range of 30Hz to 20kHz delivers rich, clear sound in all registers.
- Steerable titanium dome for precise sound distribution according to the listeners' location.
- An ultra-wide coverage angle (180° × 160°) ensures balanced sound in all directions.
- A precise crossover system delivers a natural and consistent sound without any interference.
- Excellent manufacturing materials ensure long lifespan and stable operation even in environments with frequent use.
Product summary:
- A wall-mounted speaker The JBL Control 128 WT is the next generation of professional wall speakers designed to deliver clear, powerful sound with a comprehensive coverage angle.
- It gives the user flexibility in installation and operation across 70/100 volt systems, with balanced sound performance suitable for both large and small spaces.
- It is ideal for projects that require integrating sound with architectural beauty, without sacrificing the quality of sound performance.
Additional features:
- The frame and outer mesh can be painted to match the wall color.
- A design resistant to relative humidity that is suitable for semi-open environments.
- Consistent performance when using multiple speakers in the same audio system.
- Easy installation with ready-made professional accessories.
- A tight internal design reduces noise and vibrations within the wall.
Applications used for the product:
- High-end hotels and restaurants.
- Meeting rooms and conference halls.
- Reception halls and shopping centers.
- Museums and art galleries.
- Villas, smart homes, and modern residential buildings.
- Commercial or governmental facilities that use centralized sound systems.
Summary and final advice:
- If you're looking for professional 240W wall speakers that combine high sound quality with the flexibility to operate on a 70/100V system, then this wall speaker is for you. The JBL Control 128 WT is the ideal choice.
- It offers a perfect balance between superior acoustic performance, elegant design, and ease of integration with central systems, making it ideal for high-level architectural and institutional projects.
Detailed product data (Data Sheet).
