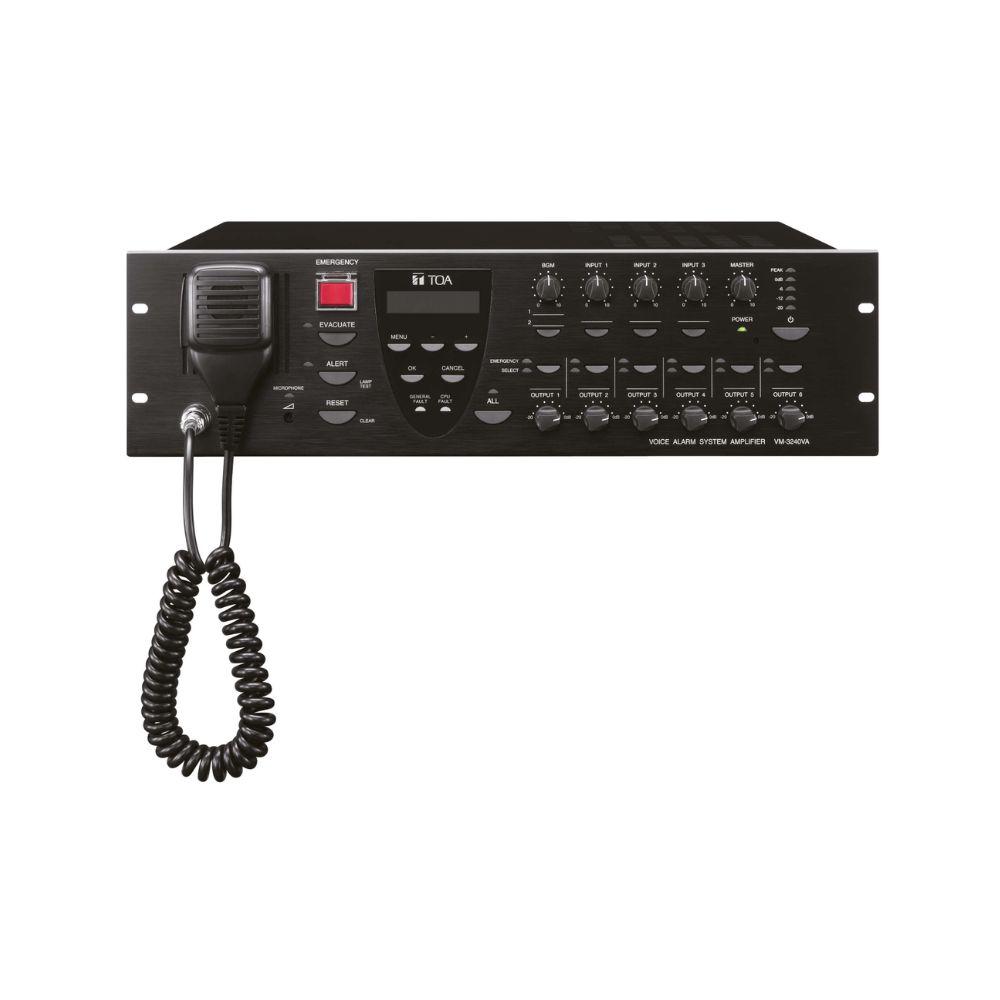

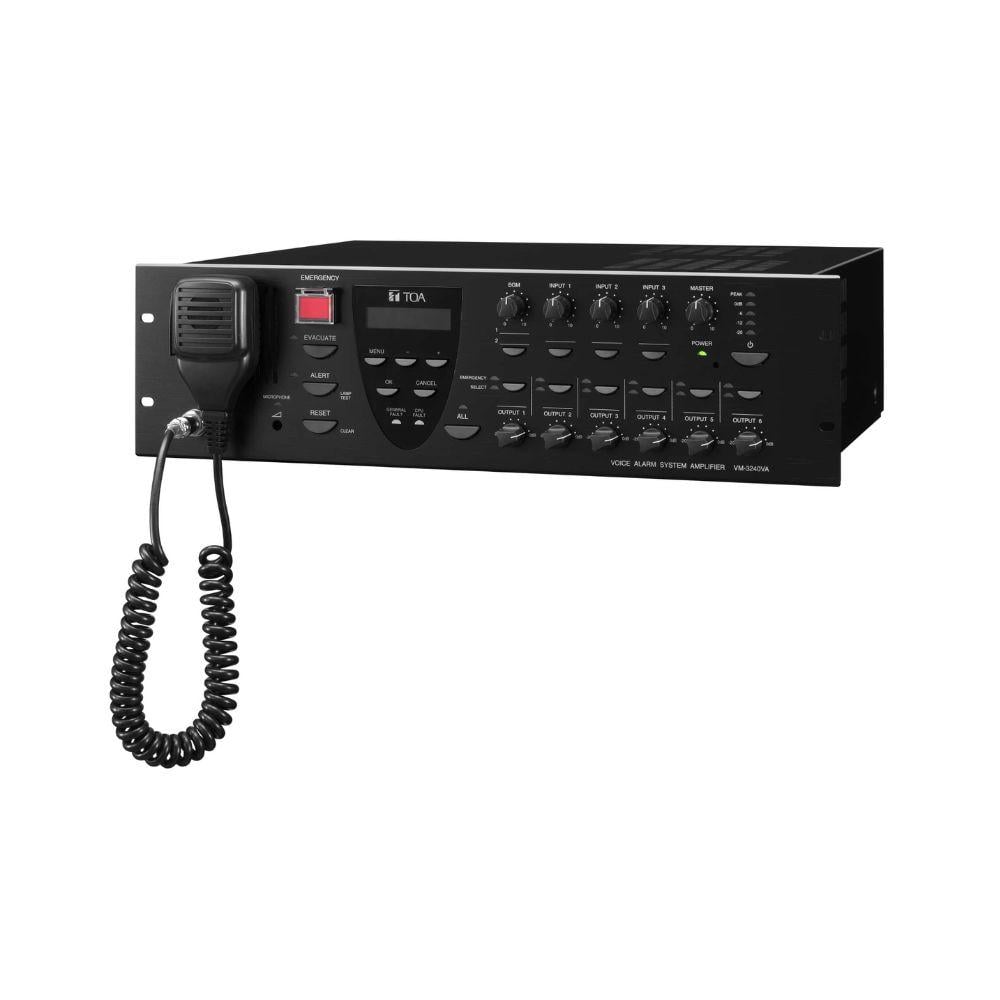

TOA VM-3240VA 240W System Management Amplifier with 6-Zone Control
- The VM-3240VA Amplifier and System Management System is the ideal solution for public address and voice alarm systems, combining high performance with advanced technologies to deliver clear, powerful audio distribution across multiple zones. With an output of up to 240 watts distributed across six independent zones, the system enables accurate and efficient playback of general or emergency voice messages, while supporting high-quality electronic message storage for six general announcements and two emergency messages.
- The Amplifier Fire is designed to high standards to operate in a variety of environments, such as commercial buildings, universities, markets, and airports, ensuring stable performance even under harsh operating conditions.
Technical description:
- Integrated system for managing public sound and alarms.
- Ability to connect up to 8 control inputs and 8 control outputs.
- Supports 8 remote microphones (4 emergency + 4 regular).
- Durable aluminum and steel design ensures durability and long-lasting use.
- Menu-based LCD display for easy control and setup.
- Multiple status indicators: such as zone selection, alarm activation, general faults, CPU status, front microphone, and password.
Technical specifications:
- Power supply: 230V AC, 50/60Hz.
- Power consumption: 600W (at rated output), 260W (EN 62368-1).
- Frequency range: 50Hz – 20kHz.
- Rated output: 240W distributed over 6 zones.
- Input control: DC 24V, current less than 2mA.
- Output control: DC voltage 30V, current less than 10mA.
- Operating temperature: -5°C to +45°C.
- Distortion: Less than 0.7% at 1 kHz (at rated power).
- Signal to noise ratio (S/N): 85 dB or more.
- Dimensions: 482 x 132.6 x 431.2 mm.
- Weight: 16.5 kg.

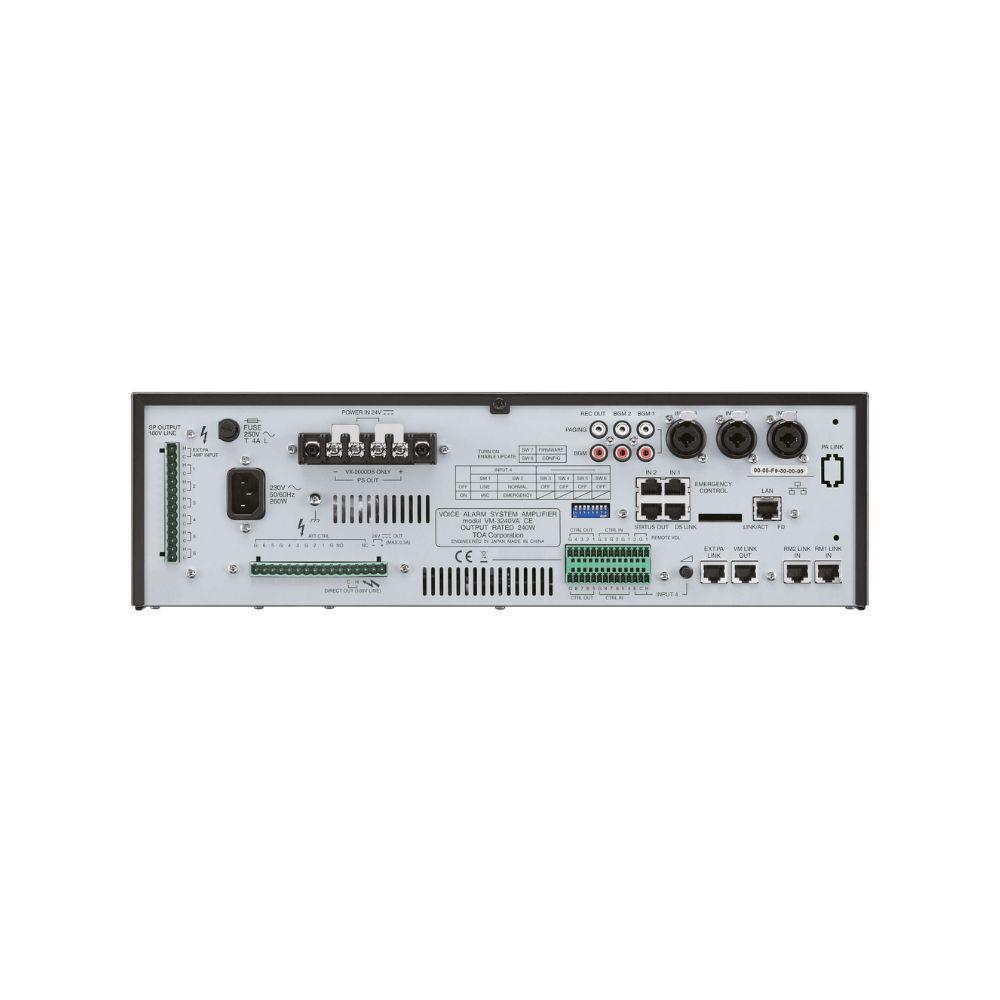

Inputs:
- 3 variable MIC/LINE (XLR/Phone) inputs.
- Additional MIC/LINE input on removable terminals.
- BGM (RCA) inputs.
- 100V Line external amplifier input.
- Outputs:
- 6 headphone outputs via terminal block.
- Recording or paging output (RCA).
Main features:
- Powerful power of up to 240 watts with distribution over 6 independent zones.
- Full support for emergency systems with pre-stored messages.
- Clear front-end indicators of system status and zones.
- Easy installation and connection thanks to removable terminals.
- High quality aluminum and steel construction to ensure durability.
Product Summary:
- More than just an amplifier , the VM-3240VA is an integrated audio management unit designed for large systems that require precise audio distribution with the ability to integrate public announcements and emergency alarms. It's ideal for large buildings that require clear, effective audio with complete zone control.
Additional features:
- Support password to set security.
- Internal connectors comply with European quality standards.
- Ability to expand thanks to its compatibility with external systems.
- Can be mounted in a standard 19" rack.
Applications used for the product:
- Commercial buildings and complexes.
- Universities and schools.
- Shopping malls.
- Airports and train stations.
- Grand halls and conference rooms.
Summary and final advice:
- If you are looking for a powerful and reliable amplifier for radio and alarm systems that covers multiple areas with consistent performance and advanced safety features, the Amplifier The VM-3240VA is the perfect choice. Invest in this unit for a complete audio system that combines efficiency, durability, and flexibility.
