High-power 12-inch outdoor speaker, 400 watts, two-way, all-weather, compliant with EN54-24 safety standard, model AW266-LS

External speaker High-power 12-inch, 400-watt, bidirectional, all-weather design, compliant with EN54-24 safety standards, model AW266-LS

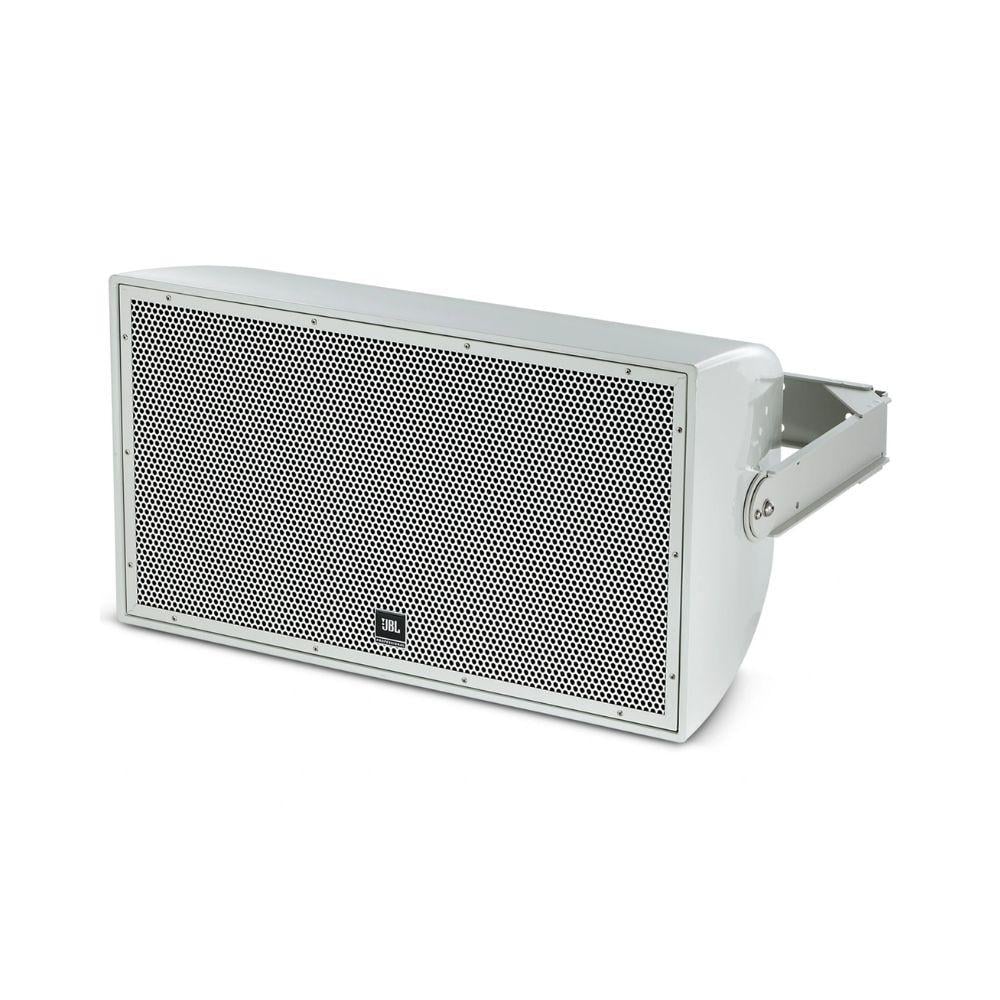

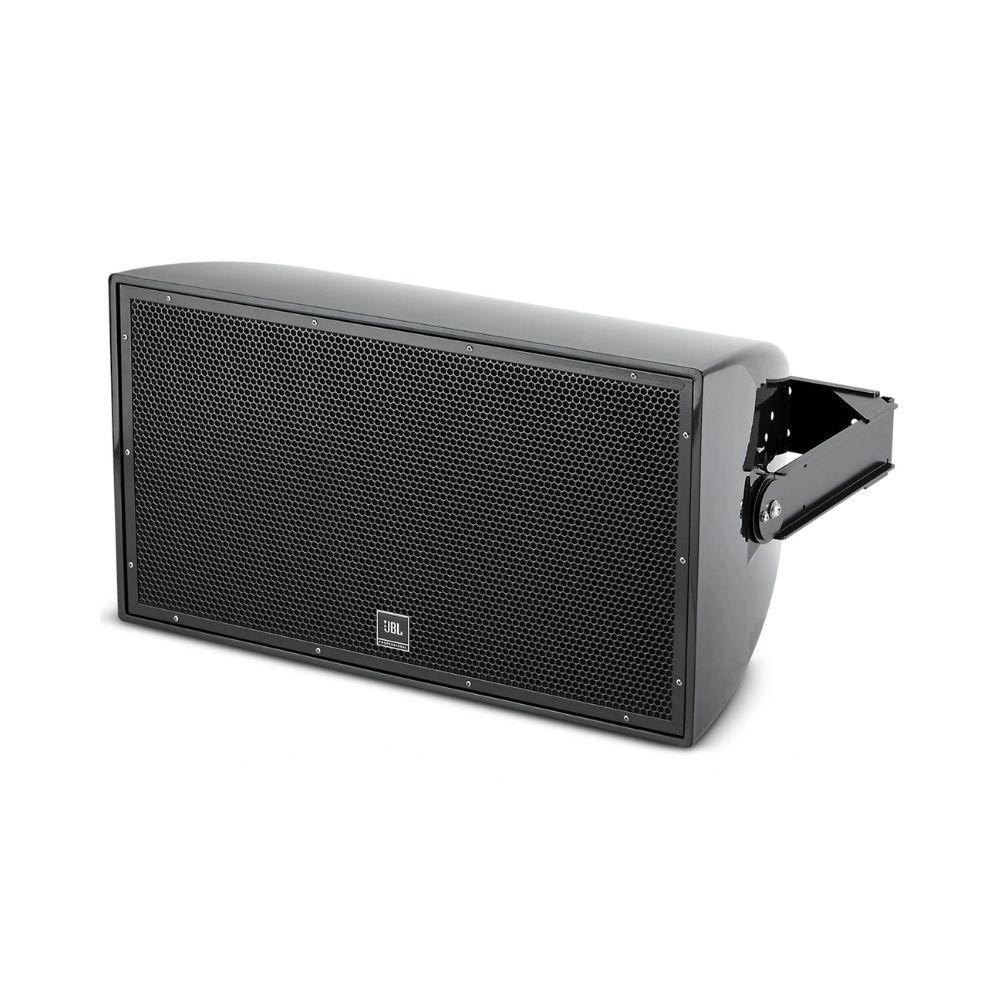

• The JBL AW266-LS wall speakers are designed to deliver powerful, clear audio performance in extreme outdoor environments, with full compliance with the EN54-24 standard for fire alarm and emergency voice paging systems.
• The headset features a weather-resistant design with an outer casing made entirely of fiberglass, ensuring its resistance to rain, humidity, sunlight, and harsh operating conditions.

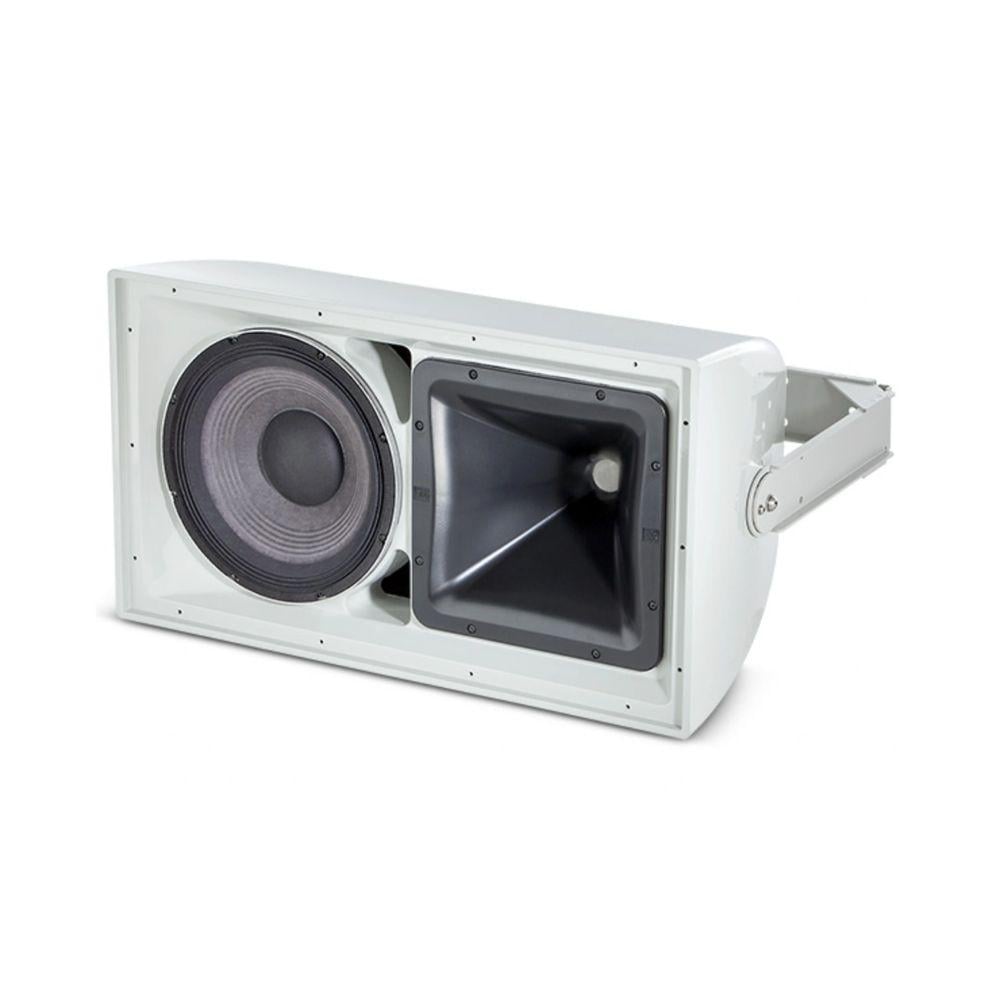

• The outdoor speaker uses a high-efficiency 12-inch Differential Drive® driver with a 2432H high-frequency driver to ensure powerful sound clarity and balanced 60° × 60° coverage suitable for large spaces such as stadiums, parks, amusement parks, entertainment facilities, and outdoor decks.

Technical description:

• The AW266-LS wall speakers rely on a PT Progressive Transition waveguide to deliver consistent, controlled directional audio coverage that reduces distraction and increases sound clarity.
• The speaker supports 8-ohm operation or the use of a 70V/100V 400W transformer, making it ideal for large projects with wide sound distribution.
• Its fiberglass construction with a UV-resistant gelcoat makes it an excellent choice for long-term outdoor use. It also comes with a U-bracket for easy installation at any desired angle.

Technical specifications:

• System type: High-power 2-way external speaker
• System power: 400W continuous (1600W peak)
• Frequency range:
• (-10dB): 54 Hz – 20 kHz
• (±3 dB): 102 Hz – 18 kHz
• Allergies:
• 98 dB @1W/1m
• 87 dB @1W/4m
• Maximum sound pressure level:
• 125 dB peak (131 dB Peak)
• Coverage angle: 60° × 60°
• Impedance: 8 ohms
• 70/100V transformer:
• 70V: 400W / 200W / 100W
• 100V: 400W / 200W
• Internal speakers:
• LF: 2262H – 12" Dual Voice Coil
• HF: 2432H – 1.5" Exit / 3" VC
• Material: Weather-resistant fiberglass body
• Environmental standard: IP55C
• Dimensions: 409 x 732 x 452 mm
• Weight: 25.2 kg
• Color: Gray or Black
• Accessories: U-Bracket for mounting
• Front grille: 3 layers of corrosion-resistant stainless steel

Key features:

• Certified to EN54-24 standard for use in call and emergency systems.
• Powerful sound performance thanks to the 12-inch Differential Drive® driver.
• Balanced 60x60 acoustic coverage suitable for large spaces.
• High weather-resistant Fiberglass body.
• High operating power 400W with 1600W peak.
• High-fidelity sound with low distortion.
• Full support for 70V/100V connection.
• It comes with a mounting bracket ready for outdoor projects.

Product summary:

• Wall speakers The JBL AW266-LS speaker is the ideal speaker for large projects that require clear, powerful, and reliable sound in all weather conditions.
• It provides a professional level of sound quality with an international safety certification that makes it suitable for facilities requiring a reliable sound alarm.

Additional features:

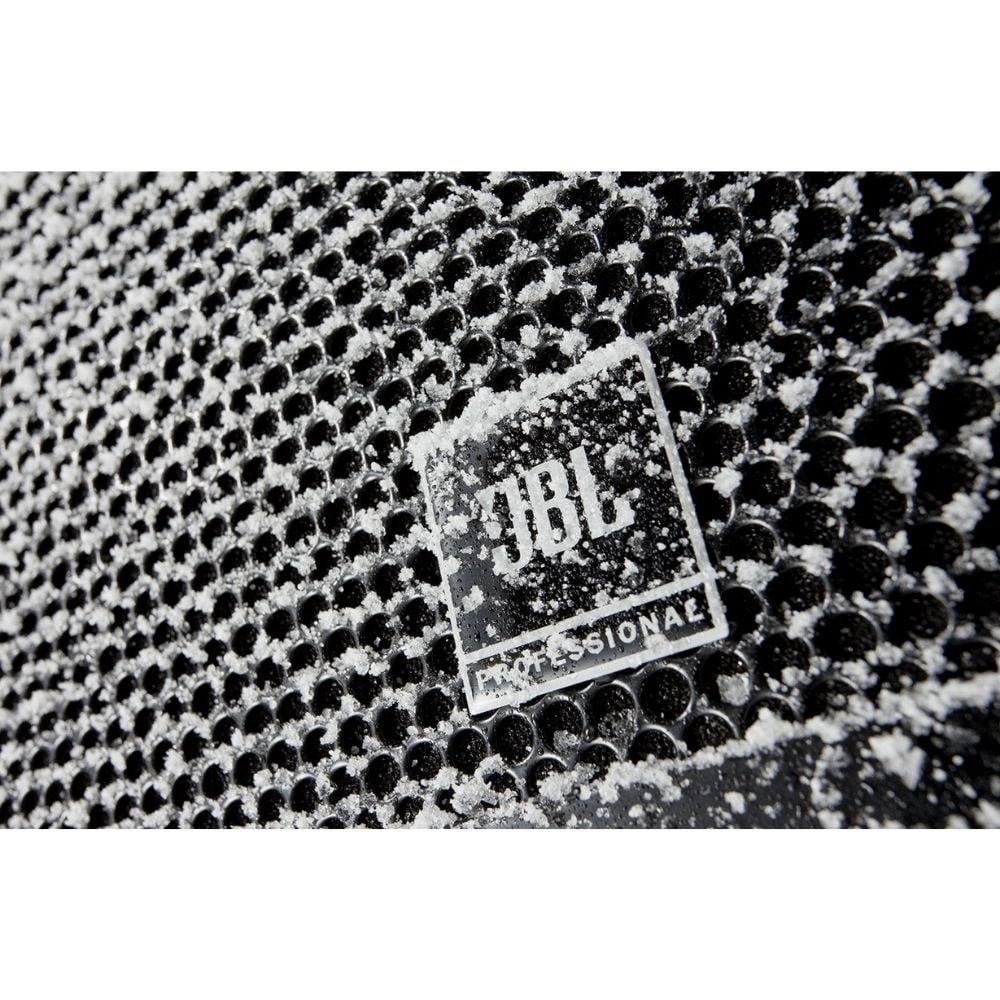

• Three-layer front mesh for added protection against rain and dust.
• Multiple mounting points for precise speaker angle adjustment.
• High-quality audio processing delivers excellent clarity even at high volume levels.
• High resistance to salt, moisture and ultraviolet radiation.
• Compatible with Crown amplifiers and HiQnet systems.

Applications used for the product:

• sports stadiums
• amusement parks
• External centers
• Gardens and parks
• Swimming pools and resorts
• Waterfronts
• Outdoor shopping centers
• Schools and universities
• Public places requiring emergency acoustics EN54-24
• Massive paging and alert systems

Summary and final advice:

• If you are looking for a high-power outdoor speaker with absolute reliability and compliance with EN54-24 safety standards with clear sound in all conditions, the JBL AW266-LS wall speakers are an excellent choice for any professional project that needs strong, consistent sound all year round.
• Suitable for government projects, large facilities, and outdoor events.

Detailed product data (Data Sheet).
