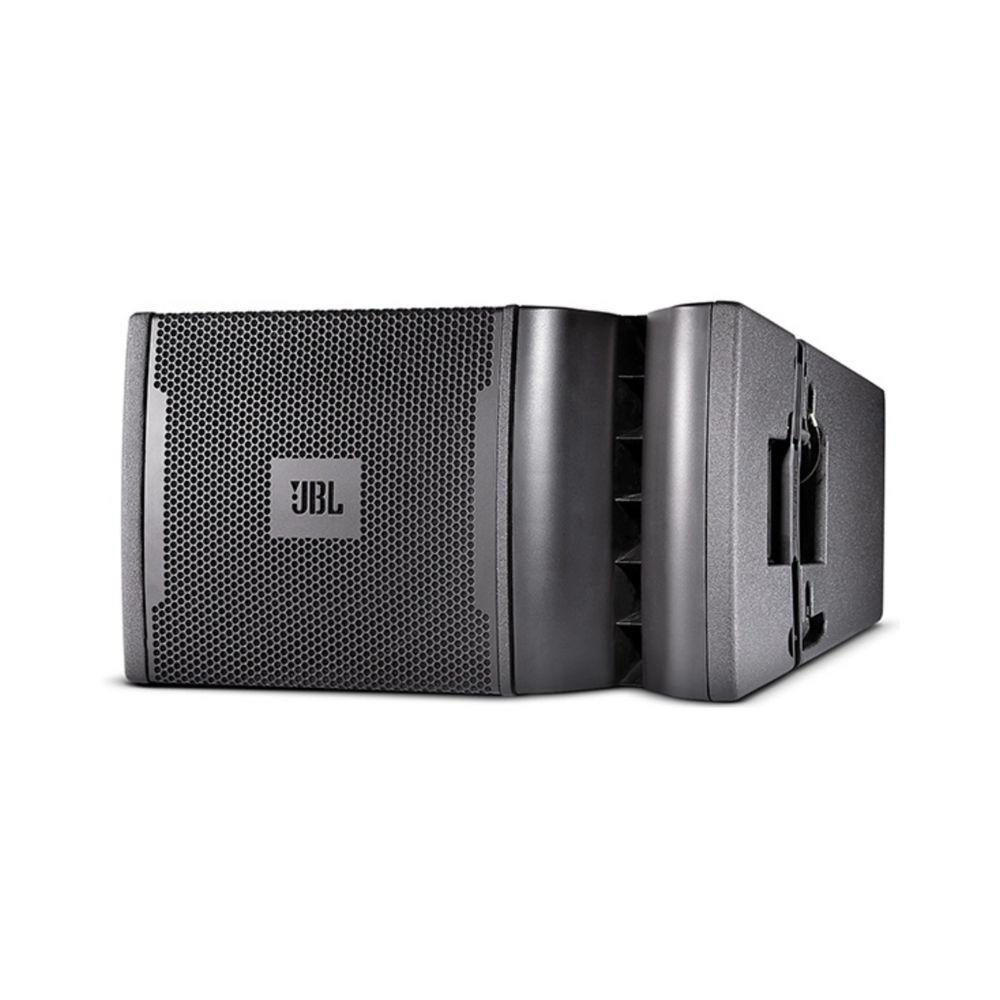

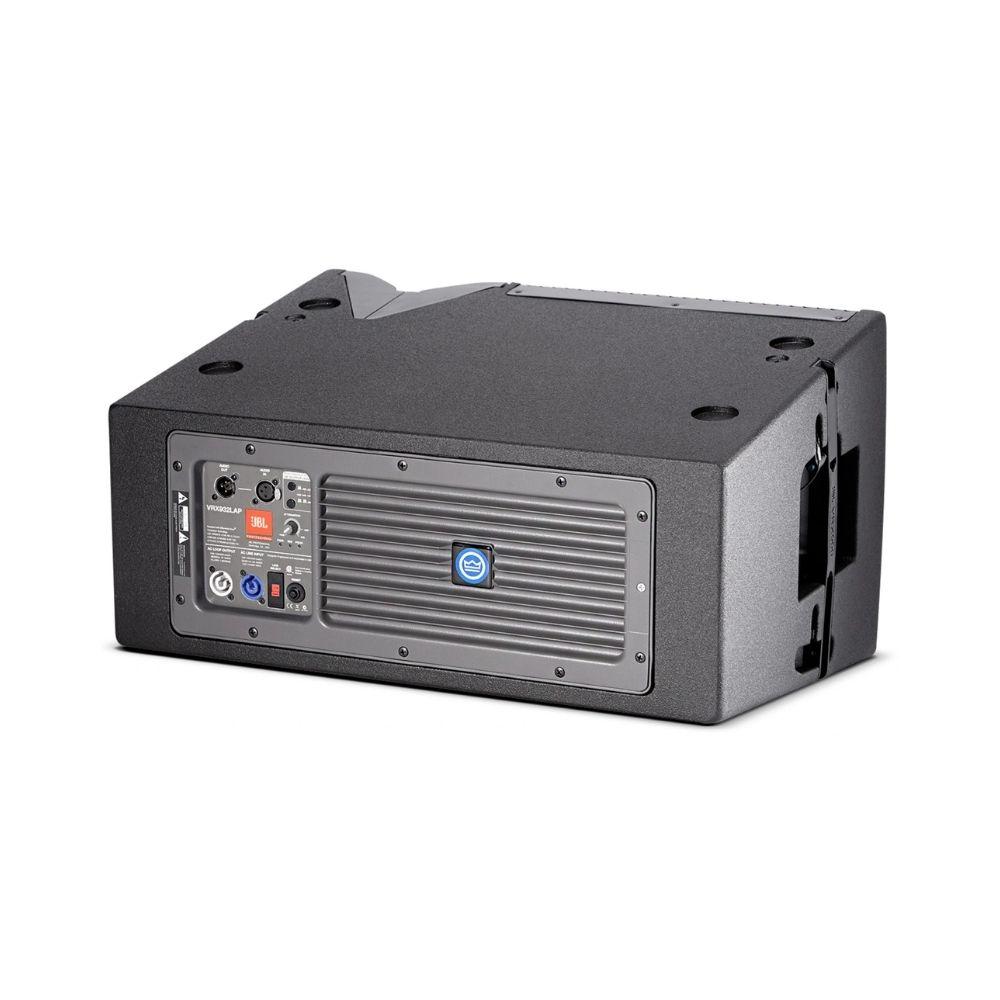

JBL VRX932LAP 12-inch 1750W Professional Line Array Speaker System for High Clarity and Precision
- It is considered The JBL VRX932LAP party speaker is one of the most powerful compact audio systems in its class, combining power, clarity, and ease of installation in a compact and lightweight design.
- It was developed to suit theaters, halls, and events that require professional Line Array performance without the need for bulky, long-term systems.
- It comes equipped with a Crown®-designed JBL DrivePack® DPC-2 amplifier to deliver 1750 watts (peak) power with integrated DSP processing for system tuning and frequency distribution with amazing precision.
- Thanks to Differential Drive® technology and a lightweight 12-inch neodymium tweeter, these large party speakers give you exceptional performance power with three high-quality 2408J compression drivers for precise and clear sound details.
- It is designed with a Constant Curvature Waveguide system to ensure consistent and uniform sound distribution in all corners of the space, making it the first choice for professionals in mobile and fixed sound systems.
Technical description:
- Operating system:
- Powered Line Array Party Speaker with Two-Way Active System.
- It relies on a highly efficient 1750W peak DrivePack DPC-2 Class D amplifier, built inside the speaker to provide instant control and high response.
- Audio components:
- LF Driver: JBL 2262FF 12-inch (305 mm) amplifier with Differential Drive® technology.
- HF Drivers: Three 1.5-inch (38 mm) JBL 2408J high-frequency compression amplifiers.
- Control and Processing (DSP):
- An integrated digital processing system controls the balance of sound, frequencies, and distribution of sound power between components, with the ability to adjust attenuation (0–16 dB).
- Exterior design:
- A robust frame made from high-quality 15mm thick Birch Plywood, coated with a scratch- and weather-resistant black DuraFlex™ finish, with a powder-coated, perforated steel front grille for impact and moisture protection.
- Composition and commentary:
- Equipped with a built-in rigging system for easy connection between speakers, with a dual-angle base for mounting on poles or stands, or hanging in a matrix of up to five units.
Technical specifications:
- Type: Two-Way Powered Line Array System
- ability:
- 1750 watts (peak)
- 875 watts (continuous)
- Power distribution:
- LF: 750 watts
- HF: 125 watts
- Frequency range (-10 dB): 57 Hz – 20 kHz
- Frequency response (+/-3 dB): 75 Hz – 20 kHz
- Maximum sound pressure (SPL): 136 dB
- Coverage angle: 100° horizontal × 15° vertical
Audio components:
- LF Driver: 1 x JBL 2262FF (12 inch)
- HF Drivers: 3 x JBL 2408J (1.5 inch)
- Input: XLR (with Loop output)
- Control: Attenuator from 0 to 16 dB
- Electrical energy:
- 90–132 VAC or 216–264 VAC, 50/60Hz frequency
- Consumption: 6A at 120V / 3A at 240V
- Electrical connections: Neutrik PowerCon (NAC3MPA/NAC3MPB)
- Dimensions (height x width x depth):
- 349 × 597 × 444 mm (13.75 × 23.5 × 17.5 inches)
- Net weight: 24 kg (52 lbs)
- Material: Birch wood, 11 layers (25/15 mm)
- Color: Black DuraFlex™
- Front grille: Powder-coated perforated steel with transparent acoustic foam
Key features:
- Built-in 1750W amplifier power ensures professional performance without the need for external amplifiers.
- Lightweight and portable design ideal for quick setup and frequent displays.
- Three HF compression units provide exceptional clarity at high frequencies.
- A 12-inch speaker with Differential Drive® technology delivers high sound power with a lighter weight.
- Constant Curvature Waveguide system for uniform sound distribution in all directions.
- A smart, integrated suspension system for mounting speakers in arrays quickly and easily.
- A robust birch wood frame and DuraFlex™ finish for resistance to environmental factors.
- Internal DSP processing system for performance customization and fine-tuning of settings.
Product summary:
- The JBL VRX932LAP large party speakers offer the perfect combination of power, precision, and ease of installation in one system.
- Thanks to JBL's advanced technologies in design, amplification, and processing, these headphones deliver amazing performance worthy of professionals.
- Whether you're working at live events, parties, conferences, or theaters, this headset guarantees powerful bass and clear detail even at the highest sound pressure levels.
Additional features:
- Plug & Play design for instant plug-and-play with no complicated setup.
- An advanced cooling system in the DPC-2 amplifier ensures stable performance for extended periods.
- The ability to connect up to 5 units to cover large areas with perfect balance.
- Supports dual-angle operation for precise control of coverage direction.
- LevelMax™ protection system to protect components from over-pressure and distortion.
- Perfect integration with VRX-AF systems for professional suspension and tethering.
Applications used for the product:
- Parties, live performances, and festivals.
- Outdoor and sporting events.
- Theaters and cinemas.
- Conference and event halls.
- Professional sound systems in hotels and shopping centers.
- Audio production and rental companies.
Summary and final advice:
- The JBL VRX932LAP is not just a speaker, it's a party speaker system. Integrated 1750W power combines professional performance and ease of operation.
- Thanks to its smart design and high-quality components, it guarantees you clear sound, balanced bass, and effortless all-around coverage.
