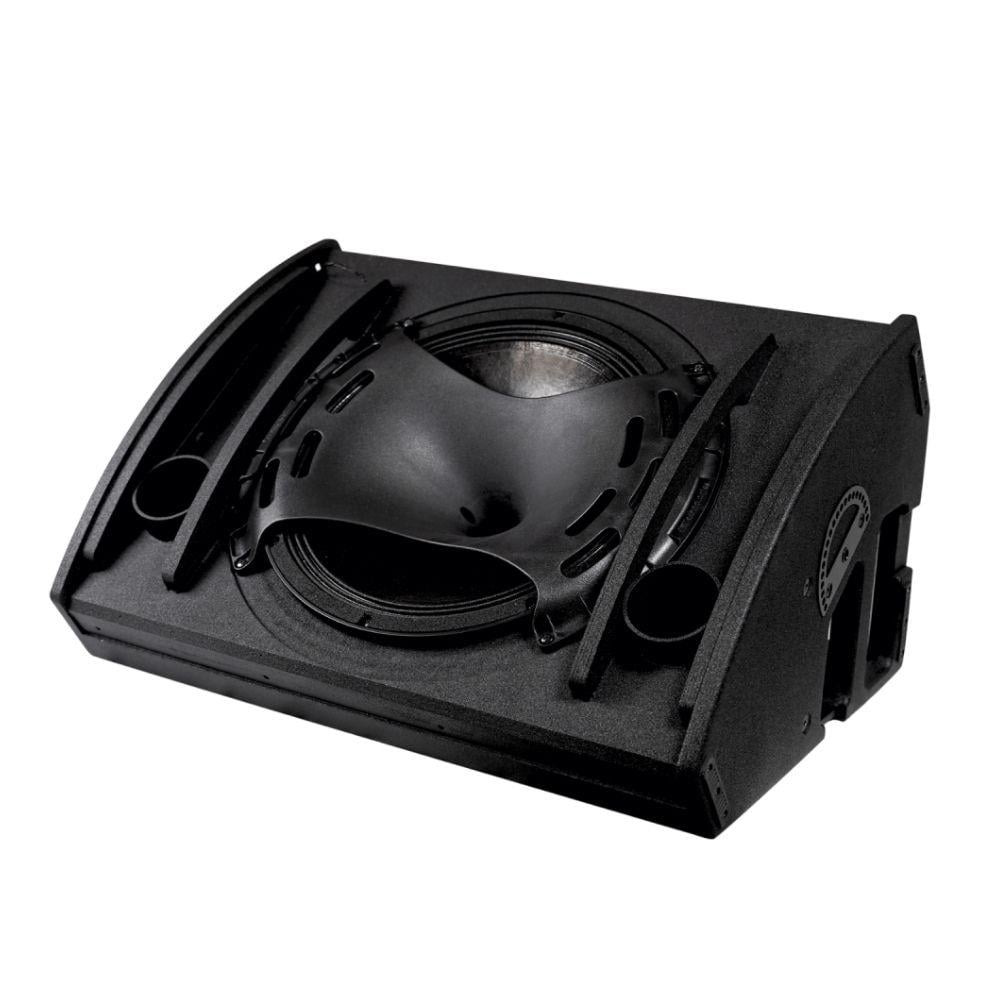

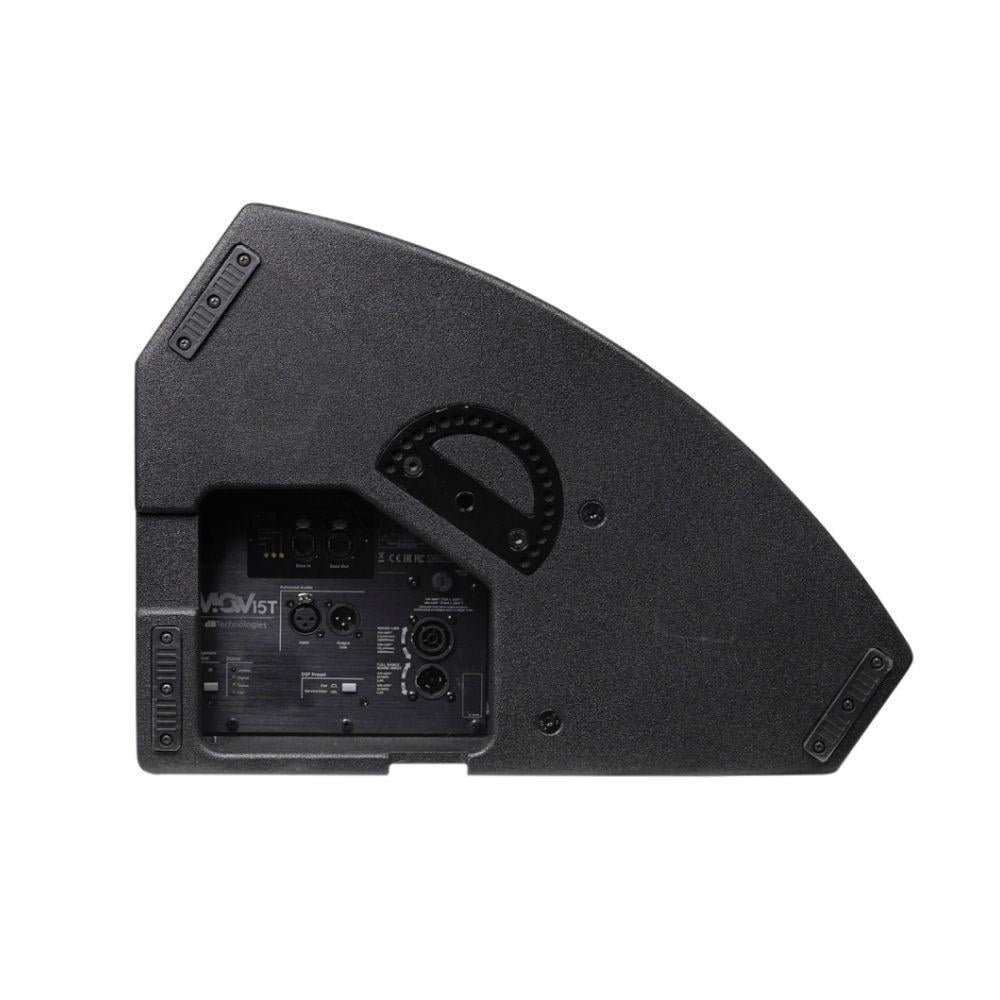

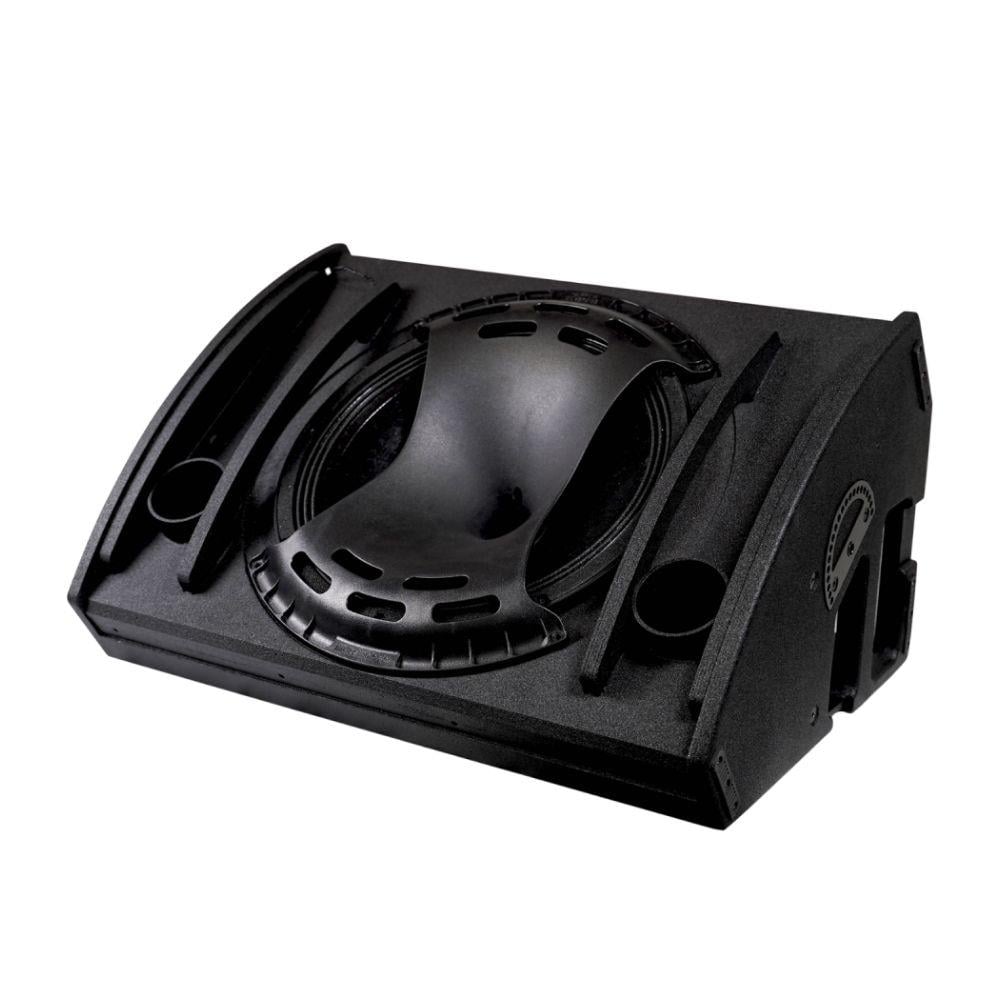

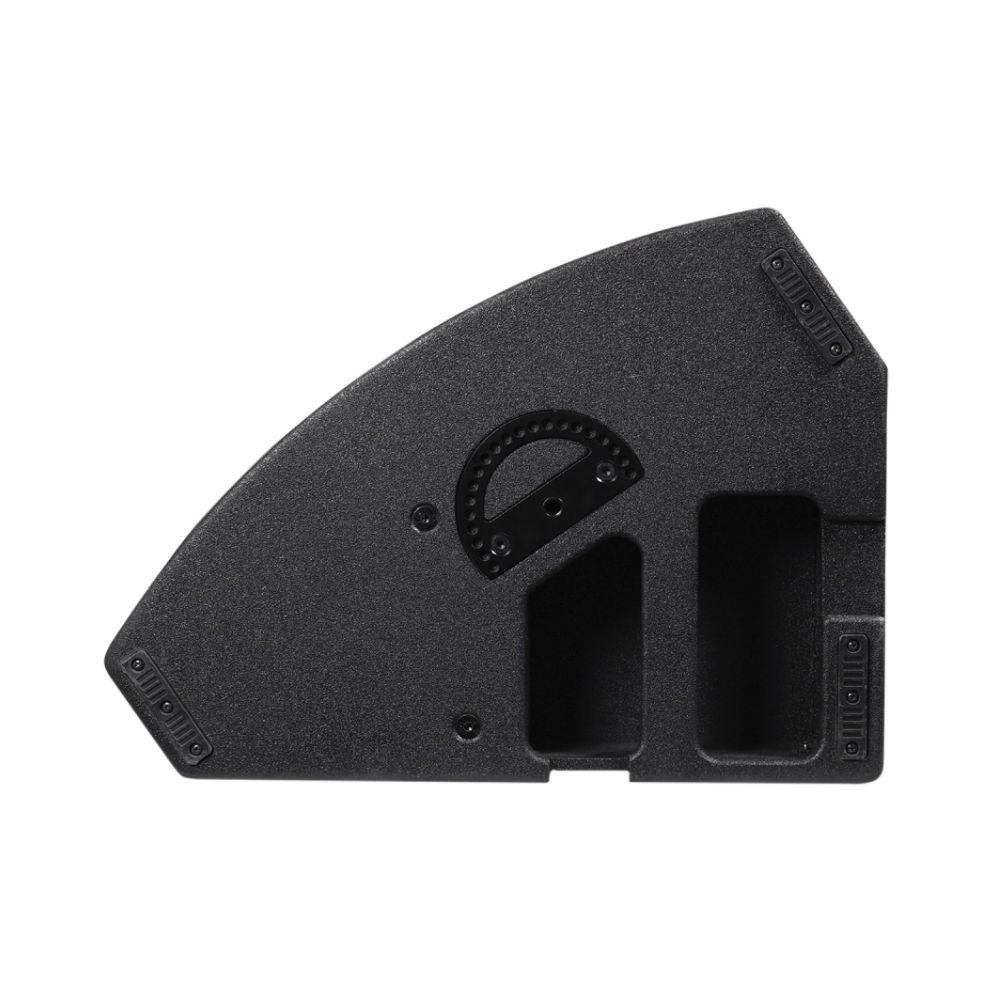

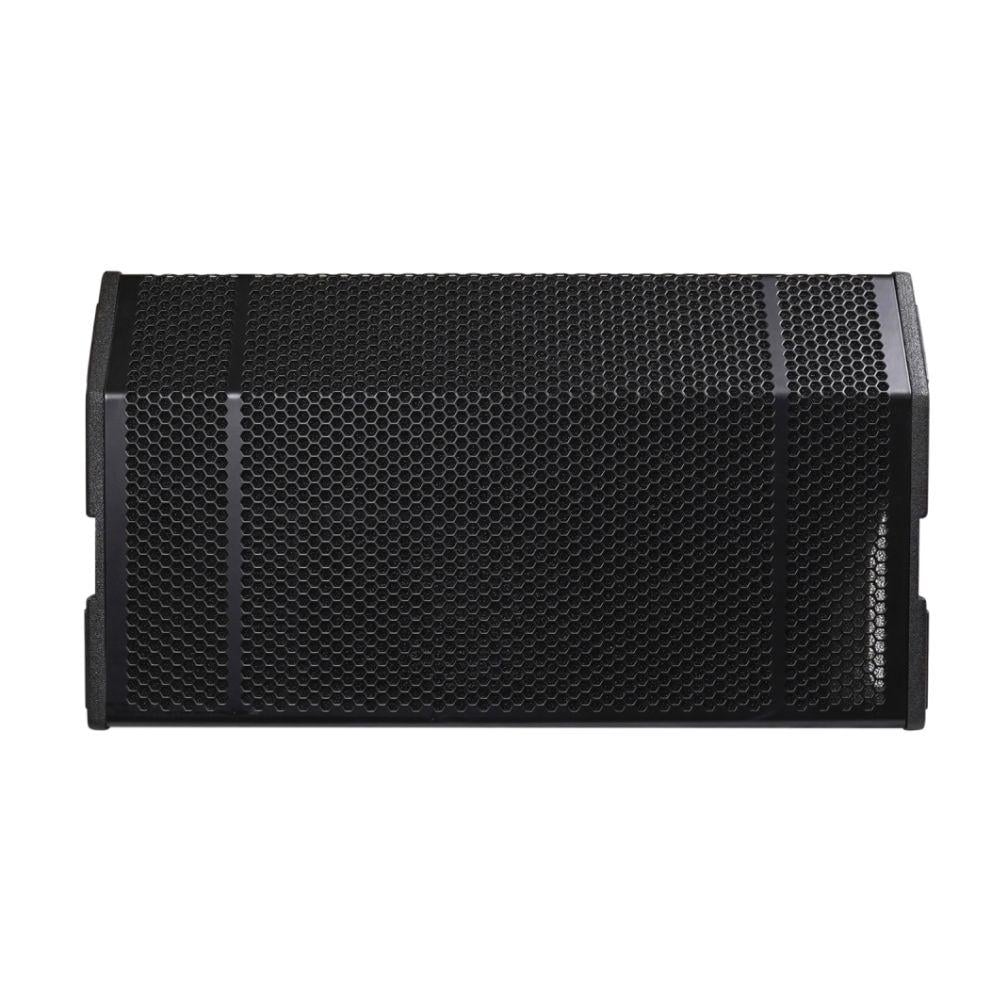

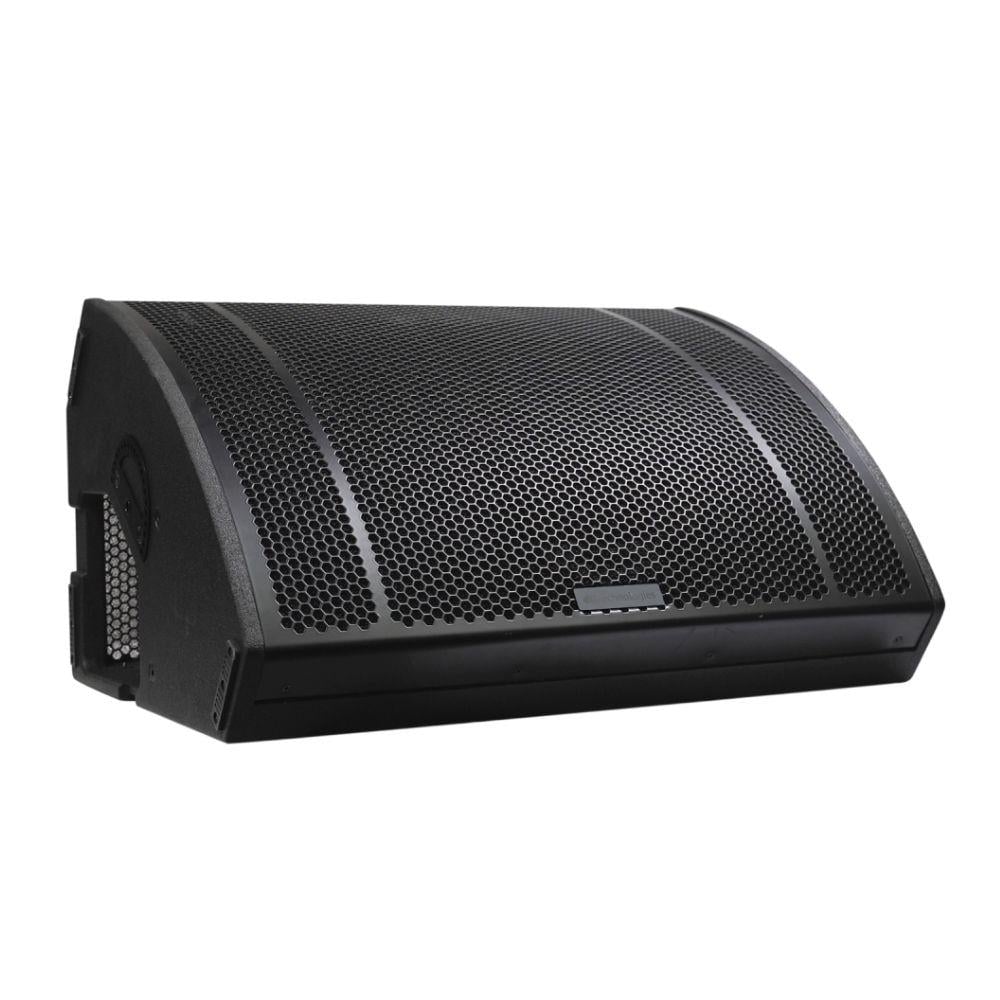

VIO W15T: 1600W theater monitor amplifier with flexible design for optimal audio performance
2-way active speaker with premium neodymium components and innovative coaxial design for precise sound distribution
Product Description:
The DP VIO W15T large speakers deliver outstanding performance as a powerful and versatile stage monitor, combining the coaxial design with advanced technology used in the high-end VIO series. This system enables precise sound distribution thanks to high-quality components, including a 15-inch woofer and a 3-inch neodymium compression tweeter.
The VIO W15T large party speaker features a sound output of up to 137dB SPL with excellent feedback reduction. The speaker is also designed to ensure that the sound distribution pattern (80° x 60°) can be easily adapted by rotating the horn to suit different applications.
The system is equipped with a Class-D Digipro G4 amplifier, the same unit used in professional sound reinforcement systems, ensuring maximum performance and reliability. Additionally, the integrated DSP features FIR filters to ensure consistent audio and phase response, making the VIO W15T large speakers the ideal choice for any application that requires audio fidelity and reliable performance.
Technical description of the product:
The VIO W15T features a comprehensive suite of technical features that ensure high-quality performance and ease of use. The system offers control via Aurora Net software, allowing comprehensive sound management and control of delay, equalization and volume levels. The large DP party speakers also feature a front-lit identification system for easy identification of the units when installed on stage.
Product Technical Specifications:
- Speaker Type : 2-Way Active Theater Monitoring Large Speakers
- Usable frequency range : 49 - 17,500 Hz
- Frequency range [-6 dB] : 55 - 16,000 Hz
- Maximum sound pressure (SPL) : 137.5 dB
- Tweeter : 1 x 1.3" with 3" neodymium voice coil
- Low Frequency Speaker : 1 x 15" with 3" Neodymium Voice Coil
- Orientation (HxV) : 80° × 60° (rotatable)
- Amplifier : 1600W RMS Class D Digipro G4
- Cooling : Natural cooling plus internal fan
- Power supply : SMPS module up to 380V with PFC
- Processor : 32-bit DSP
- AD/DA converter : 24 bit / 96 kHz
- Filters : Linear phase FIR filters
- Input connectors : 1 x XLR female, 1 x USB (for data services)
- Output Connectors : 1 x XLR Male
- Expansion Card : RDNet Card, Dante Card (Optional)
- Power Connectors : PowerCON TRUE1 (in and out)
- Dimensions : 650mm (W) x 360mm (H) x 490mm (D)
- Weight : 29 kg
Key Features:
- High Performance 1600W RMS : Delivers powerful, clear sound with support for FIR technology to enhance audio performance.
- Flexible Distribution Pattern : Thanks to the rotatable design, you can adjust the audio direction to suit your viewing needs.
- Advanced control via Aurora Net : The entire system can be controlled via the dedicated audio management software.
- Integrated Cooling System : Natural cooling and internal fan ensure stable performance even in tough conditions.
- Shock Resistant : The power supply is resistant up to 380V, providing additional protection against high currents.
- Instant Diagnostic System : Allows checking the health of audio components in real time thanks to the System Test feature.
Product Summary:
The VIO W15T is a comprehensive solution for stage performance and audio monitoring, offering great power and flexibility. With its pivoting design and advanced digital control technology, this system can easily meet the needs of various audio applications, whether for stage monitoring or live performance.
Additional features:
- Front Lighting : The lighting system helps units to be easily identified when used in theatrical environments.
- Weatherproof Design : When used vertically, the unit is completely protected from rain.
- Mounting Support : With the addition of the multi-functional stand, the speaker can be mounted on poles or used in fixed applications.
Applications used for the product:
- STAGE MONITORING : Ideal for large dB speakers in theaters and live performances.
- Professional audio applications : used in theaters, large events and concerts.
- Outdoor Applications : Weather resistant design makes it ideal for outdoor use.
Conclusion and advice:
If you're looking for a speaker that offers powerful performance and flexibility in installation and operation, the VIO W15T is the perfect choice. With its durable design and advanced control technologies, you can count on this system to deliver an unparalleled audio experience every time.
