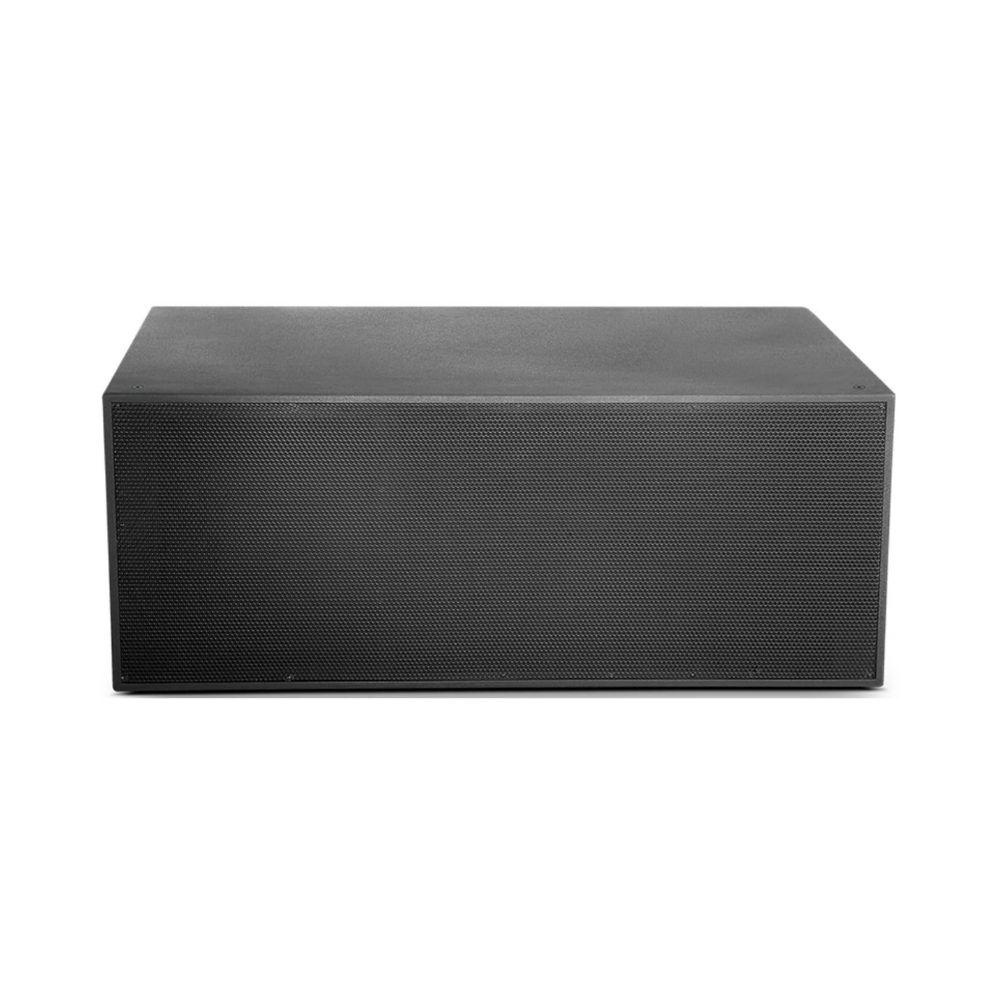

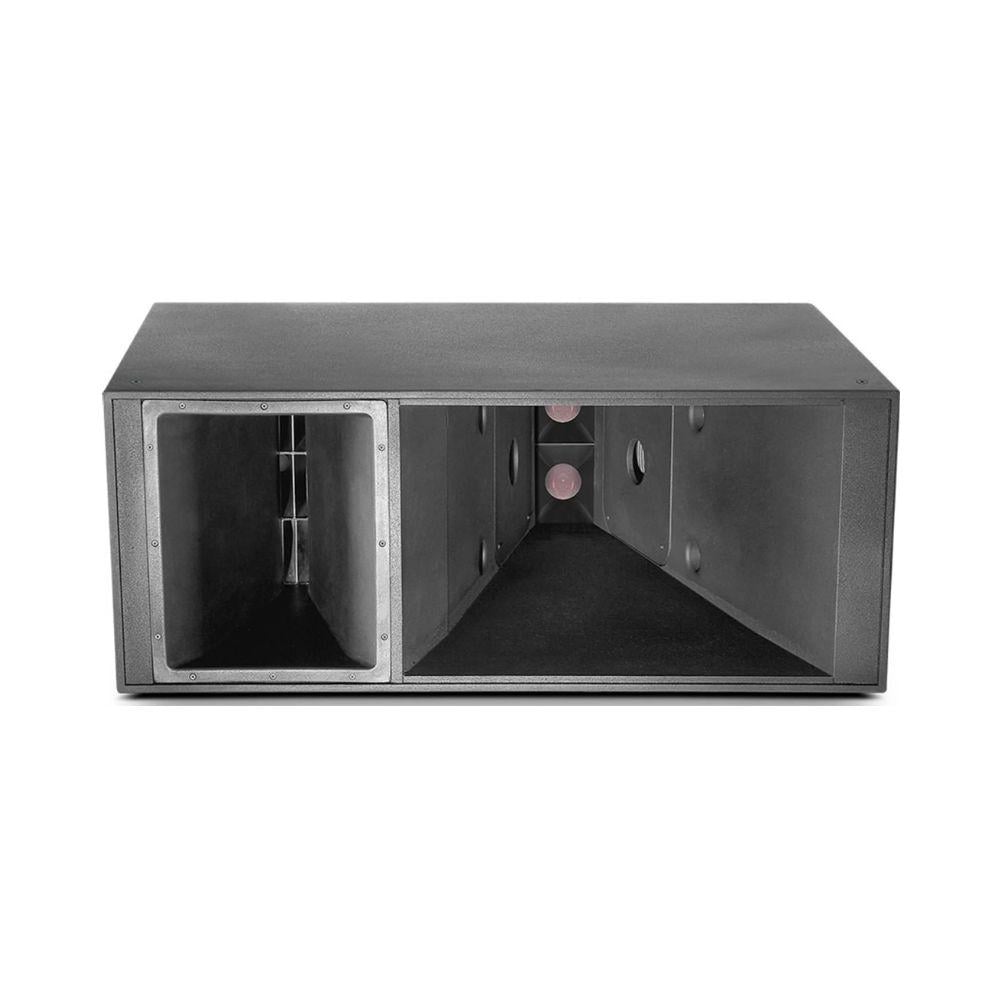

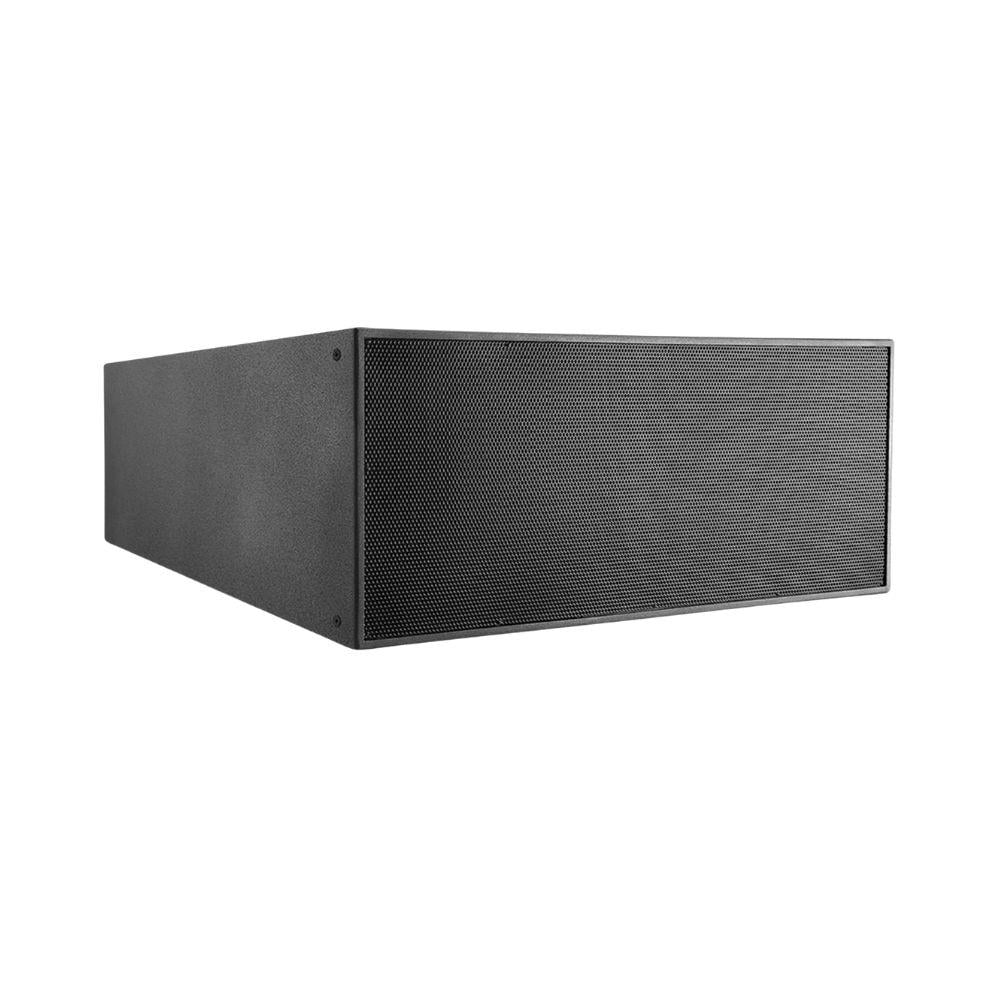

JBL 1600W 3-way Line Array speaker system with two 15" VLA301i tweeters for professional 30-degree coverage
- The JBL VLA301i large speakers are part of the most powerful Line Array systems specifically designed for fixed installations and large-scale audio projects that require accurate coverage and high power.
- This speaker is part of the renowned JBL Variable Line Array (VLA Series), designed to deliver powerful, balanced sound over very long distances, exceeding what conventional speakers can provide.
- Thanks to its 3-Way Full Range design, which combines two 15-inch low-frequency speakers, two 8-inch mid-frequency speakers, and three 1.5-inch high-frequency compression drivers, the VLA301i delivers stunning clarity across the entire audio range.
- The speaker is also equipped with JBL Differential Drive® technologies to deliver powerful performance with less weight and low distortion, with a rugged, weather-resistant design to military standards to withstand harsh conditions.
Technical description:
- The JBL VLA301i large speakers rely on a variable Line Array system designed to achieve optimal performance in large spaces such as stadiums, arenas, and open-air theaters.
- The system provides a narrow horizontal coverage angle (30 degrees) to ensure sound is focused over long distances without loss of clarity.
- Thanks to JBL's dual Differential Drive® technology in all drivers (LF/MF/HF), high power efficiency and precise response are achieved even at the highest SPL sound pressure levels.
- The speaker frame is made of high-quality birch wood with double layers (18 and 16 mm), with a scratch- and moisture-resistant DuraFlex™ coating.
- It also comes in harsh-condition versions (WRC and WRX) to suit humid, coastal, or hot environments, making it suitable for both indoor and outdoor use.
Technical specifications:
- Type: Line Array 3-Way (3-Way Full Range) Headset
- Electrical power (AES):
- LF: 1000W Continuous
- MF: 400W Continuous
- HF: 160W Continuous
- Total maximum power: approximately 1600 watts
- Frequency range (-10 dB): 39 Hz – 19.2 kHz
- Frequency response (±3 dB): 48 Hz – 17.4 kHz
- Response range (-6 dB): 43 Hz – 19 kHz
- Horizontal coverage: 30 degrees (from 900 Hz to 16 kHz)
- Vertical coverage: varies depending on the number of units and system configuration.
- Maximum sound pressure (SPL): 147.5 dB (Preset: Flat)
- Allergies:
- LF: 99/96 dB
- MF: 109/105 dB
- HF: 109/112 dB
- Nominal impedance: 4 ohms
- LF amplifiers:
- (2) × JBL 2265H – 15-inch – Dual 3-inch Coil – Neodymium Differential Drive®
- MF amplifiers:
- (2) × JBL 2169H – 8-inch – Dual 3-inch Coil – Neodymium Differential Drive®
- HF amplifiers:
- (3) × JBL 2432H – 1.5-inch output – 3-inch voice coil – Neodymium
- Structure: Finnish birch wood (18mm and 16mm) – DuraFlex™ scratch and weather resistant coating
- Weather protection options:
- WRC: Moisture resistant (for semi-outdoor locations)
- WRX: Completely weather-resistant (for use on beaches and in harsh climates)
- Front grille: Perforated steel with double rust-resistant coating – transparent acoustic foam
- Inserts: Barrier Strip for connecting Spade Lugs – with protective cap and leak-proof clip
- Operating environment: MIL-STD 810 | IPx3 (splash resistance standard)
- Dimensions (height x width x depth):
- 528 × 1346 × 1379 mm (20.8 × 53 × 54.3 inches)
- Net weight: 139.3 kg (307 lbs)
Key features:
- A three-way (3-Way) system provides exceptional clarity across the entire frequency range.
- A massive power of up to 1600 watts to cover long distances with consistent performance.
- Narrow horizontal coverage angle (30°) for accurate sound direction in wide open spaces.
- Dual Differential Drive® technology for powerful performance with lighter weight and low noise.
- Weather-resistant design to military standards (IPx3/WRC/WRX).
- A robust birch wood structure with DuraFlex™ coating to withstand harsh environments.
- Integrated suspension system for easily forming multi-unit Line Array arrays.
- Suitable for permanent acoustic projects in large, open spaces.
Product summary:
- The JBL VLA301i speaker represents the next generation of professional audio systems designed to deliver superior range performance in both outdoor and indoor environments.
- Thanks to its advanced technology and high ability to process low, medium and high frequencies, the speaker ensures balanced sound rich in detail even at very long distances.
- It is an ideal choice for projects that require superior clarity and stable audio outputs such as stadiums, outdoor theaters, large banquet halls, and public facilities.
Additional features:
- Compatible with all other VLA systems for custom array formation.
- Multiple options for protection against weather conditions depending on the usage environment.
- Improved internal design to reduce vibrations and increase sound clarity.
- Flexible suspension system (M10 Points) for easier installation and angle control.
- A rust- and moisture-resistant front grille with a design that maintains a stylish appearance.
Applications used for the product:
- Major stadiums and sports facilities.
- Outdoor theaters and live events.
- Amusement parks and cultural centers.
- Universities and major government institutions.
- Audio advertising systems in public squares.
Summary and final advice:
- If you are looking for a professional 3-way Line Array large speaker system with 1600 watts of power and precise 30° horizontal coverage for your stationary or outdoor applications, the JBL VLA301i is the perfect choice.
- The speaker combines the superior power, sound clarity, and engineering robustness that characterize JBL products, making it a long-term investment in performance and quality for any large professional audio project.
Detailed product data (Data Sheet).
