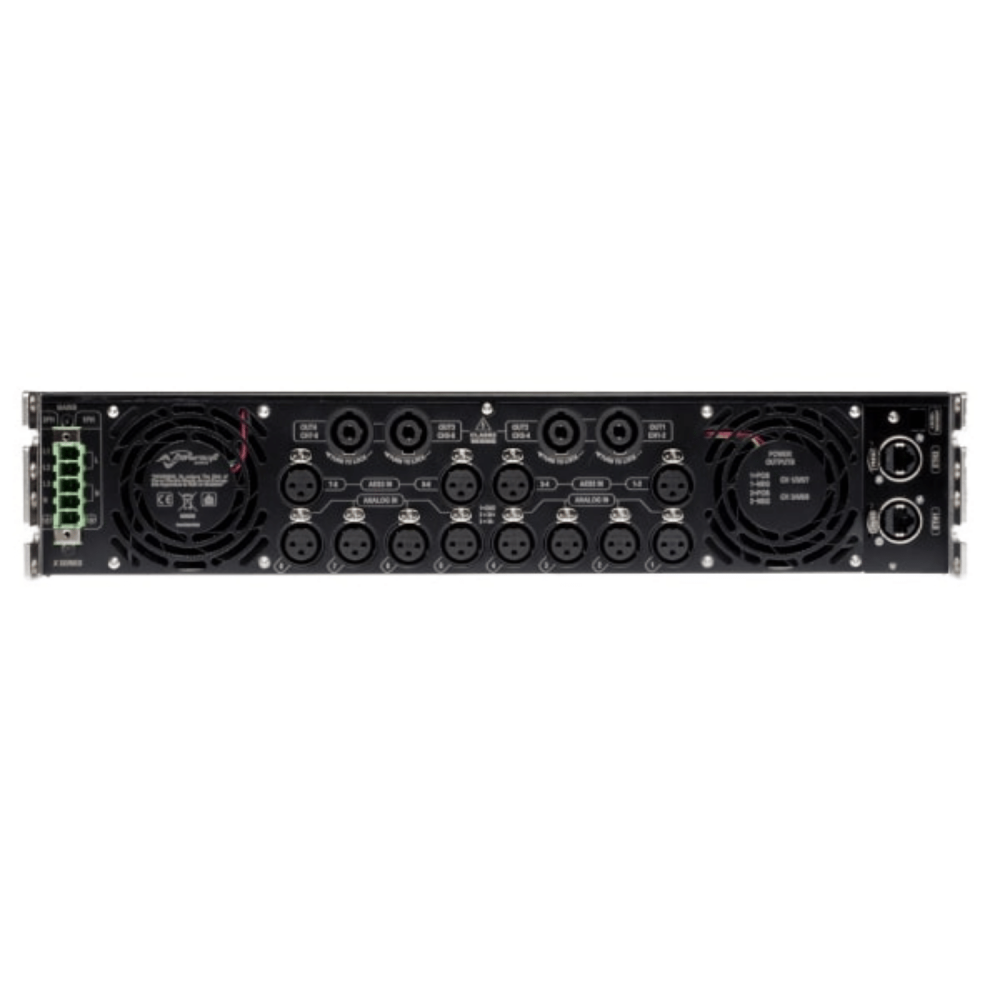

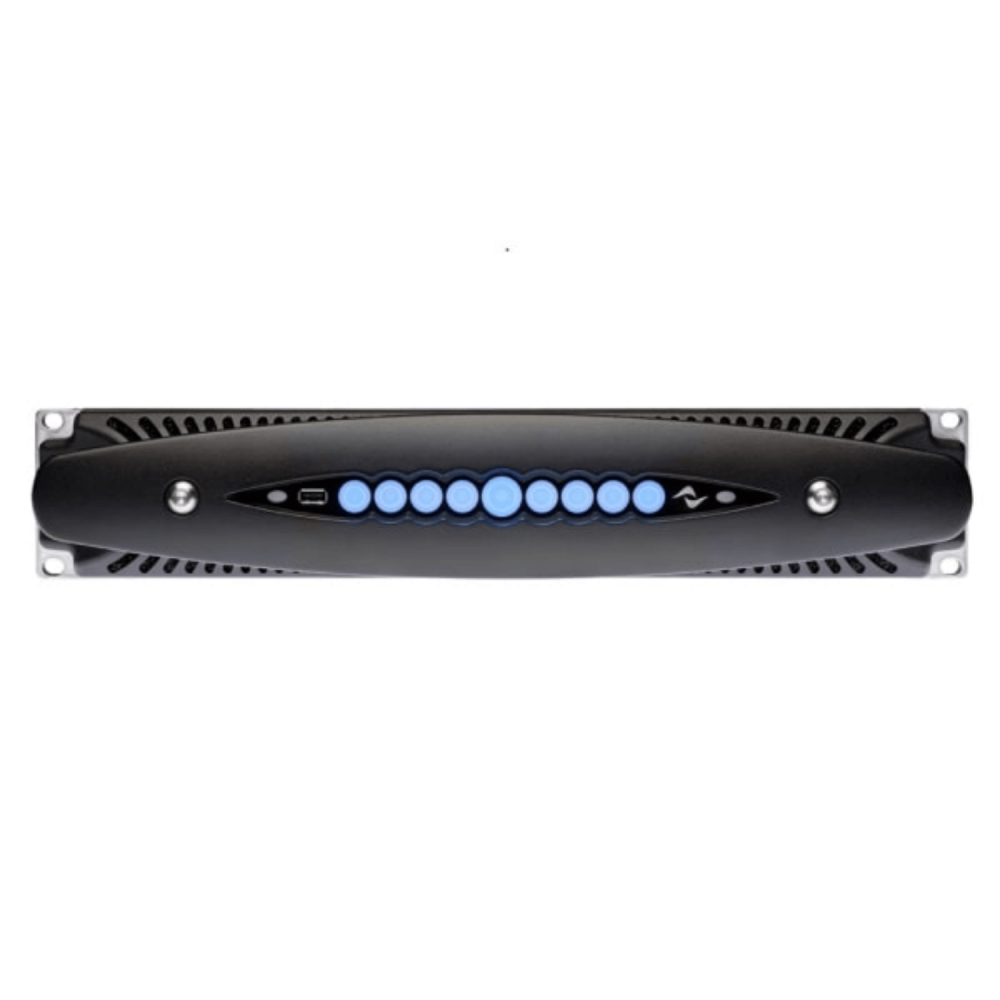

Powersoft X8 DSP + Dante Amplifier 8 Channel 40000 Watts All Channels

Powersoft X8 DSP + Dante Amplifier 8 Channel 40000 Watts All Channels

The Powersoft X8 is an eight-channel amplifier designed to deliver exceptional performance in a variety of professional audio environments. It comes with built-in digital signal processing (DSP) and optional Dante networking support , allowing you to efficiently route and distribute power with maximum freedom in sound tuning. This amplifier is the ideal choice for full-range audio systems and subwoofers , with the ability to manage multiple outputs in an integrated and flexible manner, making it suitable for a variety of applications.

Technical description:

• Input/Output Channels:
• External channels : 8 mono (bridgeable for each pair of channels).
• Internal channels :
• Analog: 8 (XLR).
• AES3 : 8 (4 XLR).
• Dante™ : 16 (2 RJ45) (Dante version only).
• voice:
• Gain : 17dB to 47dB (adjustable by 0.1dB).
• Default gain : 32 dB.
• Output Noise : A-Weighted < -70.0 dBV (Analog to Analog/Digital to Analog).
• Dynamic range : 114.3 dB (A-weighted).
• Damping coefficient : >5000 @ 8Ω (from 20Hz to 500Hz).
• Rise rate : >50 V/µs (when bypassing the input filter).
• Frequency response : 5Hz to 30kHz (-3dB).
• Interference : -70 dB @ 1 kHz.
• Total harmonic distortion + noise : < 0.5% (typically < 0.01%).
• Distortion Internal Interference (DIM) : < 0.5% (typically < 0.01%).
• Input resistance : 20kΩ balanced.
• Input Acceptance : +27 dBu.

External stage:

• Maximum output power:
• @ 8Ω : 1600 watts.
• @ 4Ω : 3000 watts.
• @ 2.7Ω : 4000W.
• @ 2Ω : 5200 watts.
• Bridge :
• @ 8Ω : 6000 watts.
• @ 4Ω : 10400 watts.
• Total maximum power : 40,000 watts (all channels working).
• Maximum output voltage without distortion : 175V (peak).
• Maximum output current : 130A (peak).

Main features:

1. Flexible Power Source : Works with single-phase, two-phase, or three-phase electrical systems and supports a voltage range of 85 to 460 volts without the need for manual adjustments.
2. Multiple channels with diverse input options : Supports analog and digital inputs including AES3 and Dante™ .
3. Advanced digital signal processing (DSP) ensures low latency with complete flexibility in sound shaping and speaker management.
4. Seamless integration with networks : Supports 100Mbps Ethernet and Gigabit Ethernet , making it easy to integrate into an existing network infrastructure .
5. Flexible control and monitoring via ArmoníaPlus™ giving you full control and monitoring via computer or mobile devices.

Additional features:

• Supports Dante™ and AES67 for voice networks.
• High power output option to meet the needs of large audio systems.
• Flexibility in sound adjustment thanks to low-latency DSP processing .

Applications used:

• Live Sound Systems : The Powersoft X8 subwoofer performs perfectly in professional sound systems such as large concerts and live events thanks to its high multi-sound output capabilities and high dynamic level.
• Theaters and Large Facilities : It can be used to drive subwoofers and full-range sound systems in large venues that require high power with fine detail in the sound.
• Audio systems in meeting spaces and large events : Thanks to its integration with Dante , it is easy to use in complex systems.

Summary and advice:

If you need a powerful, flexible amplifier with built-in DSP processing and the ability to integrate with networks , the Powersoft X8 amplifier is the perfect choice for professional audio applications that require high fidelity and high power .
