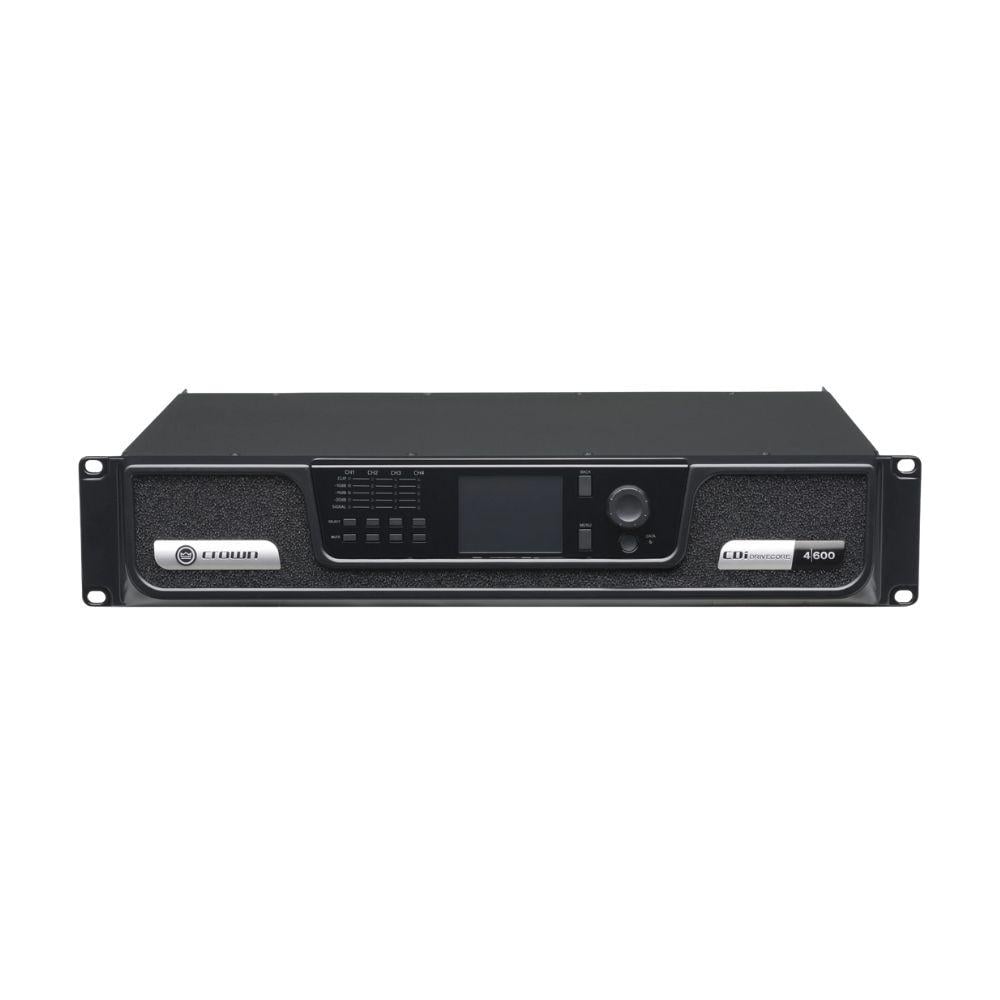

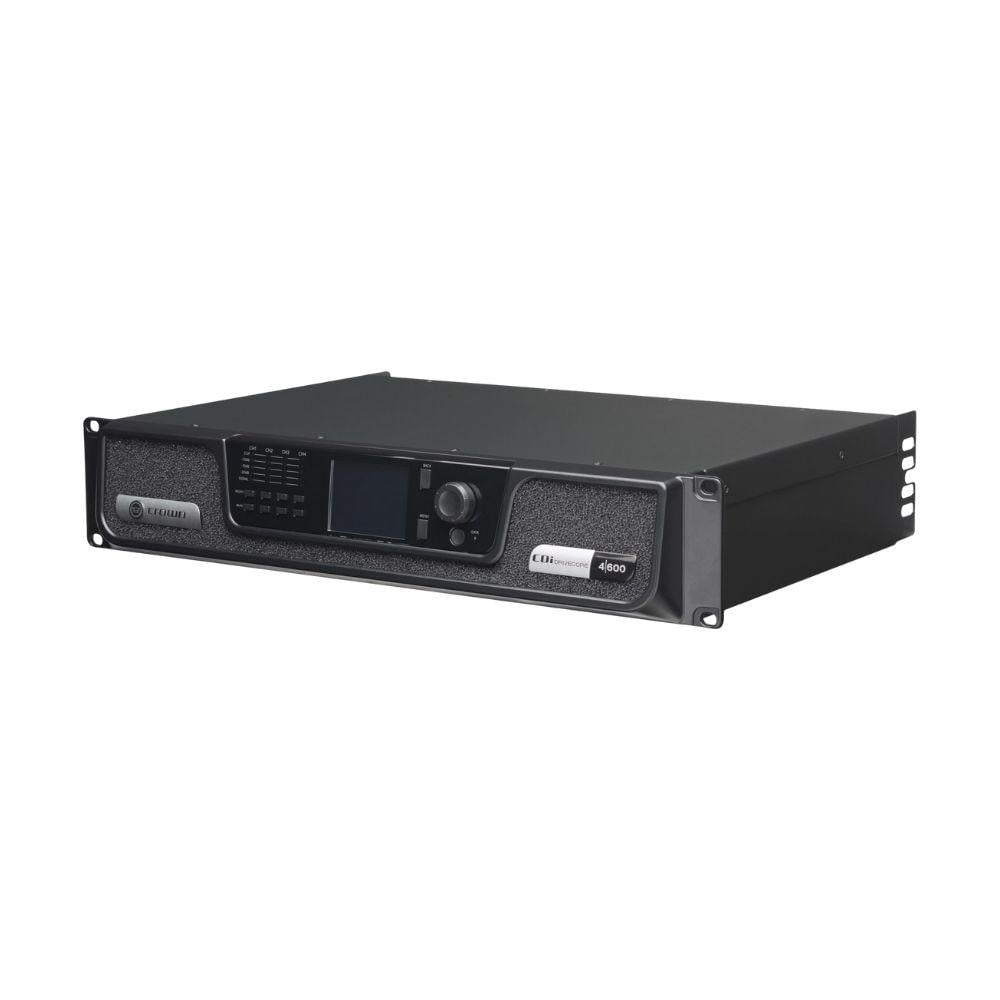

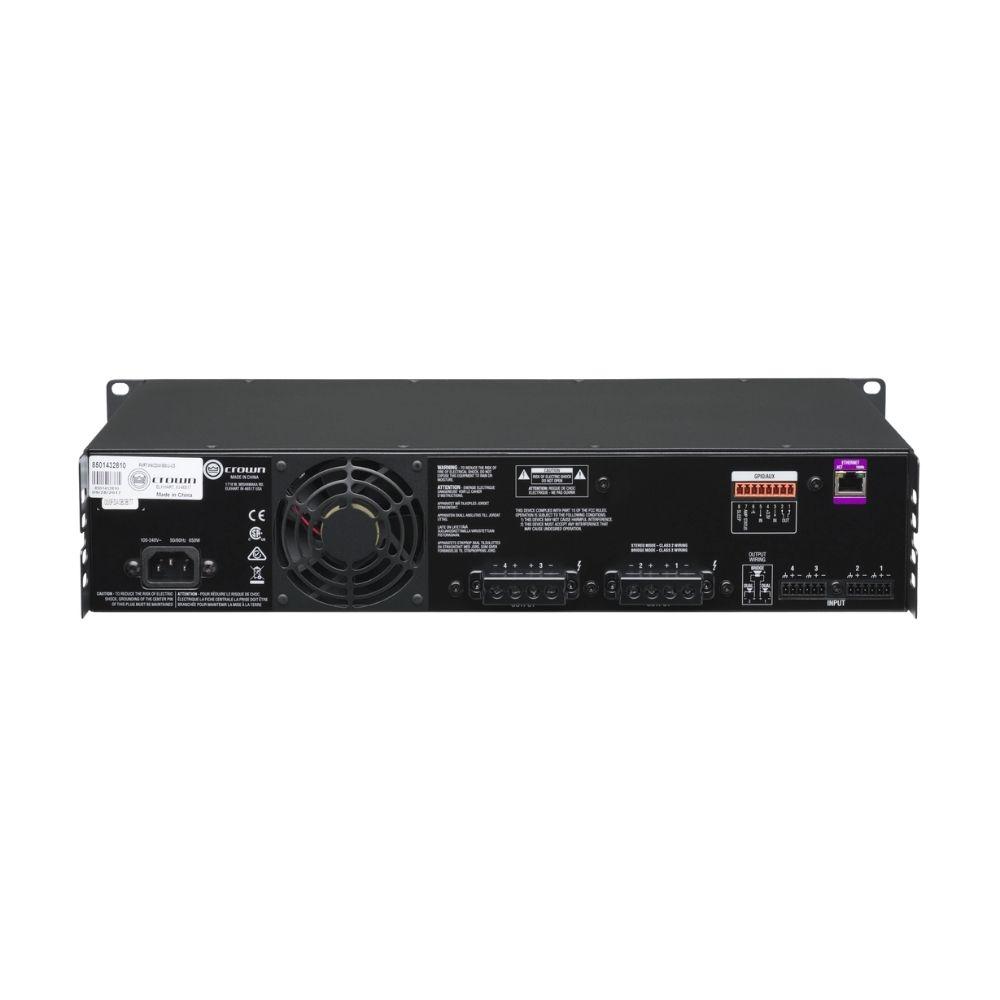

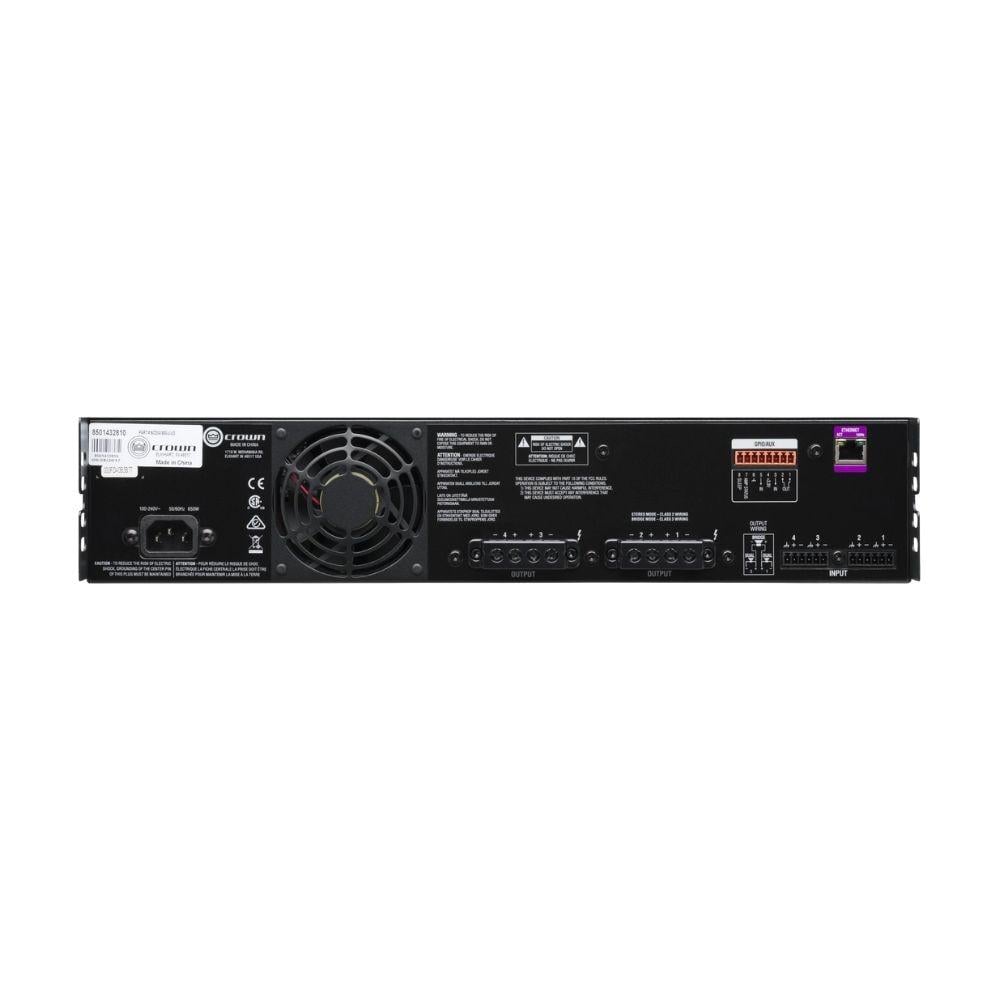

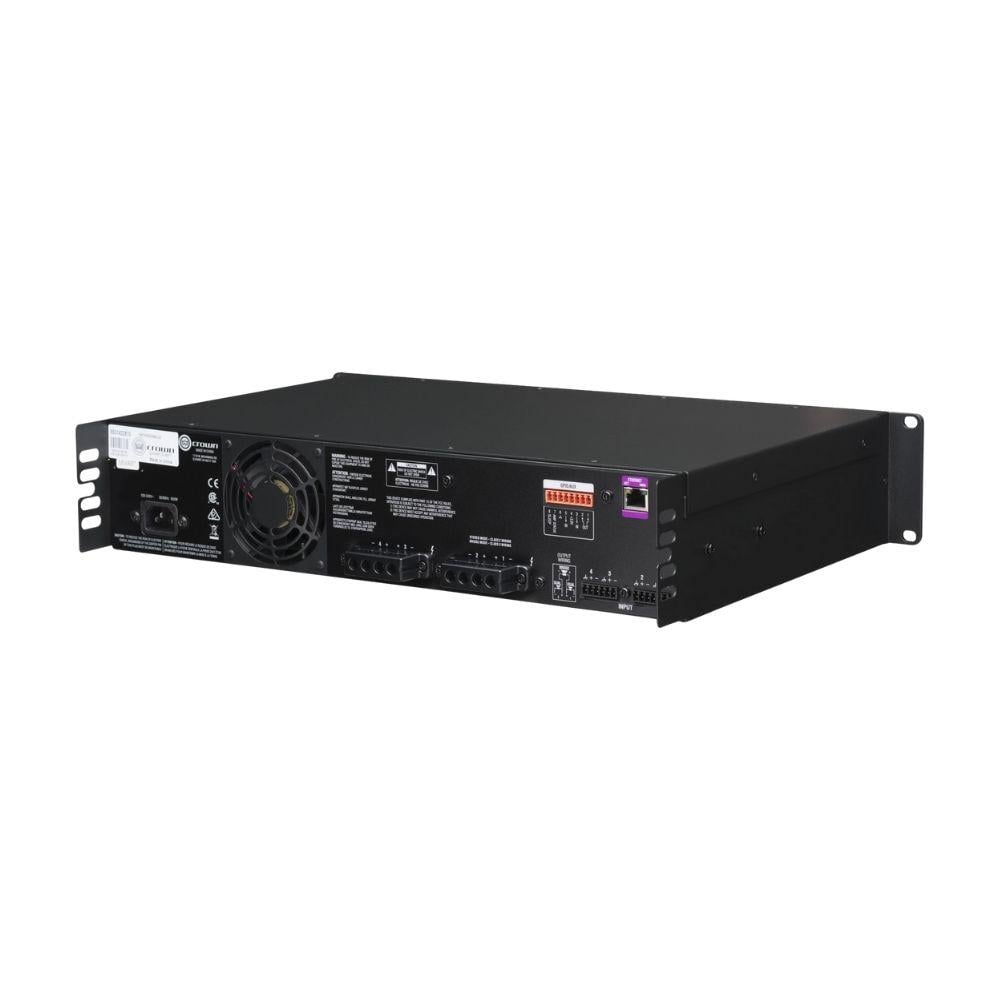

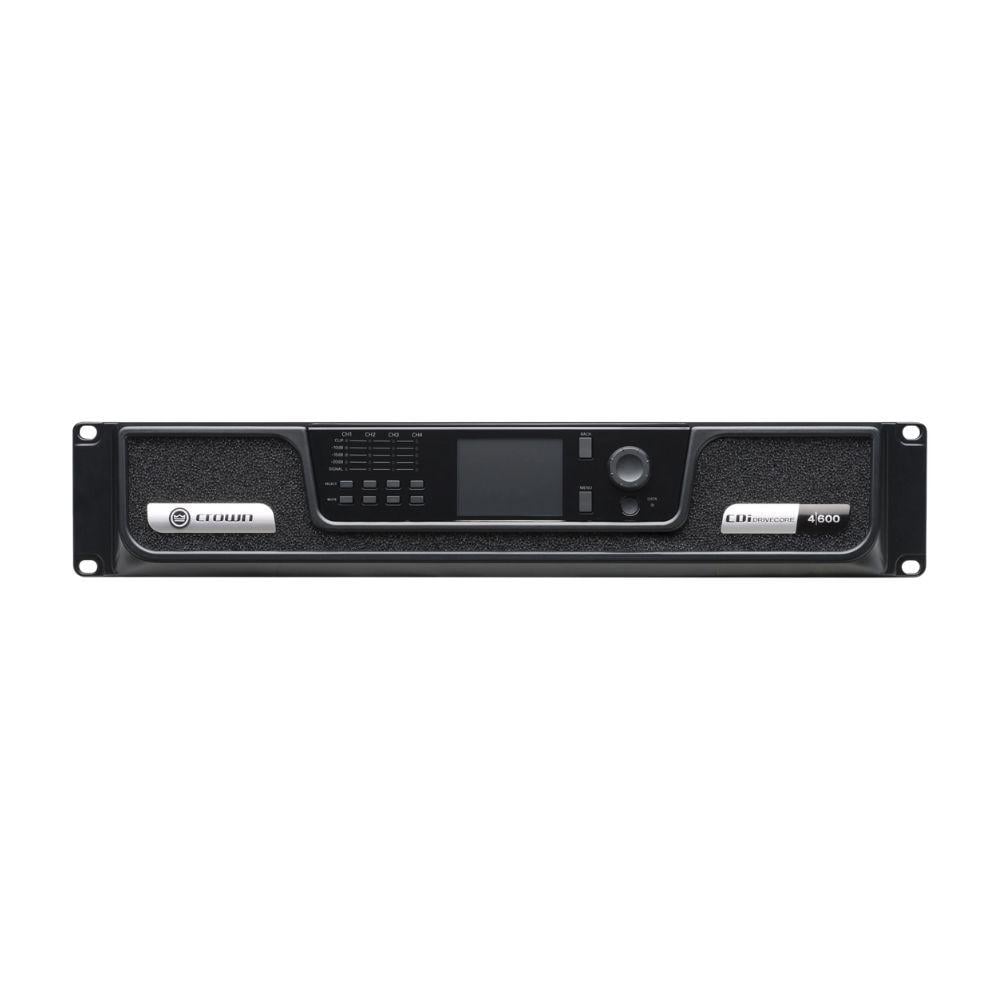

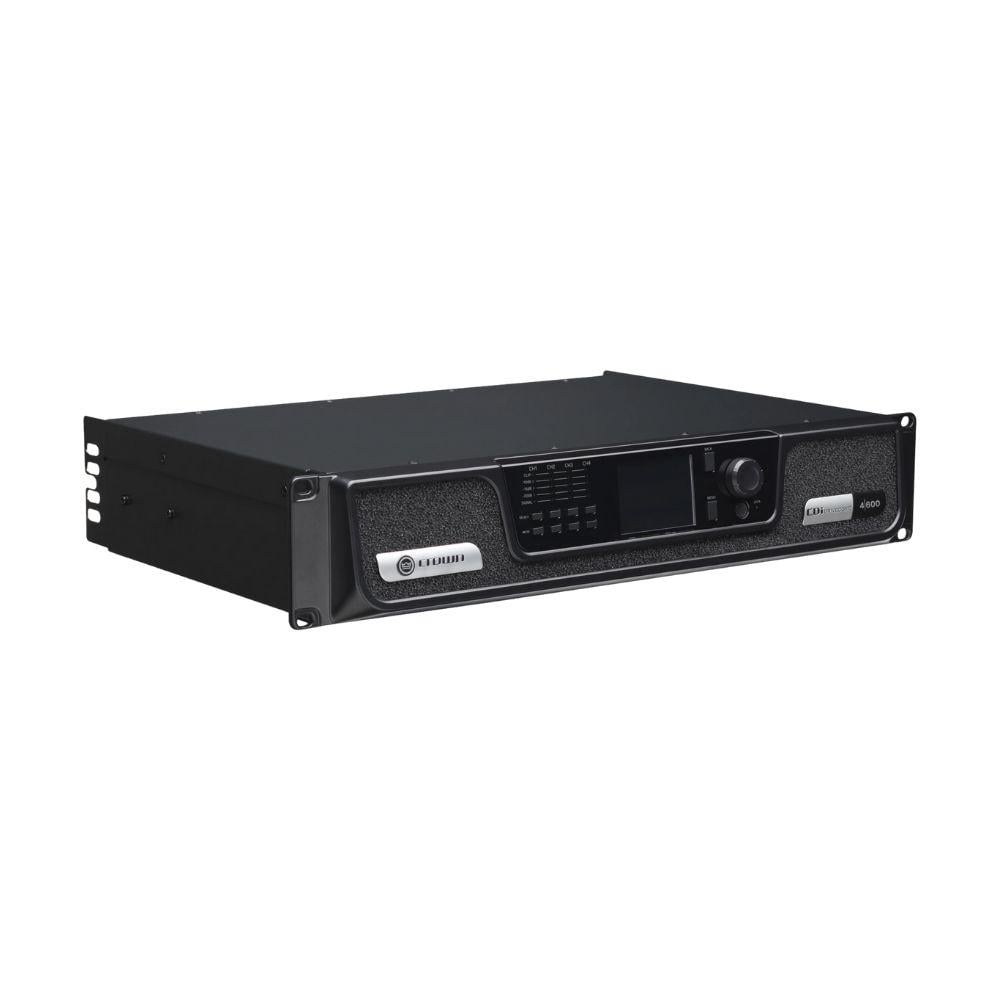

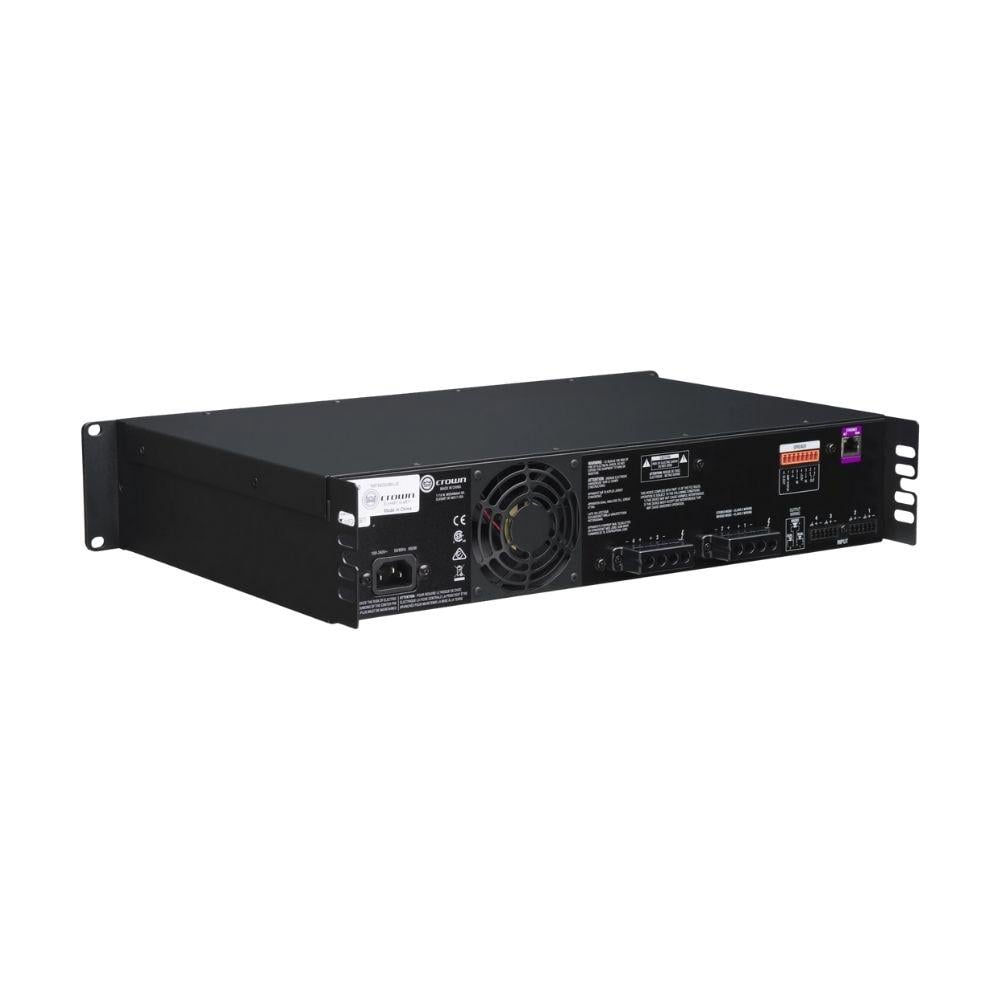

Crown Power Amplifier 4-Channel 600W Per Channel – Mid-High Performance for Commercial Projects and Places of Worship CDi 4|600
- The power amplifier device combines Crown CDi 4|600 combines power, efficiency and flexibility to provide an integrated solution for medium-sized projects such as cinemas, small theaters, mosques, clubs, halls, cafes and lounges.
- With a power of 600 watts per channel across four independent channels, the amplifier delivers powerful performance with full support for direct 70V and 100V lines without transformers, plus advanced DSP and network control via HiQnet.
- This Amplifier Fire CDi DriveCore series version relies on Crown professional technologies to ensure consistent sound quality and high operational stability, making it an ideal choice for medium-sized installations that require more power than the 300W class.
Technical description:
- The power amplifier device was designed The CDi 4|600 uses DriveCore technology, which reduces the number of electronic components inside the amplifier to improve performance, reduce heat, and increase reliability.
- The built-in digital DSP processor gives you complete control over the sound, from EQ to crossover and delay setting, as well as a LevelMAX system for protection against overload and distortion.
- The device also provides an easy-to-use front-end interface for fully adjusting settings without the need for a computer, or it can be controlled over the network using HiQnet Audio Architect.
Technical specifications:
- Number of channels: 4
- Output power per channel (4Ω): 600W
- Sensitivity: 0.7V RMS
- Signal-to-noise ratio: >104dB
- Total distortion (THD): 0.35%
- Damping factor: >1000
- Frequency response: ±0.25dB (20Hz – 20kHz @ 8Ω)
- Channel separation: >80dB
- Input impedance:
- 20kΩ balanced
- 10kΩ unbalanced
- Dimensions: 19 x 3.5 x 12.25 inches
- Weight: 7.39 kg
- Power supply: 100–240V, 15A IEC connector
- Internal DSP: Yes
- BLU link: Not supported
Key features:
- Four high-power channels for professional sound distribution in different spaces.
- DriveCore technology to increase efficiency and reduce energy consumption.
- Integrated internal DSP for complete audio control and precise adjustment.
- Direct output 70V/100V without the need for transformers.
- Full network control via HiQnet Audio Architect.
- Easy front-end interface for quick system setup.
- LevelMAX's advanced protection keeps the headphones safe.
- Ready with official JBL settings for improved adjustment and installation speed.
Product summary:
- The Amplifier Fire CDi 4|600 represents a powerful and practical choice for projects that require higher power than 300 watts while maintaining a small size, powerful DSP, and flexible control.
- Suitable for distributing high-quality, stable sound in medium-sized projects that require high performance without complexity.
Additional features:
- EQ for input and output with eight bands.
- Input delay up to 1000ms and output delay up to 100ms.
- A professional crossover for frequency splitting and tuning multi-speaker systems.
- The ability to connect to external systems via GPIO/AUX.
- Advanced protection against heat, short circuits, and overload.
Applications used for the product:
1. Cinemas and theaters
It provides sufficient power to operate wall and surround speakers with an even and clear distribution of sonic details.
2. Mosques and places of worship
Suitable for operating ceiling and wall speakers with high sound clarity and long-term stability.
3. Shops and malls
Ideal for background music and advertisements with the ability to control each area via DSP.
4. Cafes, bars, and lounges
It provides clear sound quality with sufficient power for both open and enclosed spaces.
5. Gyms and sports clubs
It can withstand long-term operation with a higher capacity to raise the volume level without distortion.
Summary and final advice:
- If you are looking for a power amplifier With four channels combining power, control, efficiency, and reliability for medium-sized projects, the Crown CDi 4|600 is one of the best choices in its class.
- It delivers 600 watts of power per channel with advanced DSP and network control, ensuring a stable and balanced sound system for years.
Detailed product data (Data Sheet).
