6.5-inch 560-watt power monitor speakers with 4-channel mixer and advanced digital audio processor LD MIX 6 A G3, made in Germany

6.5-inch 560-watt power monitor speakers with 4-channel mixer and advanced digital audio processor LD MIX 6 A G3, made in Germany

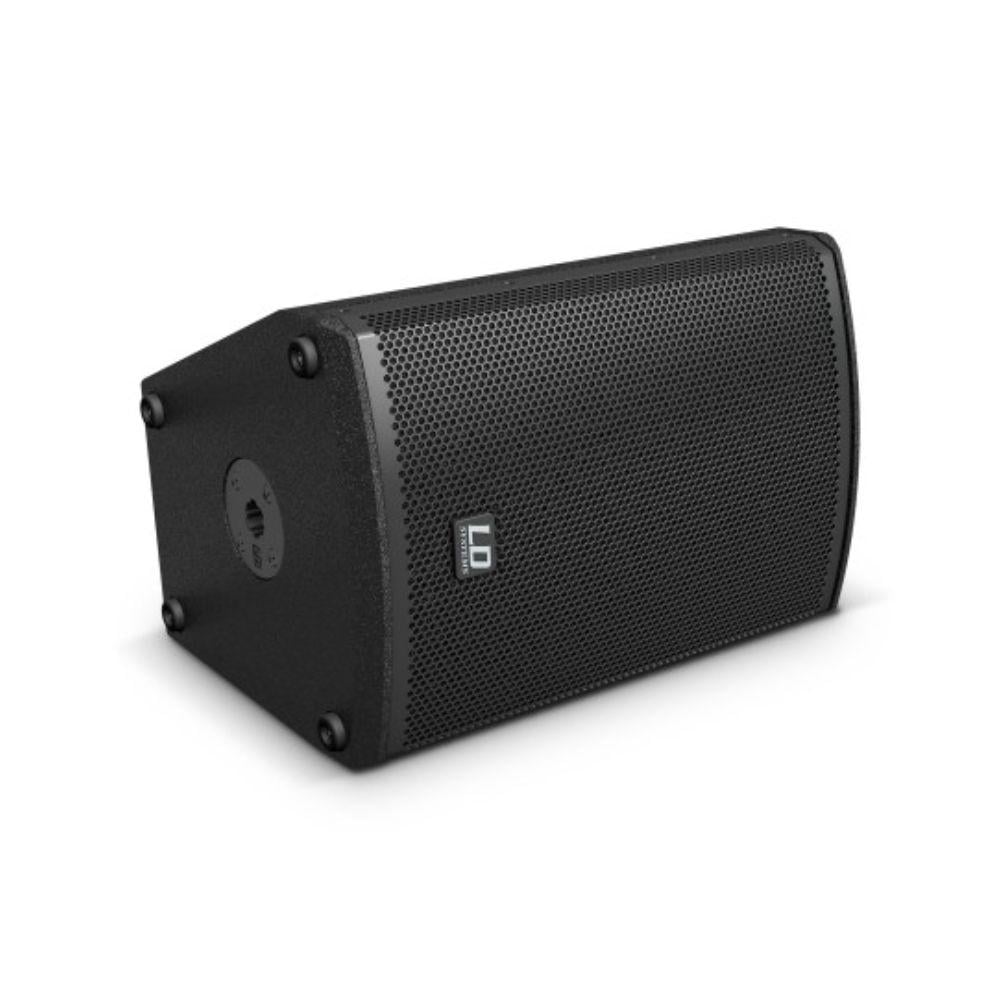

The LD MIX 6 A G3 is an active speaker specifically designed to meet the needs of small audio systems and personal monitoring, combining a built-in four-channel digital mixer with a 2 x 70W RMS Class D amplifier and up to 2 x 280W peak performance.

This system features a two-way configuration with a custom 6.5-inch woofer and a 1-inch tweeter, delivering a frequency response spanning 80Hz to 20kHz with a balanced sound distribution of 80° x 70° .

The amplifier supports a variety of audio inputs, including microphones, musical instruments, smartphones, MP3 players, and CD players . It features a microphone input with 15V phantom power and a dedicated Hi-Z input for musical instruments, making it suitable for musicians and audio technicians.

The built-in DSP provides 16 sound effects , and includes advanced protection systems that include overload, overcurrent, short circuit, and overheating protection.

It can be connected to the LD MIX 6 G3 passive subwoofer via a separate 4-ohm output to create a dual-speaker sound system that enhances audio performance in a variety of environments. It also features a sturdy MDF design with dual mounting holes that allow for horizontal or vertical installation as needed.

Technical description:

The LD MIX 6 A G3 monitor features a sophisticated design that combines powerful performance with ease of use, featuring a Class D active amplifier that delivers high efficiency and low power consumption.

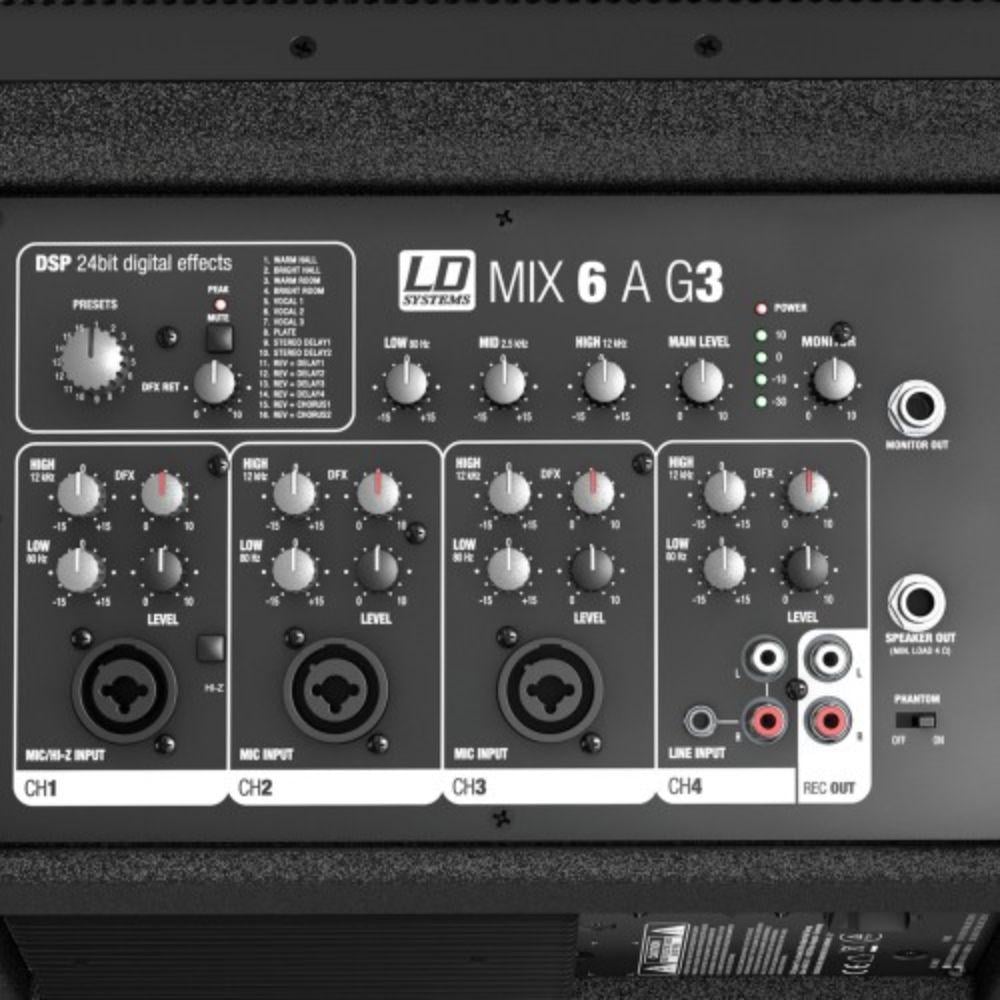

It features a built-in four-channel mixer that supports three microphones along with a stereo line channel with a two-band equalizer , giving the user precise control over sound quality.

It features RCA outputs for recording and monitoring , as well as a separate 70W output for supporting a passive subwoofer, allowing for the creation of a complete, high-quality audio system.

Technical specifications:

General Specifications

• Type: Active Speaker
• Configuration: 2-Way
• Loudspeaker (LF): 6.5 inches, custom design
• High Frequency (HF) Driver: 1 inch
• Spread angle: 80° × 70°
• Frequency range: 80 Hz - 20 kHz
• Maximum sound pressure (SPL): 122 dB

Amplifier and audio mixer

• Amplifier Type: Class D
• Power: 2 x 70W (RMS), 2 x 280W (Peak)
• Number of channels: 4 channels
• Microphone inputs: 3 (XLR and 6.3mm jack)
• Line Inputs: 1 (RCA Stereo)
• Hi-Z Instrument Input: 1 (6.3mm Jack)
• Recording and Monitor Outputs: 2 x RCA

Specifications:

• Digital Effects Processor (DSP): 16 sound effects
• Phantom power: 15V
• Power consumption: 180 watts
• Power Input: IEC
• Weight: 7 kg
• Dimensions (mm): 214 x 323 x 221
• Material: MDF
• Mounting Options: Dual Mount (Horizontal/Vertical)

Main features:

• Compact and lightweight design makes it easy to carry and transport.
• Built-in 4-channel digital mixer provides flexibility for operation with multiple audio sources.
• Stereo playback is possible by connecting the LD MIX 6 G3 passive speaker.
• Advanced audio processing (DSP) provides 16 sound effects to enhance sound quality.
• Comprehensive electrical protection ensures stable performance and safe operation.
• Enhanced Bass Reflex System to enhance audio performance in low frequencies.

Additional features:

• Ability to adjust frequencies via a three-band equalizer to improve sound quality.
• A dedicated Hi-Z input for musical instruments allows direct connection without the need for additional equipment.
• Independent RCA outputs for monitoring and recording expand the range of audio applications.
• Durable MDF design with scratch-resistant coating to ensure durability.

Applications used:

• Personal Audio Monitoring: Ideal for use in studios and small live performances.
• Integrated Stereo Sound System: Can be used with the LD MIX 6 G3 passive speakers to create a two-speaker sound system.
• Live Performances and Music Rehearsals: Suitable for instrumentalists and bands to achieve accurate and clear sound.
• Conferences and Presentations: Provides clear audio at meetings, seminars, and business events.
• Home and Professional Use: A great choice for audiophiles and audio-visual content creators.

Summary and advice:

If you need an active speaker that combines small size, powerful performance, and flexibility , the LD MIX 6 A G3 monitor speakers are the perfect choice. They offer professional sound quality, advanced audio processing, and versatile playback capabilities , making them ideal for live performances, conferences, and personal use.

It features a compact and lightweight design, making it easy to transport, as well as the ability to expand into a dual sound system when connected to the LD MIX 6 G3 passive speaker .

This speaker is an ideal investment for anyone looking for clear, high-quality sound with the flexibility to operate and connect in a variety of environments.
