6-input mixer with UniStar 24-bit digital effects processor

6-input mixer with UniStar 24-bit digital effects processor

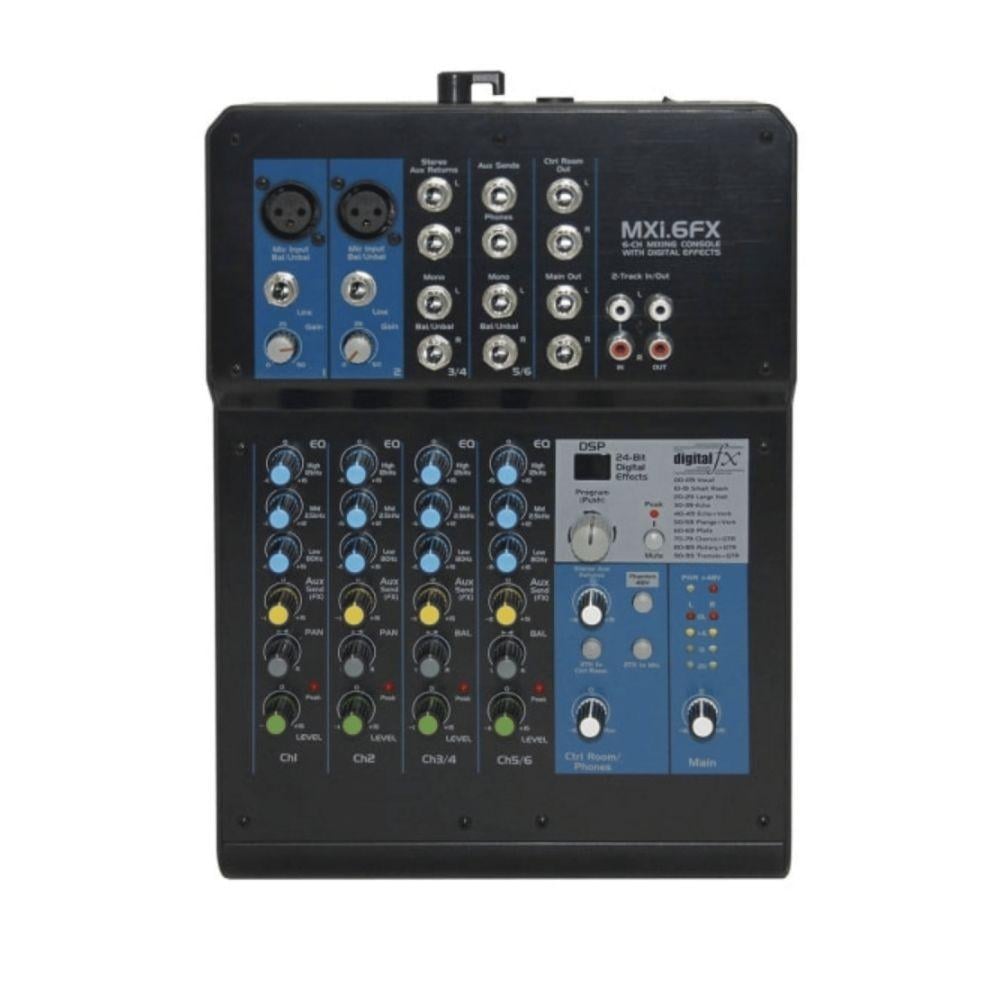

The UniStar MXi.6FX Mixer features a 6-input mixer with a 24-bit digital preamplifier and audio effects processor , ensuring clear, high-quality sound in a variety of audio applications. The mixer features microphone inputs and stereo line inputs , as well as a variety of audio effects with presets for greater flexibility in control and customization. It features advanced audio processing and dynamic balance adjustment technologies, making it suitable for use in a variety of applications such as live performances and audio training courses .

Technical description:

• Input channels:
• 2 microphone/line inputs (electronically balanced input).
• 2 stereo line inputs.
• 24-bit DSP processor : Delivers digital sound effects with the ability to choose presets .
• Presets : The mixer has 100 presets for sound effects such as Vibraflange , Funky , Rockabilly , Flanger1-4 , and more.
• EQ settings (frequency adjustment):
• Hi shelving settings : ±15 dB at 12 kHz.
• Mid bell settings : ±15 dB at 2.5 kHz.
• Low shelving settings : ±15 dB at 80 Hz.

Technical Specifications:

• Frequency response :
• Microphone: 10 Hz to 55 kHz, ± 3 dB.
• Line input: 10 Hz to 55 kHz, ± 3 dB.
• Stereo channels: balanced frequency response.
• Distortion :
• 0.005% at +4 dBu , 1 kHz .
• Signal to noise ratio (SNR) : 115 dB .
• A/D and D/A converter: 24-bit resolution.
• DSP effects :
• Vibraflange , Funky , Rockabilly , Bigstage , and Vibrato1-4 , as well as Flanger1-4 and Chorus1-4 .
• Control:
• Preset Selector with 16 modes.
• FX level , Reverb level .
• LED CLIP .
• Main mix section:
• Bus Noise : -100 dBr at 0dB Fader , -90 dBr when all channels are set to UNITY Gain .
• Maximum output : +22 dBu via unbalanced ports using 1/4' jack .

Main Features:

1. 6 audio inputs including microphone inputs and stereo line inputs .
2. 24-bit DSP processor with multiple sound effects .
3. Various presets provide extensive sound customization possibilities.
4. EQ with Bass, Mid , and Treble settings .
5. Advanced audio settings with high accuracy in handling audio signals .
6. Easy control with Reverb and FX settings .

Additional features:

• Various input options include balanced and unbalanced inputs .
• Flexible settings with frequency customization to adjust the sound according to the location or application.
• Automatic sound adjustment with DSP effects allows the user to get the best performance.

Applications used:

• Live and stage performances : Users can flexibly adjust sound effects to suit live performance.
• Trainings and Conferences : The speaker provides clear sound and sound effects that enhance the audience experience .
• Recording studios : It can be used to enhance the sound during the recording and editing stages thanks to the built-in effects.

Summary and advice:

If you are looking for a multi-input mixer with a high-resolution digital effects processor , the UniStar MXi.6FX mixer is the perfect choice. Thanks to its advanced control and flexible customization , it can be used in live performances , conferences , and other audio applications that require precision performance and clear sound.
