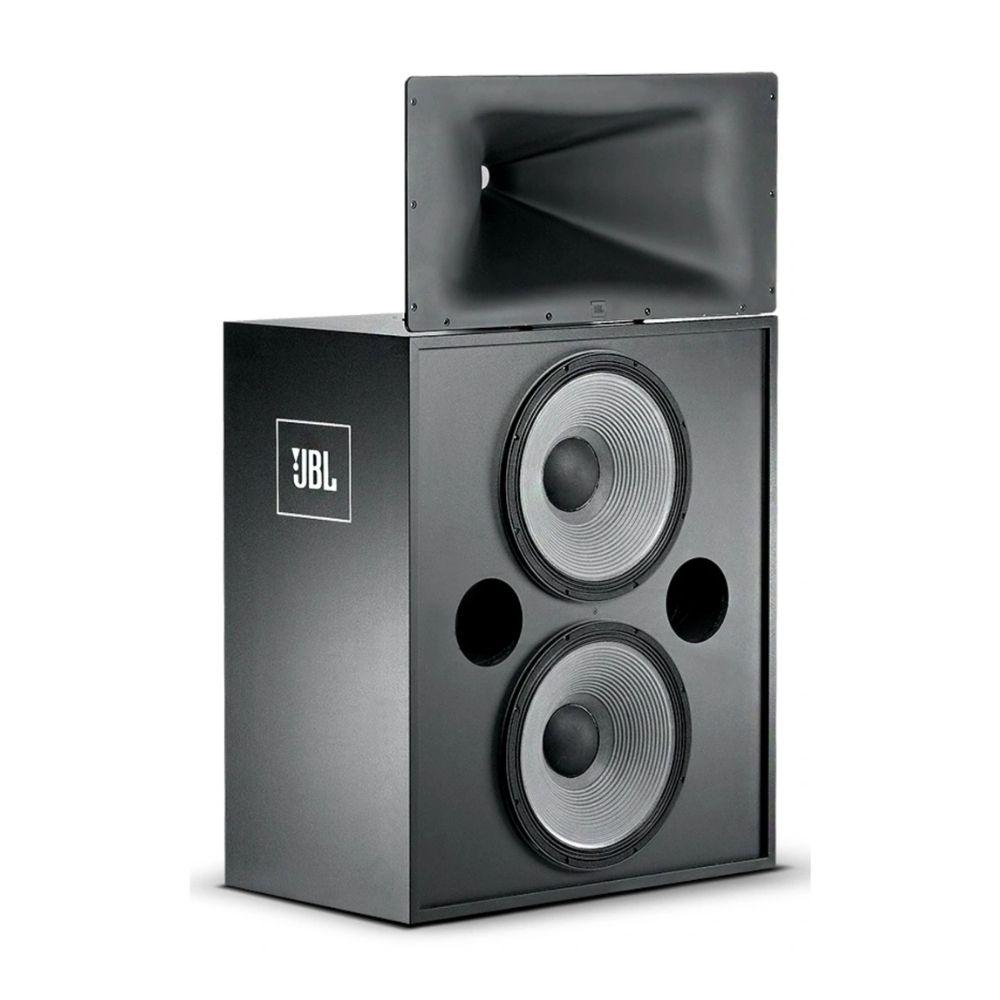

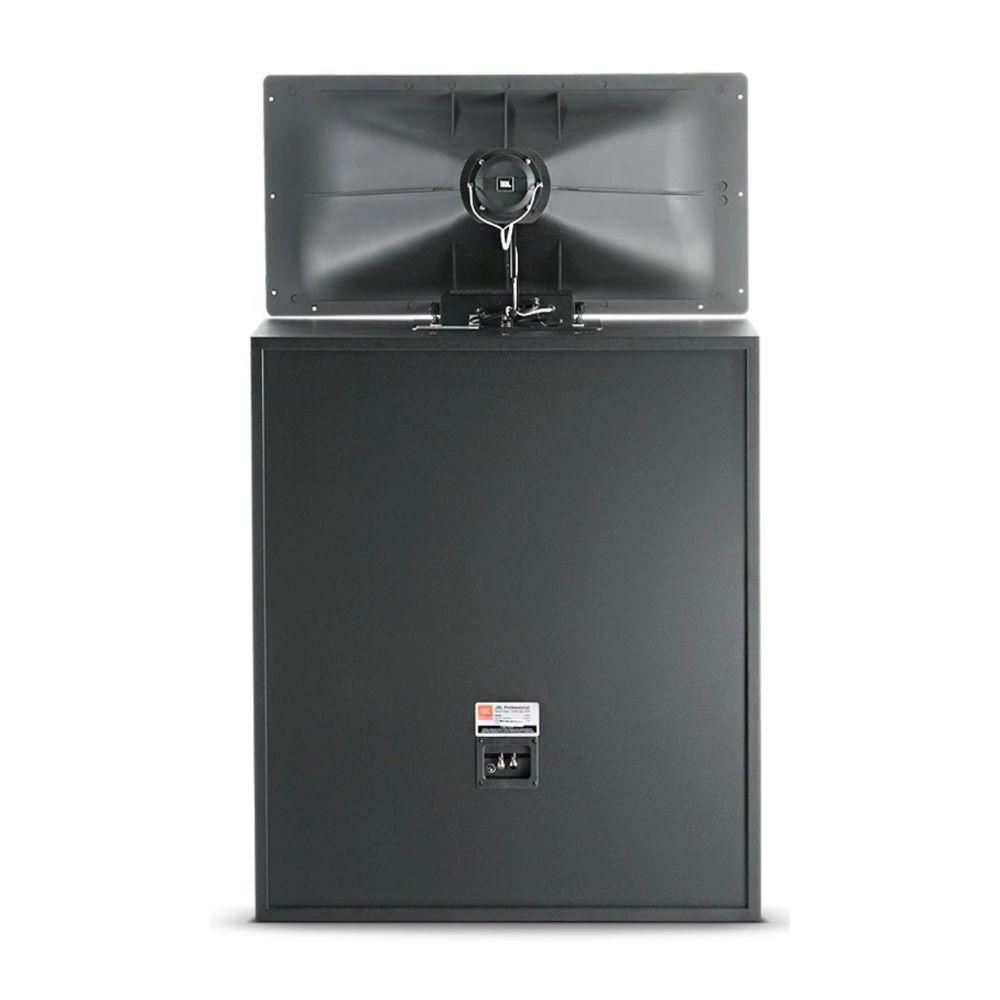

JBL Professional 2-Way ScreenArray Cinema Speaker : Powerful performance and high fidelity for realistic cinematic sound experiences. Model 4722/4722N
- The JBL 4722/4722N ScreenArray® Cinema Speakers are among the most trusted cinema sound systems in medium and large commercial theaters, providing an immersive sound experience with consistent distribution and stunning clarity.
- Thanks to its Two-Way System design, the Cinema headset delivers an accurate and balanced audio response that brings every cinematic scene to life.
- The system is designed to combine high sound power with cost-effectiveness, and is available in two different versions to meet the needs of all cinema applications:
- 4722N (Passive) — A version equipped with an internal crossover grille for easier installation.
- 4722 (Bi-Amp Ready) — A professional version that can be operated with separate bass and treble amplifiers for finer adjustment of the sound balance.
Technical description:
- The JBL 4722 Cinema Speakers feature two 15-inch (380mm) 26SH-1 low-frequency drivers with Edgewound Ribbon Voice Coil technology to deliver both powerful and smooth bass.
- The high section relies on a 2432H compression motor mounted on a 2384 Horn with an engineering design that provides wide and clear sound propagation throughout the hall.
- The speaker delivers powerful performance with a total power of up to 800 watts, with a maximum sound pressure of 136 dB Peak SPL, making it capable of covering large theaters with consistent and clear performance even in high-impact scenes.
Technical specifications:
- Frequency response (±3dB): 40Hz – 19kHz
- Frequency range (-10dB): 30Hz – 20kHz
- Sensitivity: 104dB (at 2.83V/1m)
- Maximum sound pressure: 130dB continuous / 136dB peak
- Total power: LF 800W / HF 85W
- Nominal resistance: 4722N = 4Ω | 4722LF = 4Ω | 4722HF = 8Ω
- Crossover frequency: 4722 = 630Hz / 4722N = 800Hz
- Dimensions: 1265 × 762 × 450 mm (49.9 × 30 × 17.75 inches)
- Net weight: 55.8 kg
- Weight during shipping: 65.4 kg
- LF Components: 2 x 26SH-1 (15 inches)
- HF components: 2432H Driver + 2384 Horn
- Operating system: Bi-Amp or Passive (in model 4722N)
Key features:
- Two-way ScreenArray™ design for consistent and clear sound distribution in all seats
- Passive or Bi-Amp operation options allow for flexible system integration according to hall requirements.
- High-performance power up to 800 watts for a realistic movie sound experience
- Professional internal components from JBL ensure long-term performance stability.
- A perfect balance between deep bass and pure high frequencies
- Compact design to save space behind the screen without affecting sound quality
Product summary:
- The JBL 4722/4722N ScreenArray® Cinema Speaker combines the advanced technology for which JBL is known with the high reliability required in professional cinema environments.
- Whether you choose the Bi-Amp version for greater customization in control, or the Passive version for ease of installation, you will get superior audio performance that makes the viewing experience more realistic and impactful.
Additional features:
- A robust construction ensures high sound levels can be withstood without loss of quality.
- A professional design that seamlessly integrates with the backdrops of cinemas.
- Improved energy efficiency reduces the need for additional amplifiers.
- Amazing sound quality thanks to original JBL drivers and advanced cooling technologies.
Applications used for the product:
- Medium to large-sized commercial cinemas
- Multi-screen movie theaters
- High-performance acoustic projects such as auditoriums or studios
- Professional audio systems in multiple broadcast and display environments
Summary and final advice:
If you're looking for professional cinema speakers that deliver clear sound, powerful bass, and a flexible design suitable for modern theaters, then this cinema speaker is for you. The JBL 4722/4722N ScreenArray® is your ideal choice.
This headset gives you a combination of clarity, power, and reliability to ensure your audience has an amazing cinematic experience in every sonic detail.
