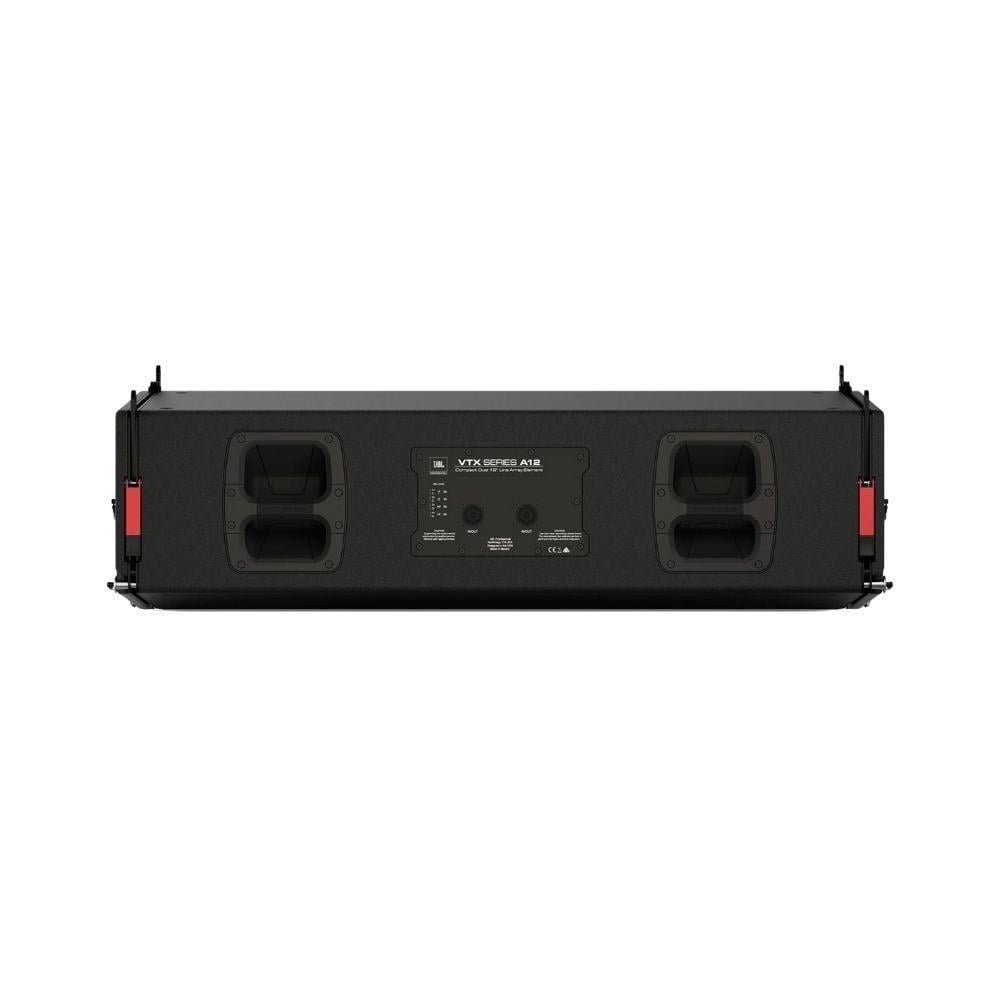

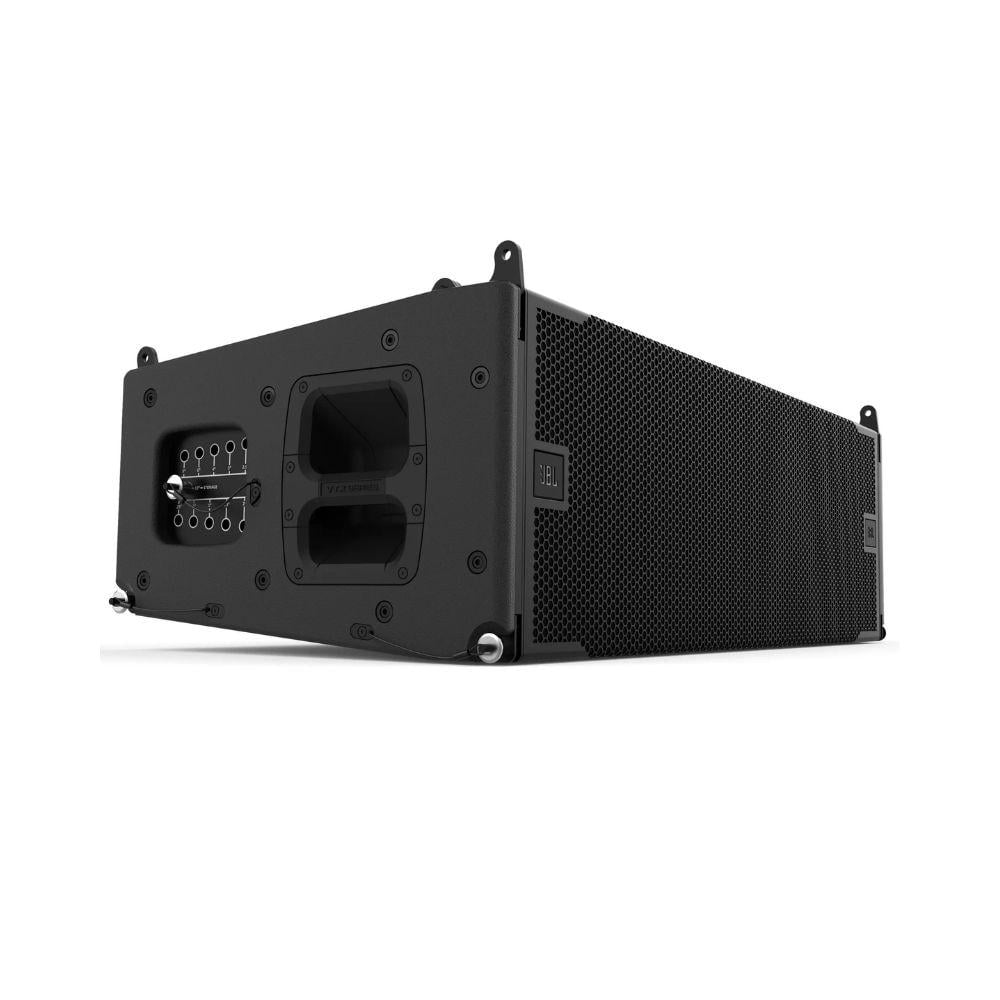

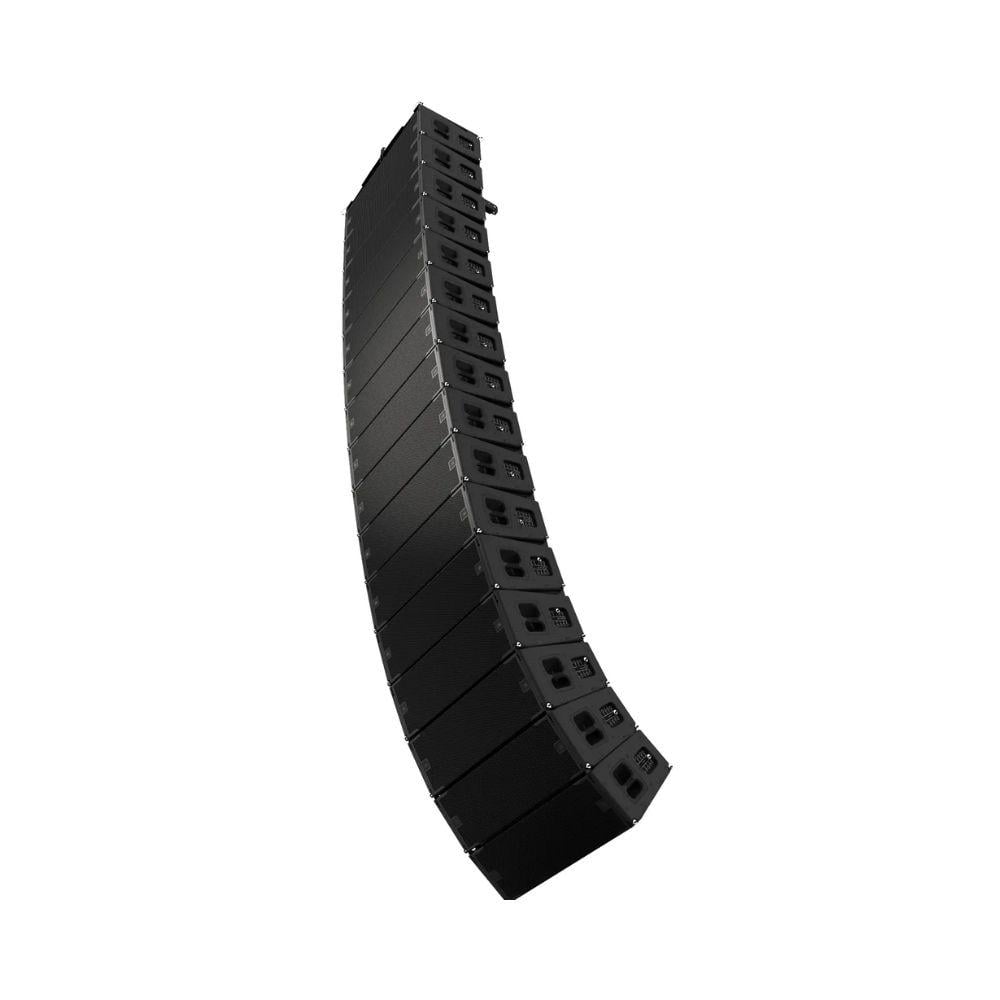

JBL VTX A12 Dual 12-inch Line Array 4000W 90° Coverage Professional Performance Speaker System for Parties and Tours
- The JBL VTX A12 party speaker embodies the next generation of professional Line Array systems that deliver superior audio performance combining power, precision, and ease of installation.
- It was specifically designed to meet the needs of rental companies, sound engineers, and production teams on tours and major shows, thanks to JBL's advanced acoustics and engineering design technologies.
- Large speakers come with a dual 12-inch design that ensures massive, clear sound output across a wide frequency range of 46Hz to 19kHz, with a horizontal coverage angle of up to 90 degrees that allows for uniform sound distribution in all directions.
- Thanks to Differential Drive® and RBI (Radiation Boundary Integrator®) technologies, the headset delivers stunning sound clarity even at the highest sound pressure levels.
Technical description:
- The VTX A12 party speaker is based on JBL’s latest audio components, featuring a combination of advanced LF, MF and HF drivers to deliver balanced and cohesive sound across all frequencies.
- The integrated HF system contains 2-inch compression motors with a dual-helix design to ensure high sensitivity and precise clarity at high frequencies.

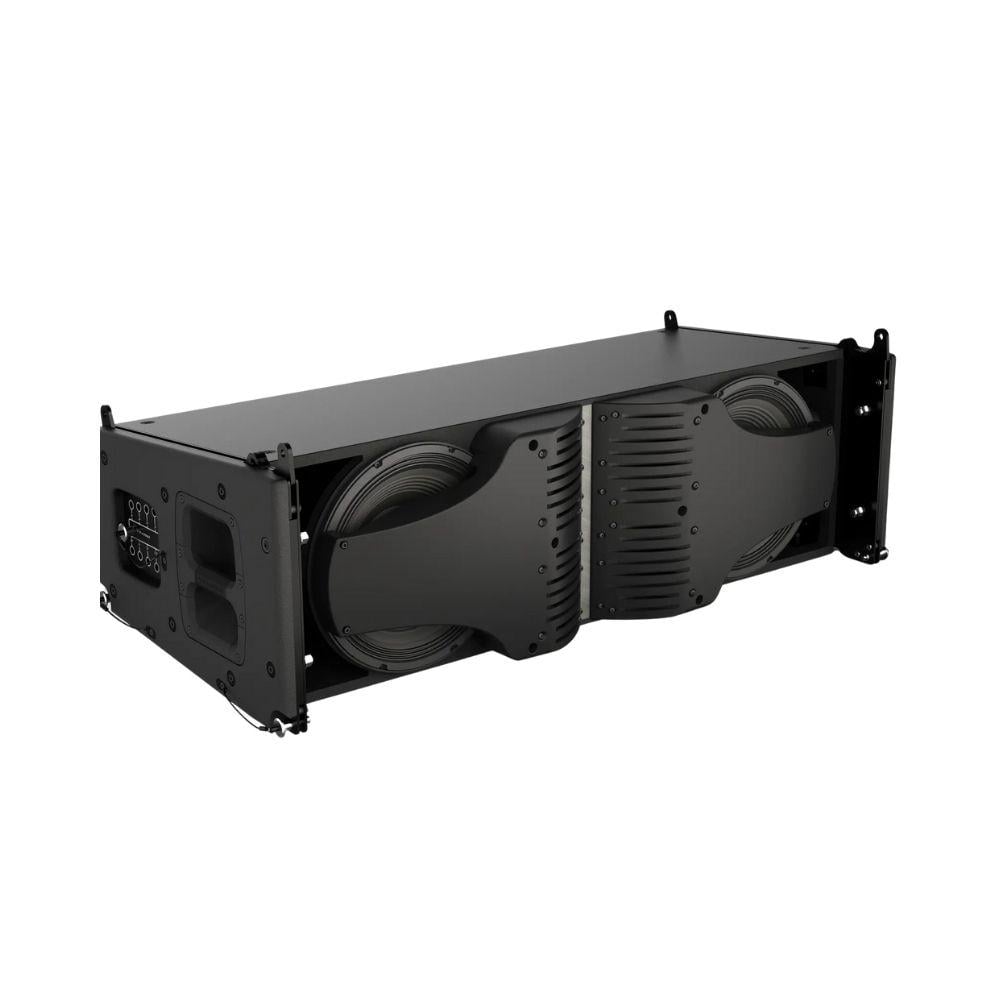

- The LF section relies on two 12-inch Differential Drive® units equipped with dual magnets and two acoustic coils to provide a wide linear range and improved frequency response.

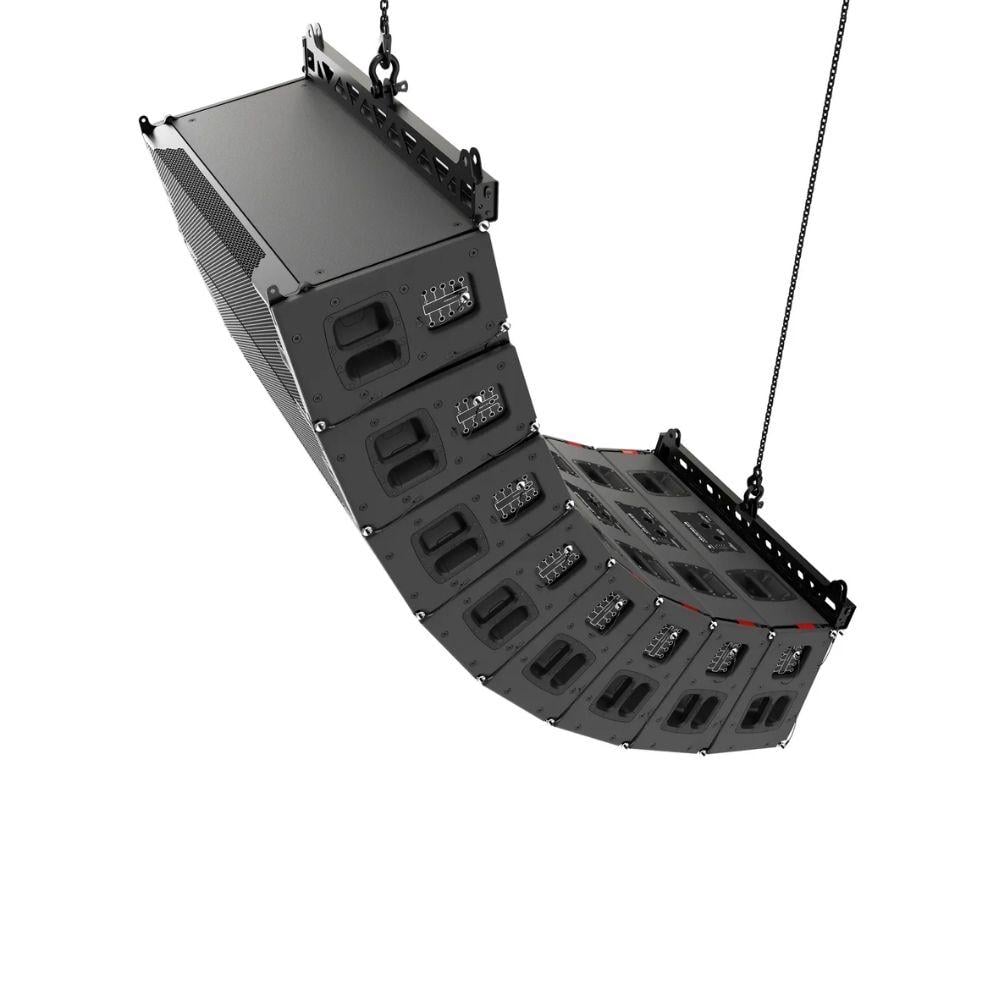

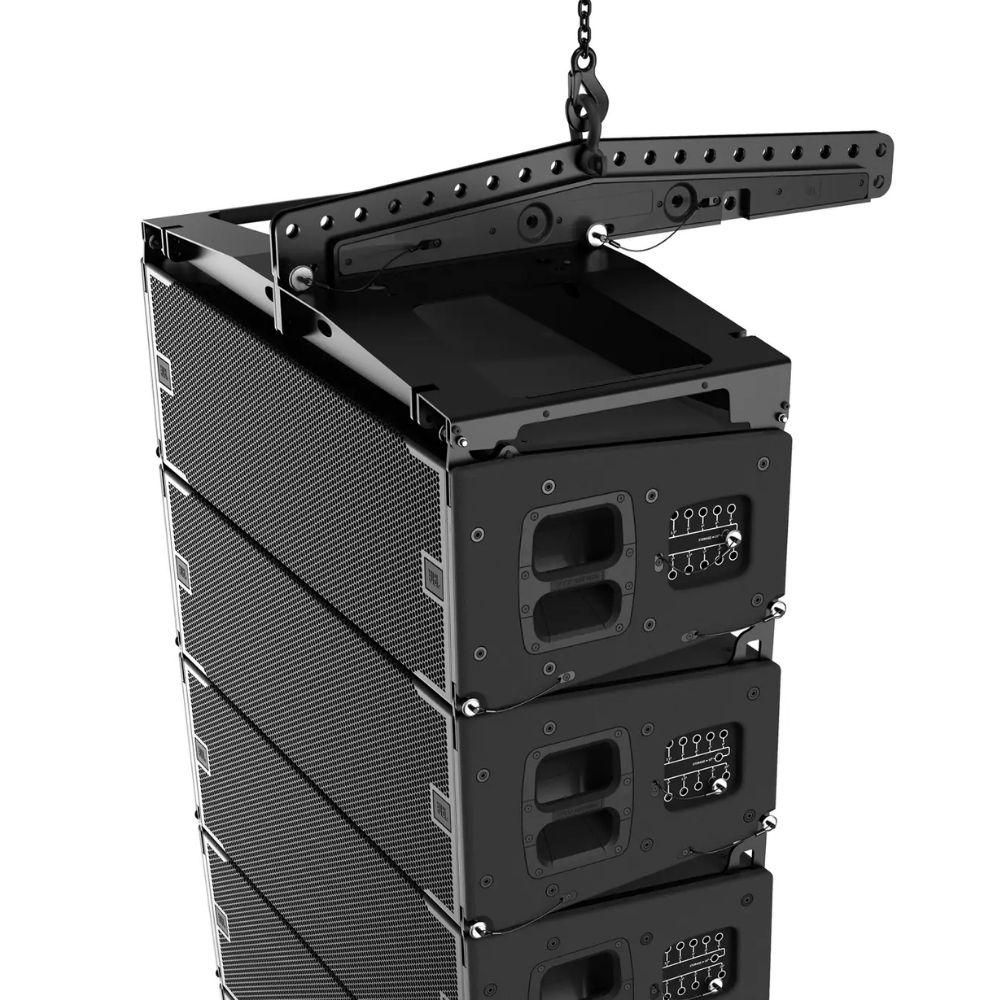

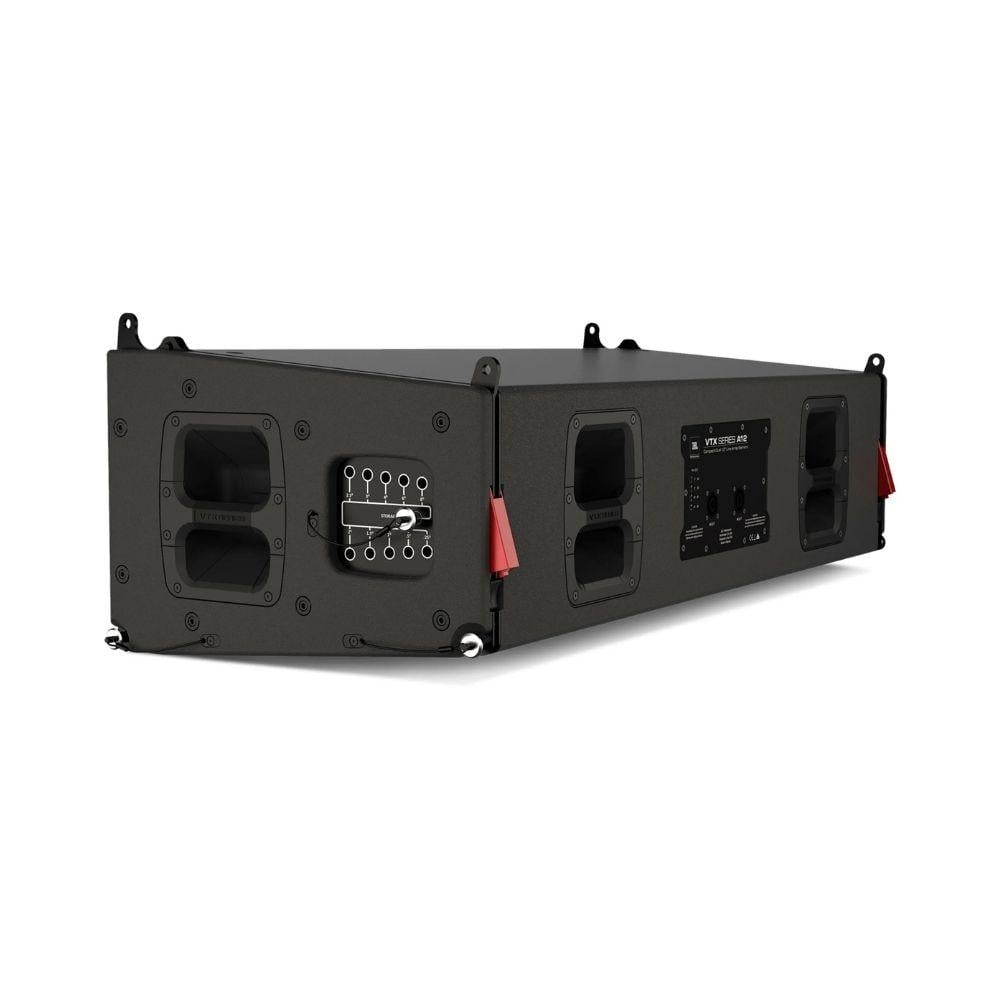

- The speaker comes with an advanced Auto-Locking Rigging System with an automatic mounting mechanism and quick-release screws to facilitate installation during shows or tours.
- The speaker's structure has also been improved to be lighter and more robust thanks to the use of high-quality Finnish birch wood and weather-resistant DuraFlex™ coating.
Technical specifications:
- Type: Professional Dual 12-inch Line Array System – 3-Way Active
- Electrical power: 4000 watts
- Frequency range (-10 dB): 46 Hz – 19 kHz
- Coverage pattern: 90° horizontally (from 250 Hz to 18 kHz)
- Maximum sound pressure level (SPL): 146 dB
- Amplification and processing system: Crown I-Tech HD amplifiers
- Nominal impedance:
- LF: 2 x 8 ohms
- MF: 8 ohms
- HF: 8 ohms
- LF ingredients:
- (2) JBL 2264H – 12-inch – Neodymium – Differential Drive® Technology
- MF components:
- (4) JBL 2165H – 5.5 inch – Neodymium Differential Drive®
- HF components:
- (3) JBL 2423K – 2 inch – Annular diaphragm – Neodymium compression motor
- Material: High-density Finnish birch wood
- Coating: DuraFlex™ Black, scratch and weather resistant
- Suspension system:
- High-quality, corrosion-resistant steel
- Auto-Locking Rigging Mechanism

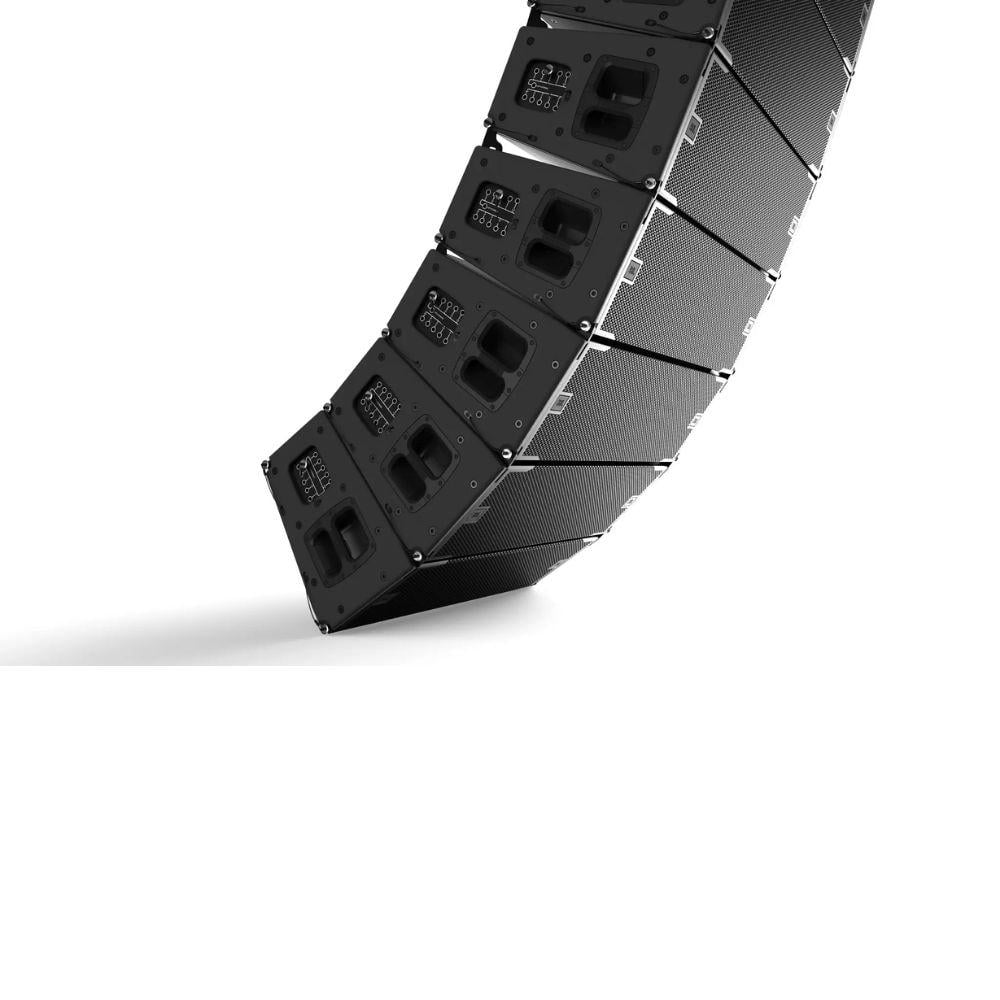

- Angles between speakers: 0.25° – 10°
- Dimensions (height x width x depth):
- 330 × 1118 × 495 mm
- (13 x 44 x 19.5 inches)
- Net weight: 60.8 kg (134 lbs)
Key features:
- Powerful and clear sound with exceptional accuracy thanks to the integrated three-way system.
- Dual-coil Differential Drive® technology to reduce distortion and improve heat dissipation.
- A quick and secure suspension system reduces setup time at parties and tours.
- Lightweight and durable design with a custom-built structure to reduce vibrations and improve performance.
- 90° horizontal sound coverage ensures even sound distribution in all directions.
- New internal components from JBL deliver the best sound output relative to weight.
- DuraFlex™ coating is resistant to external factors to maintain appearance and performance in all conditions.
- Full integration with JBL Performance Manager™, Array Link and LAC3 software for advanced audio control.
Product summary:
- The JBL VTX A12 large speakers are an ideal choice for professional engineers looking for superior audio performance on tours and live shows.
- The speaker combines power, precision, and ease of operation, making it a complete solution for large audio systems.
- Thanks to its high power and smart design, the A12 delivers consistent sound in open-air theaters, large halls, and music festivals without any loss of quality or detail.
Additional features:
- Compatible with JBL VTX B28 and S28 systems for increased bass range and lower coverage.

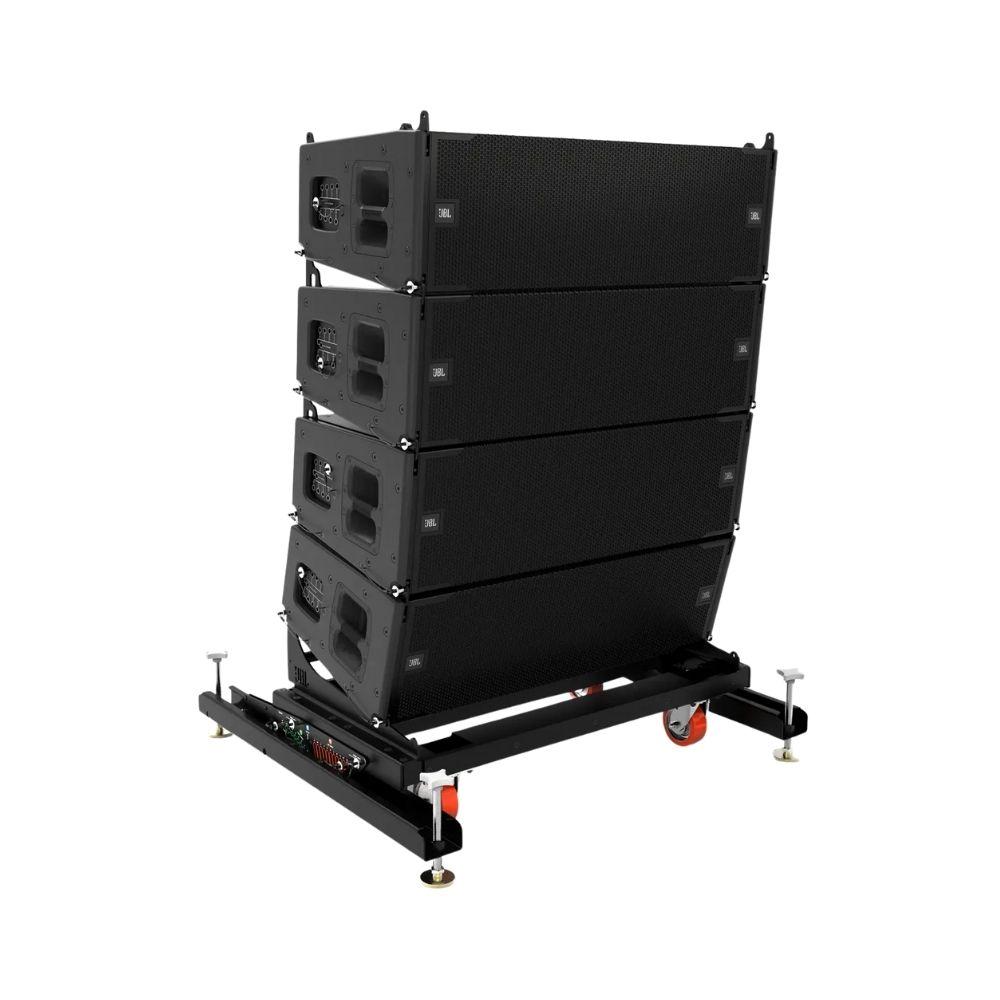

- The possibility of suspended or floor installation with dedicated mounting hardware.
- Advanced engineering design ensures maximum space utilization and reduced overall weight.
- Cardioid settings are supported to reduce background noise.

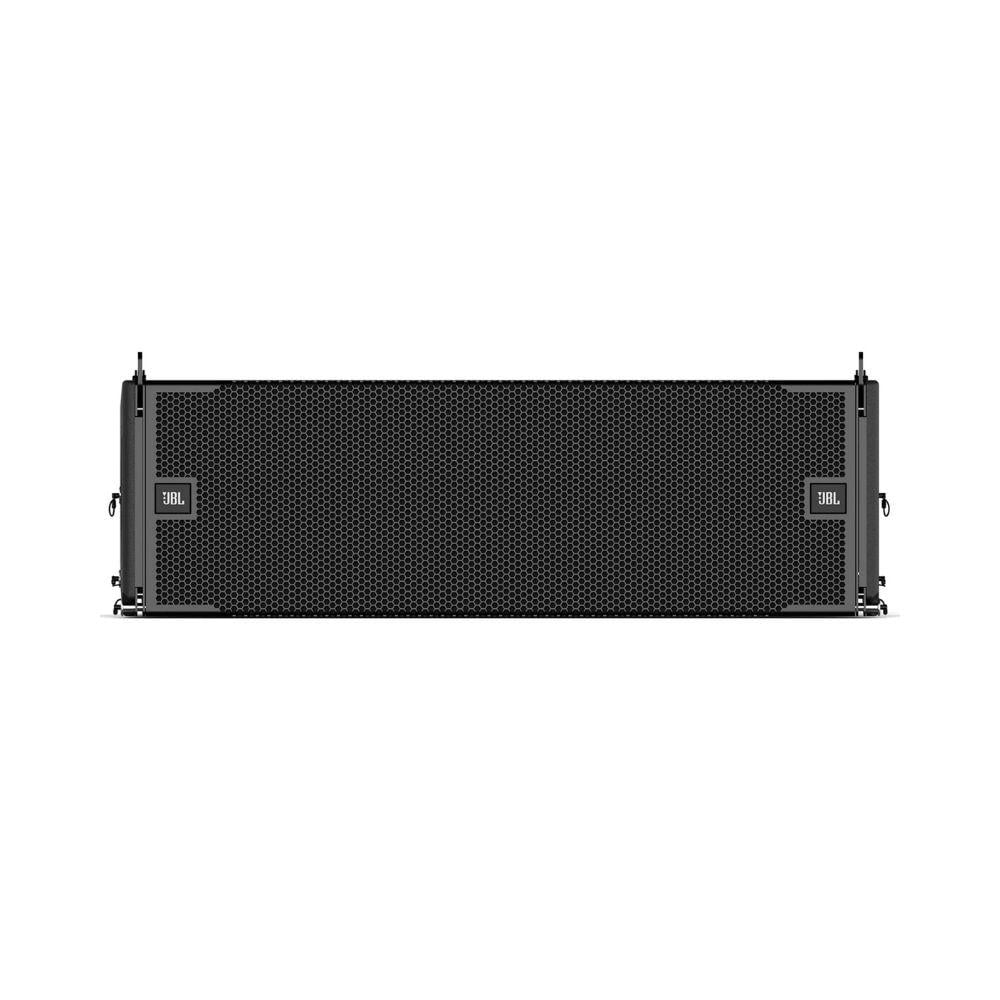

- Equipped with a full front mesh for protection against moisture and dust.
Applications used for the product:
- Big concert tours and live performances.
- Theaters and huge outdoor events.
- Multipurpose halls and exhibition spaces.
- Fixed sound systems in cultural and artistic centers.
- Professional audio system rental companies.
Summary and final advice:
- If you are looking for a 4000-watt dual 12-inch Line Array party speaker system that delivers world-class professional performance, the JBL VTX A12 big speakers are your ideal choice.
- The speaker offers a unique combination of power, precision, and ease of use with a durable design and advanced audio components.
Detailed product data (Data Sheet).
